Vertical Cable Optical Fiber Rack-Mount Enclosure, Standard-Series, LGX, 6-Position, 2 RMU

VERTICAL CABLE 267-RES01-1F2 – OPTICAL FIBER RACK-MOUNT ENCLOSURE | STANDARD SERIES | SIX POSITION | 2 RMU

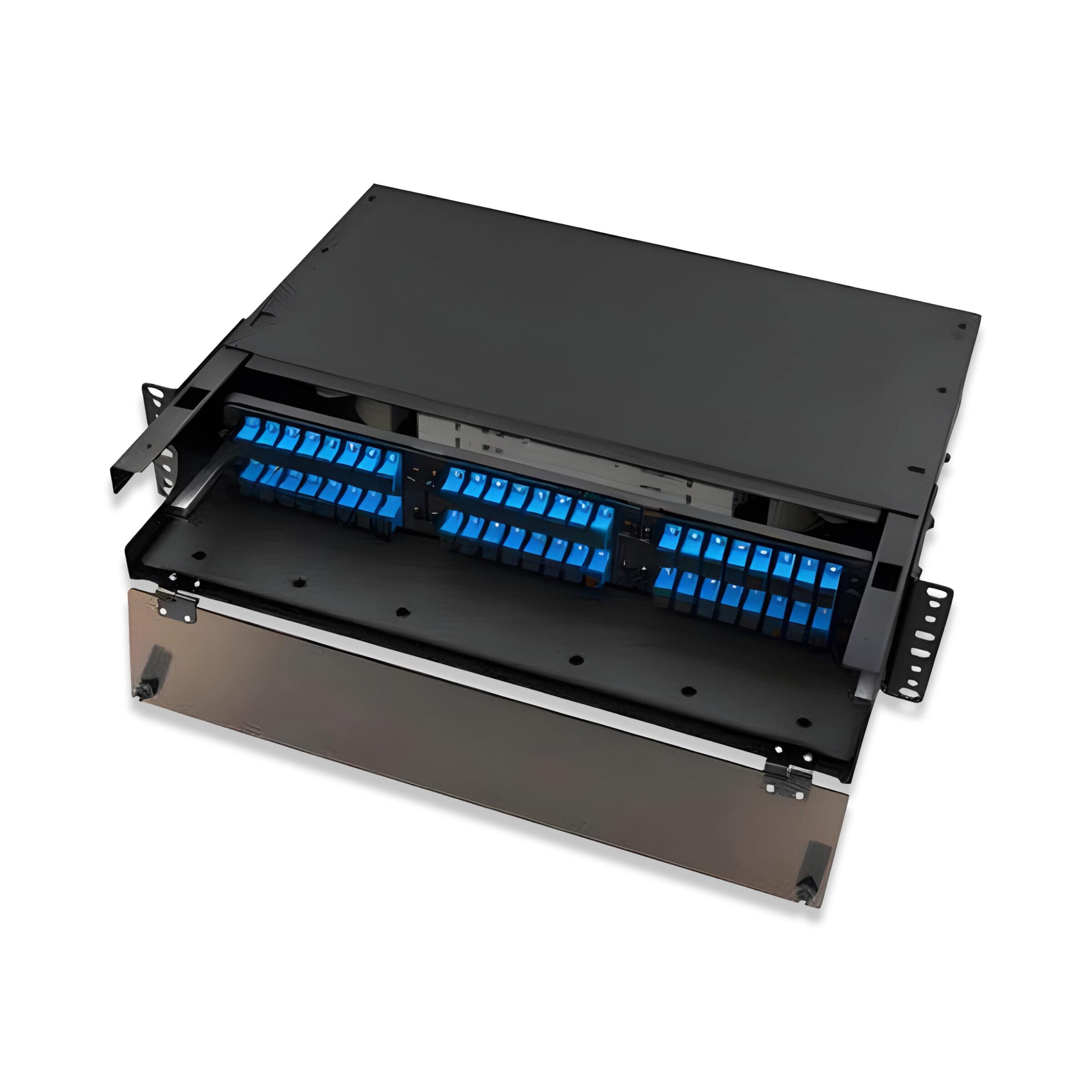

The 267-RES01-1F2 is a high-capacity optical fiber rack-mount enclosure engineered for demanding fiber termination and distribution applications. This 2 RMU enclosure accommodates up to six LGX adapter plates, supporting up to 144 optical fibers in a space-efficient design. With front and rear access via a retractable stage, durable 16-GA steel construction, and a black powder-coated finish, this enclosure is built for professional data center and enterprise environments.

KEY FEATURES

Here’s what makes the 267-RES01-1F2 a dependable solution for high-density fiber infrastructure:

• 2 RMU Form Factor: Fits standard 19 in. racks per EIA-ECA-310-E mounting specifications.

• Six-Position LGX Capacity: Holds up to six LGX adapter plates supporting up to 144 optical fibers.

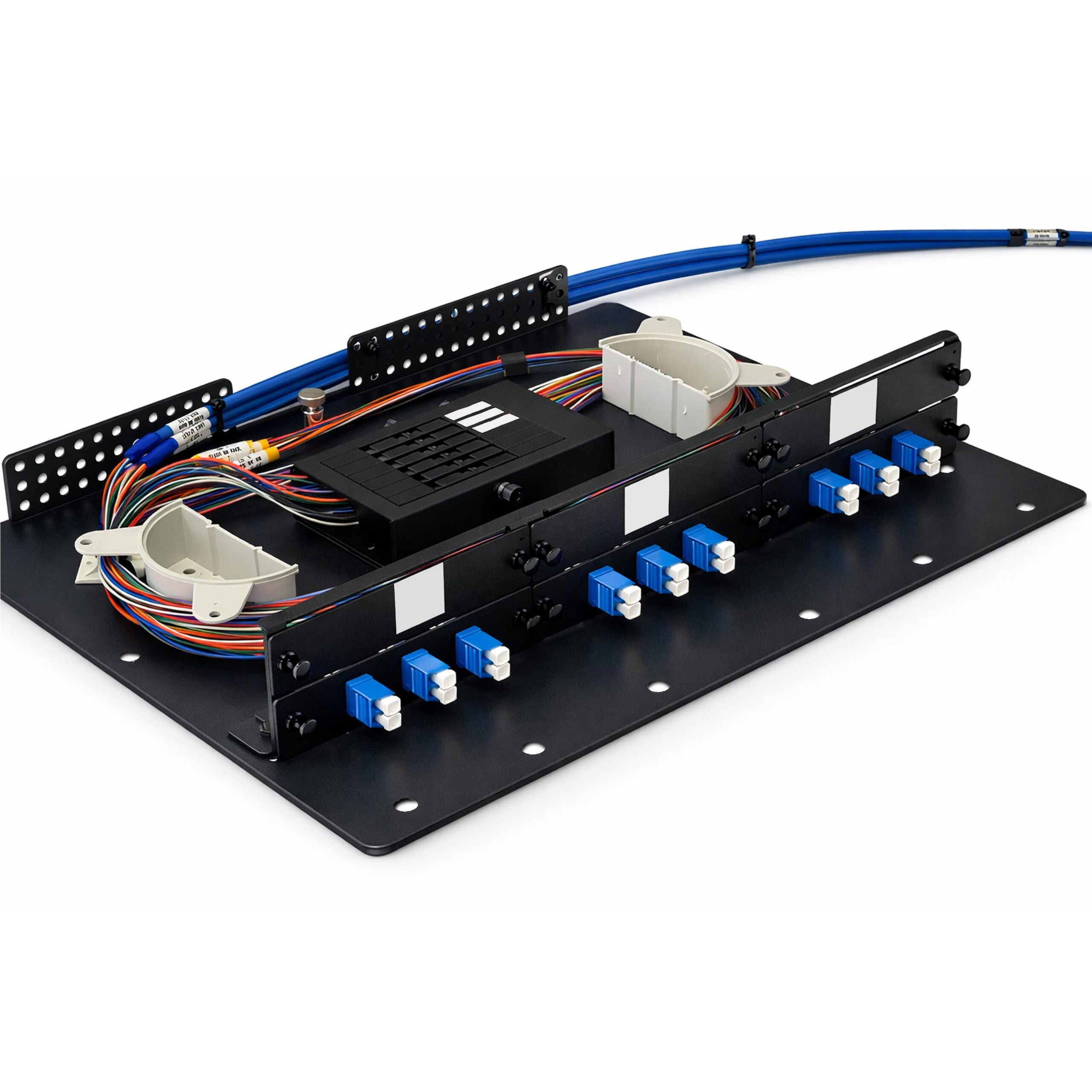

• Front and Rear Access: Retractable stage provides convenient access from both sides for easier terminations and maintenance.

• Dual-Door Design: Clear plastic hinged front door for visibility; metal hinged rear door for protection—both removable.

• Removable Covers: Front and rear covers detach via screw joints for full access during installation.

• Durable Steel Construction: Built from 0.06 in. (1.5 mm) 16-GA steel with black powder-coated finish.

• Comprehensive Cable Management: Grommeted entry points, perforated cable anchor plates, strength element anchor points, and included cable ties and self-gripping tie wraps.

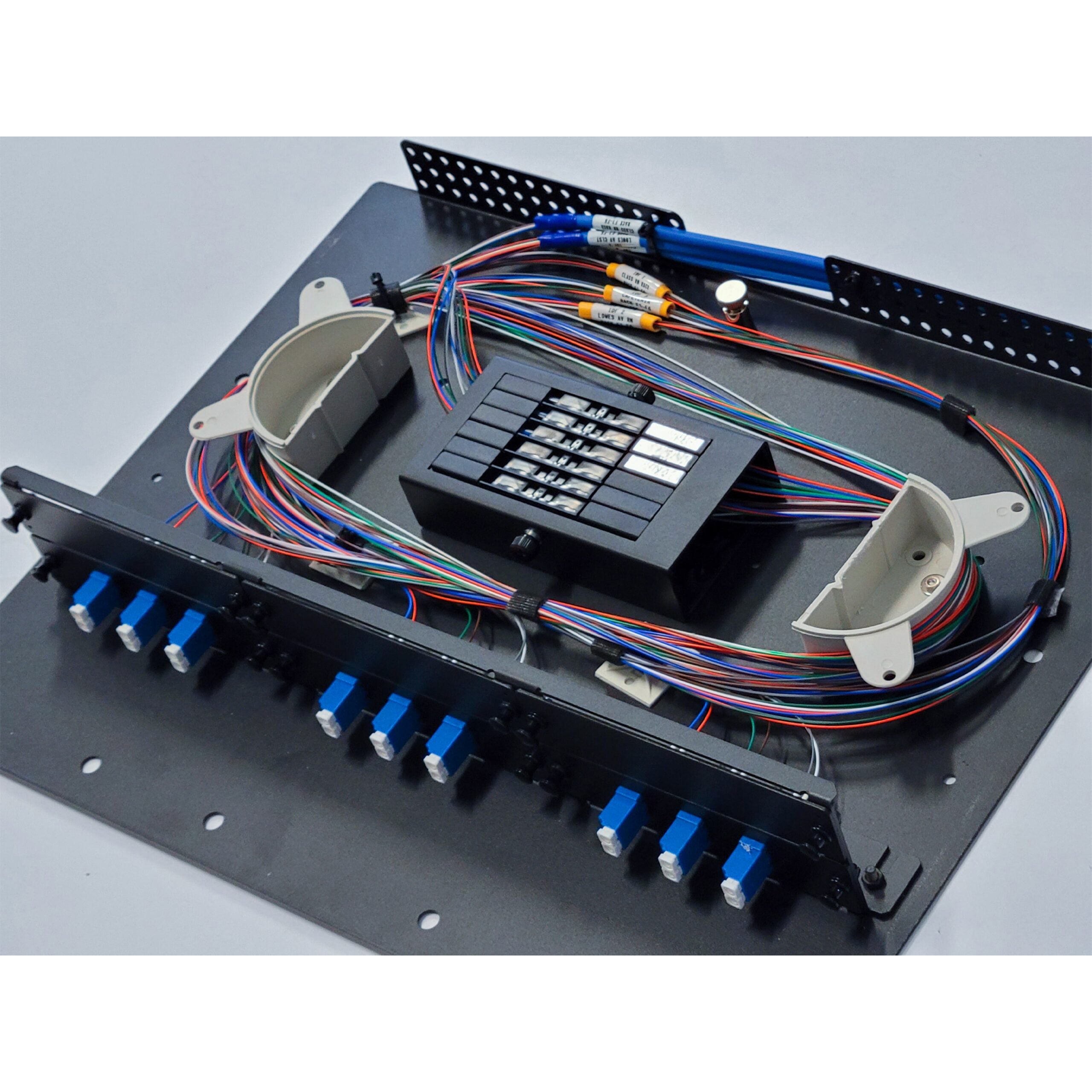

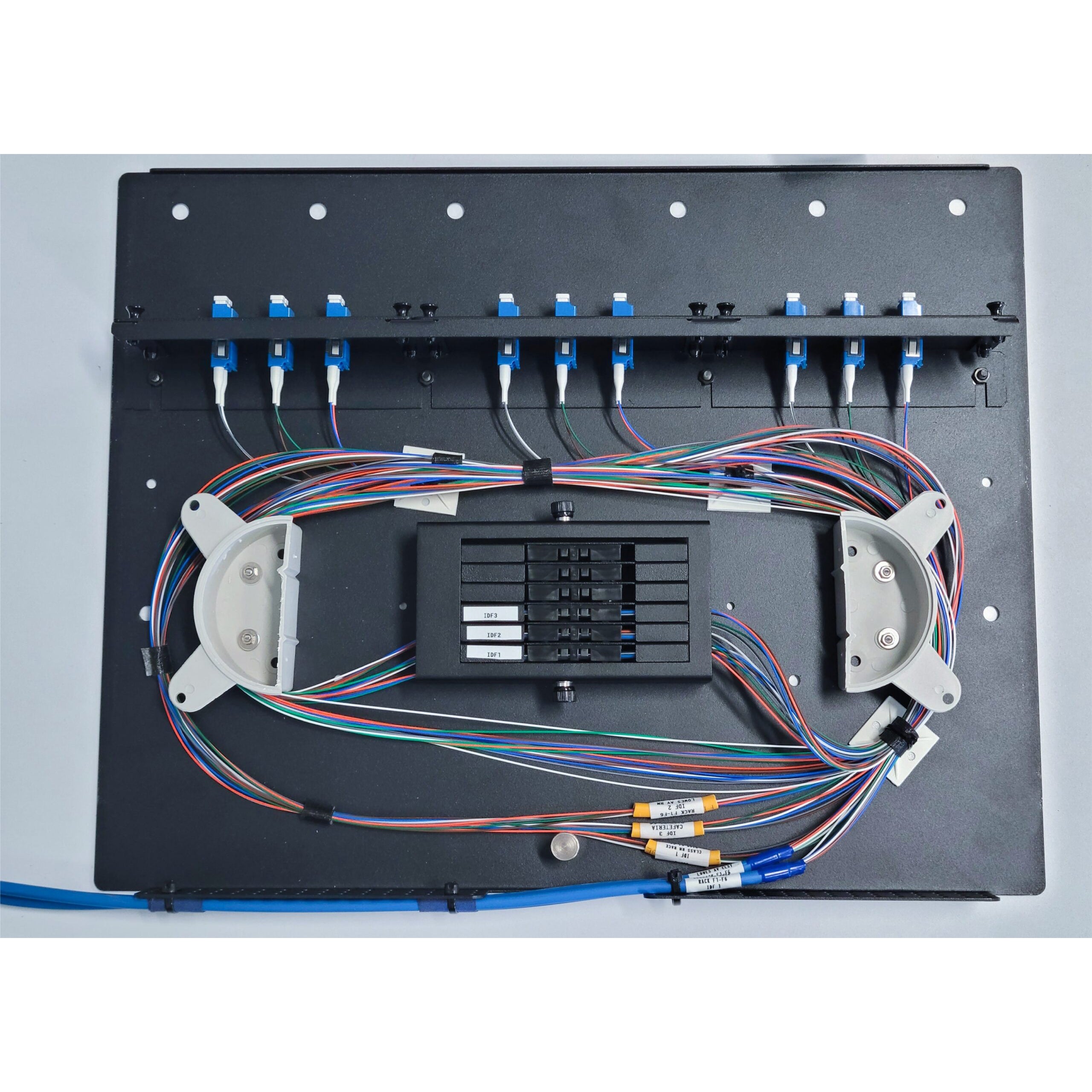

• Fiber Management Tools: Integrated spools and rings maintain proper bend radius for delicate fibers.

• Splice Tray Support: Accommodates up to six 24-fiber splice trays.

• Wide Operating Range: Performs reliably from -20°C to +70°C (-4°F to +158°F) in up to 95% RH non-condensing environments.

APPLICATIONS

The 267-RES01-1F2 enclosure excels in environments requiring high-density, organized fiber terminations:

• Data Centers: Centralize high-fiber-count connections for server-to-switch and backbone infrastructure.

• Enterprise IT Rooms: Manage fiber runs between floors, buildings, or network segments at scale.

• Telecom Rooms: Support carrier-grade fiber distribution for voice and data services.

• Broadcast & A/V Facilities: Protect fiber cabling for high-bandwidth video and audio transmission.

• Industrial Networks: House fiber connections in manufacturing and automation environments.

COMPATIBLE VERTICAL CABLE PRODUCTS

This optical fiber rack-mount enclosure is designed for use with:

• 2265-CAS01-1B200 (Compact Cassettes)

• 265-CAS01-2B200 (Standard Cassettes)

• 265-CAS10-F06A2

• 264-LAP Series LGX Adapter Plates

WHY CHOOSE THE 267-RES01-1F2 RACK-MOUNT ENCLOSURE?

Professionals choose the 267-RES01-1F2 because it delivers maximum fiber density with accessible, well-organized management. Here are 5 reasons to include it in your next fiber installation:

1. Maximum Fiber Density – Terminate up to 144 fibers in just 2 RMU of rack space with six LGX adapter plate positions.

2. Full Accessibility – Front and rear access with retractable stage simplifies terminations, splicing, and ongoing maintenance.

3. Built for Protection – Heavy-gauge steel construction and hinged doors safeguard fiber connections from physical damage.

4. Integrated Cable Management – Grommeted entry points, anchor plates, and included tie wraps keep cables organized from entry to termination.

5. Fiber-Safe Design – Spools, rings, and proper routing paths maintain bend radius to protect signal integrity.

WHAT’S NEXT?

Once you’ve installed the 267-RES01-1F2:

• Add LGX Adapter Plates – Populate with 264-LAP Series plates to match your connector requirements.

• Install Splice Trays – Add up to six 24-fiber splice trays for fusion or mechanical splicing.

• Label Your Fibers – Identify each connection for faster troubleshooting and maintenance.

• Pair with Cassettes – Use Vertical Cable compact or standard cassettes for plug-and-play fiber connectivity.
