Vertical Cable Optical Fiber Wall-Mount Enclosure, Standard-Series, Single-Door, LGX, Two-Position, Latch

VERTICAL CABLE 268-STD01-1B1 – OPTICAL FIBER WALL-MOUNT ENCLOSURE, SINGLE-DOOR, LGX, TWO-POSITION

The 268-STD01-1B1 is a compact optical fiber wall-mount enclosure designed for environments where rack space is unavailable or surface mounting is preferred. This single-door enclosure holds up to two LGX adapter plates, supporting up to 48 optical fibers in a slim, low-profile design. Built from durable 16-GA cold-rolled steel with a black powder-coated finish, this wall-mount enclosure delivers professional fiber termination and protection for smaller-scale deployments.

KEY FEATURES

Here’s what makes the 268-STD01-1B1 a dependable solution for wall-mounted fiber infrastructure:

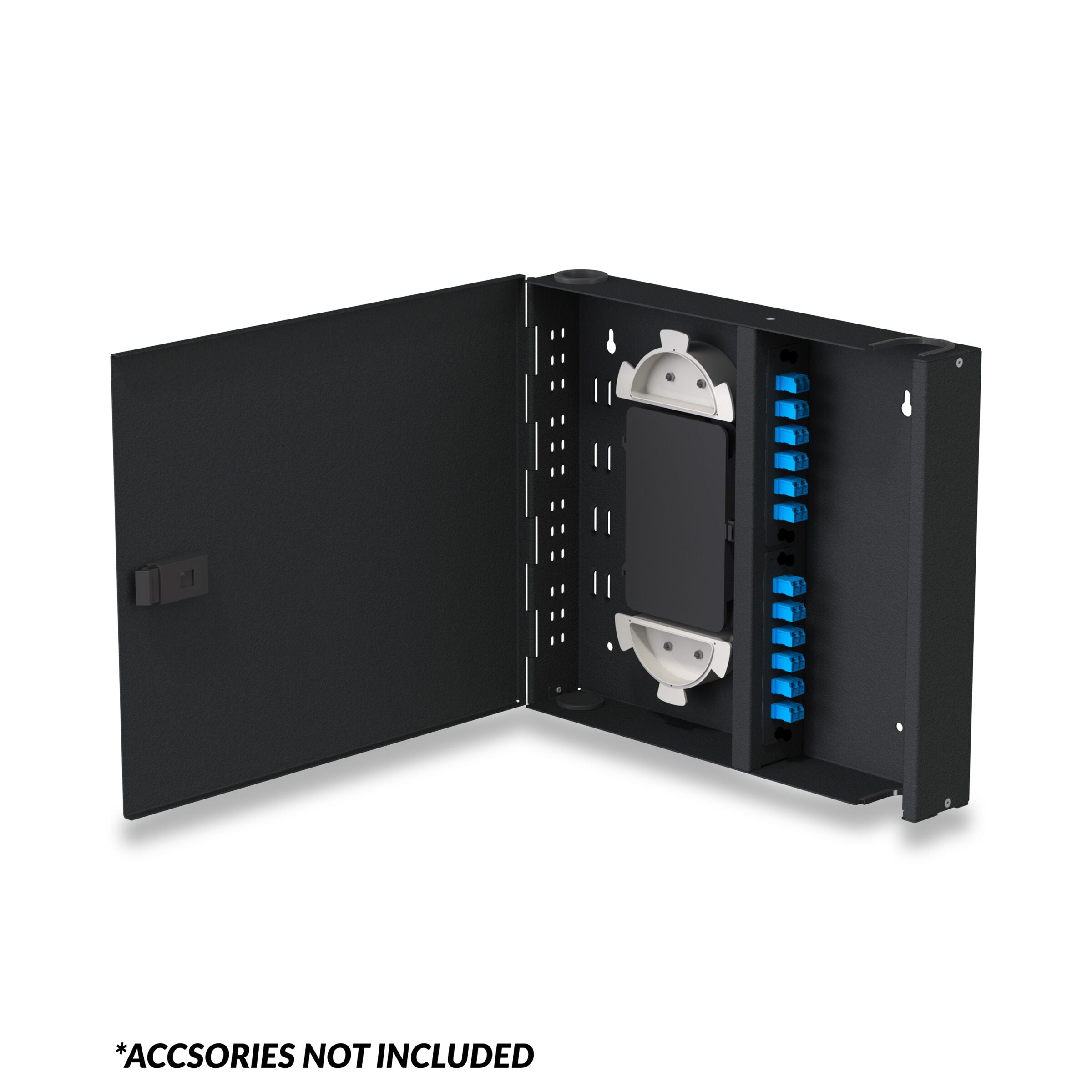

• Two-Position LGX Capacity: Holds up to two LGX adapter plates supporting up to 48 optical fibers.

• Surface/Wall Mount Design: Installs directly to walls or other surfaces without requiring rack infrastructure.

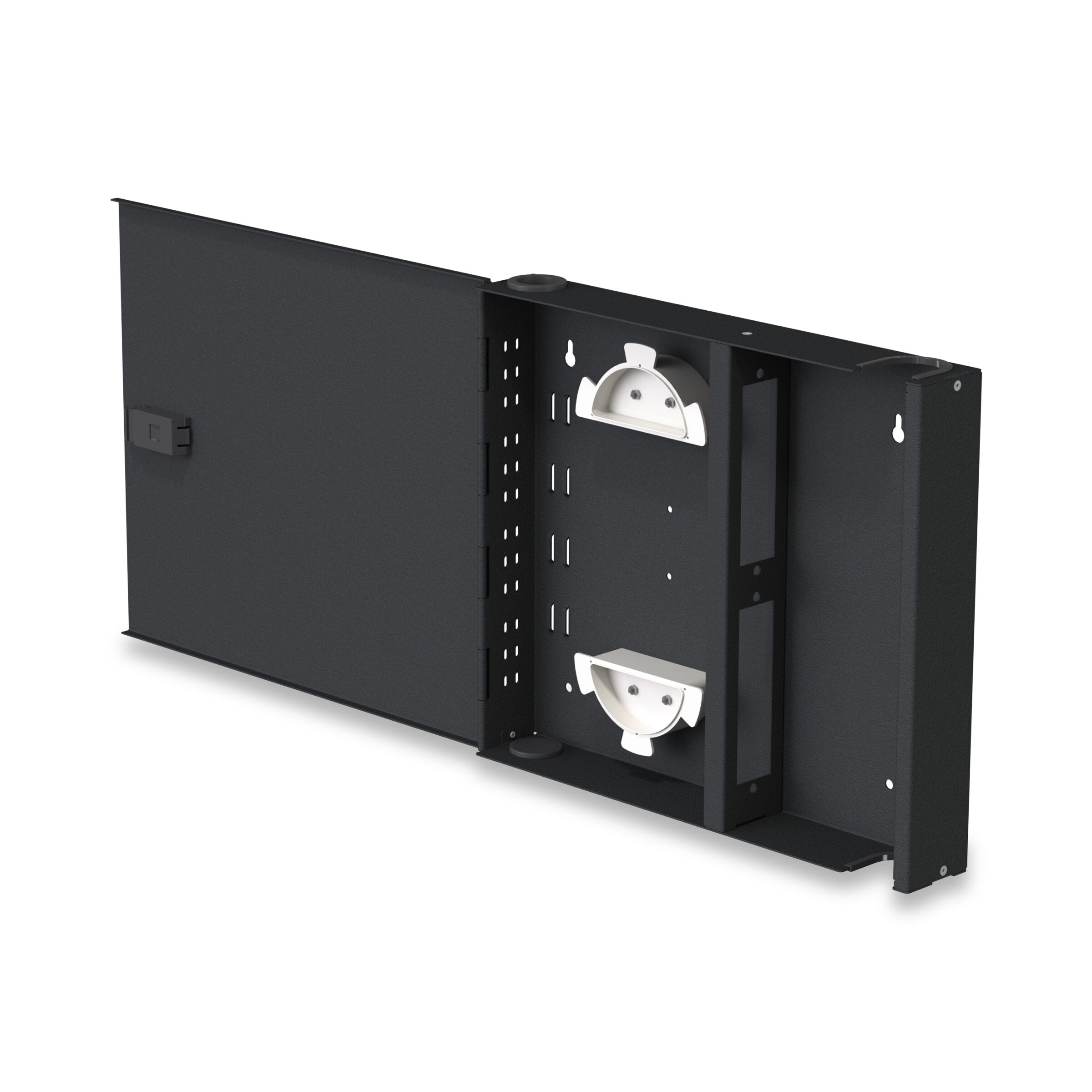

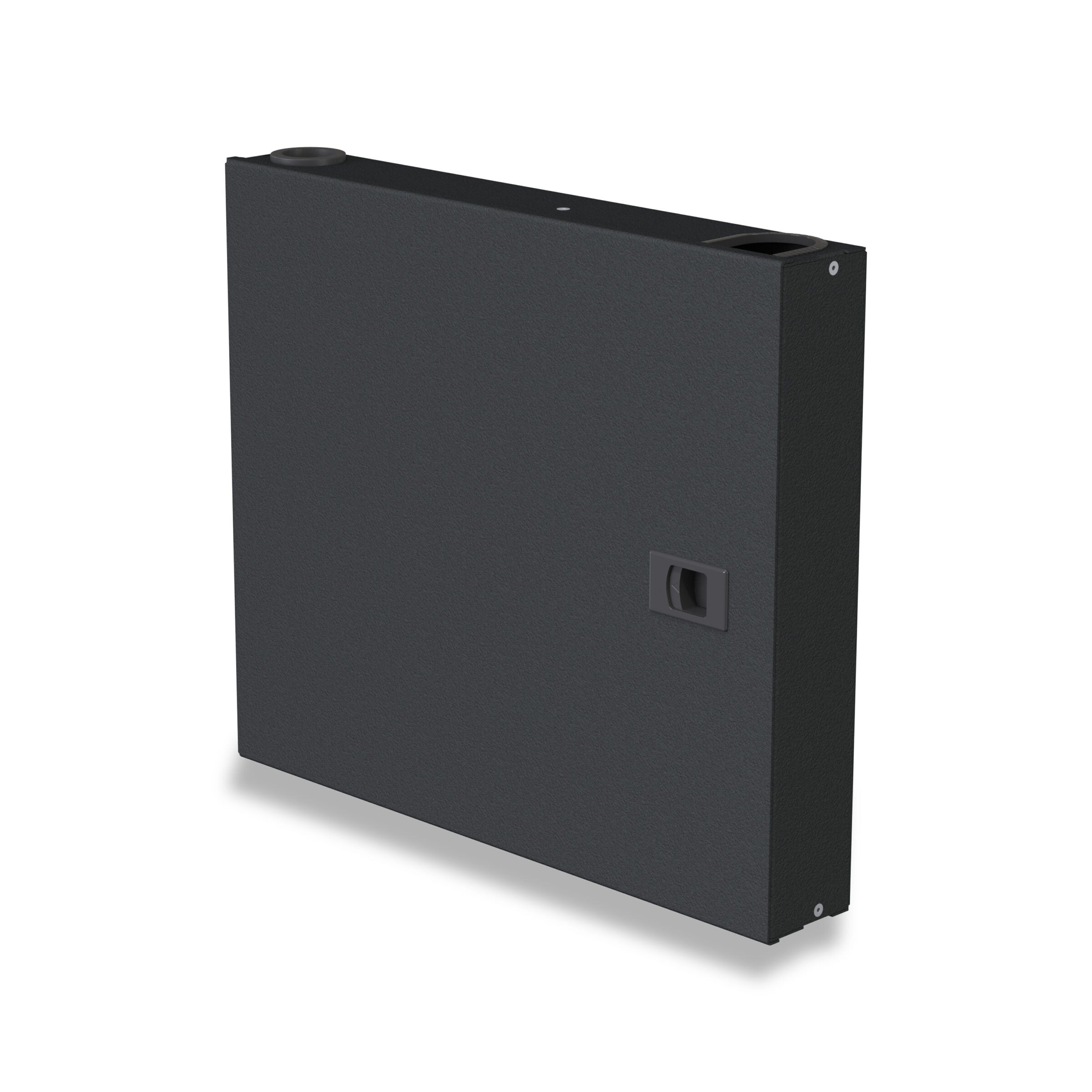

• Single-Door Access: Side-opening door with latch lock provides secure, convenient access to fiber connections.

• Durable Steel Construction: Built from 0.06 in. (1.5 mm) 16-GA cold-rolled steel with black powder-coated finish.

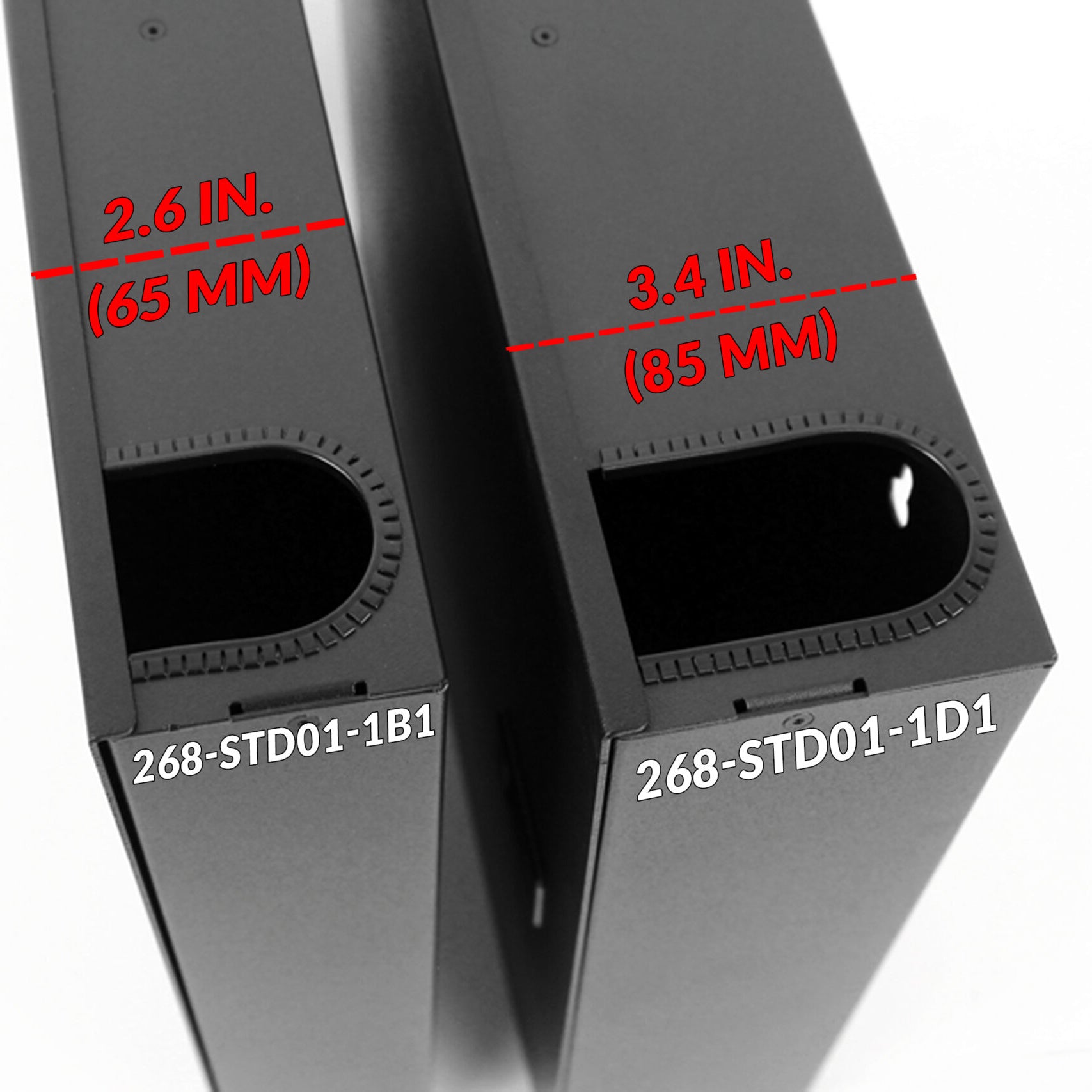

• Compact Profile: Measures just 11.8 in. × 13.8 in. × 2.6 in. (300 mm × 350 mm × 65 mm) for minimal wall footprint.

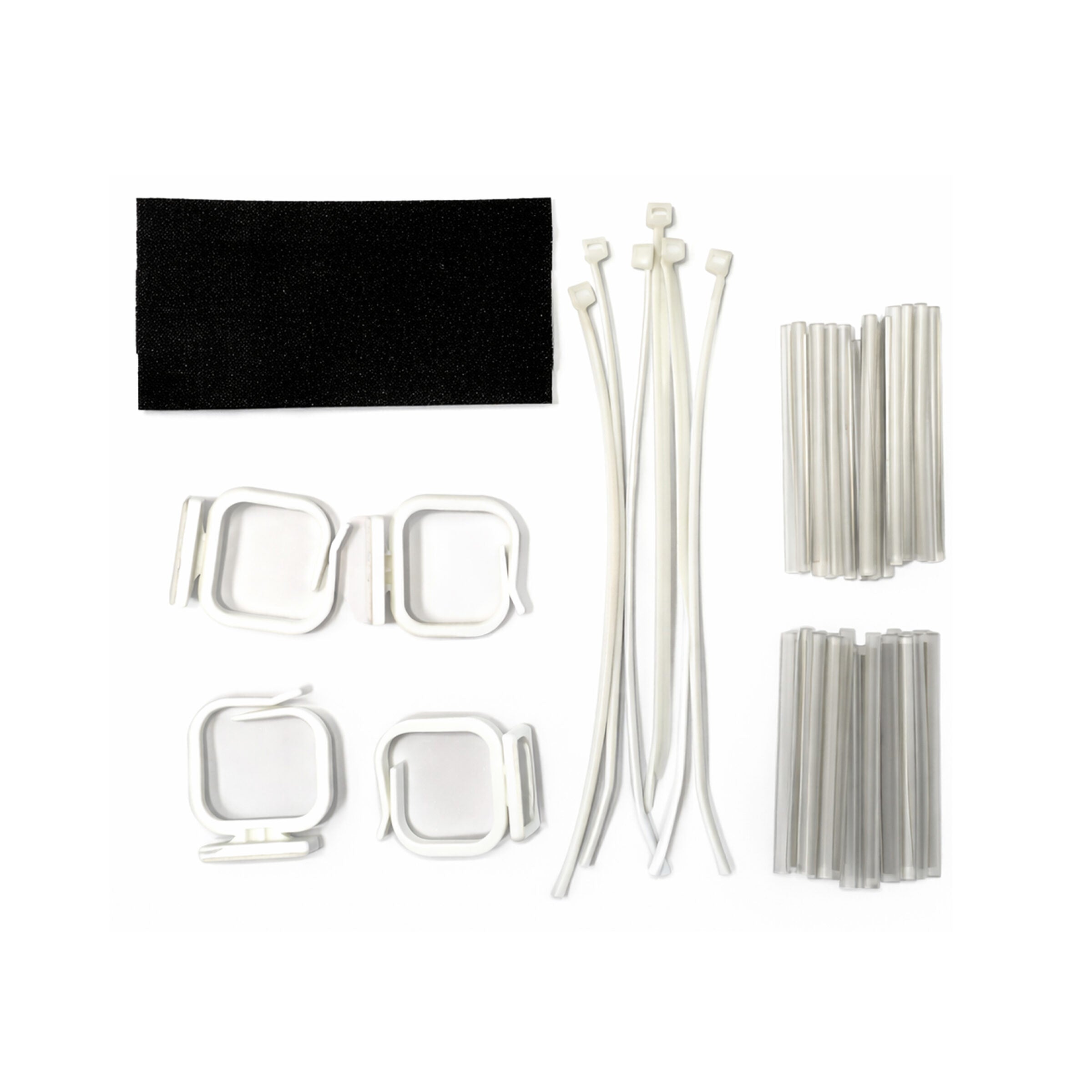

• Comprehensive Cable Management: Grommeted entry points, perforated cable anchor plates, strength element anchor points, and included cable ties and self-gripping tie wraps.

• Fiber Management Tools: Integrated spools and rings maintain proper bend radius for delicate fibers.

• Splice Tray Support: Accommodates up to two 24-fiber splice trays.

• Lightweight Design: Weighs only 3 lb. (1.36 kg) for easy mounting.

• Wide Operating Range: Performs reliably from -20°C to +70°C (-4°F to +158°F) in up to 95% RH non-condensing environments.

APPLICATIONS

The 268-STD01-1B1wall-mount enclosure excels in environments requiring compact, accessible fiber termination:

• Small Office Networks: Terminate fiber runs in spaces without dedicated network closets.

• Remote Telecom Sites: Protect fiber connections at cell towers, utility substations, or roadside cabinets.

• Retail Locations: Support point-of-sale and back-office fiber connectivity.

• Educational Facilities: Manage fiber distribution in classrooms, labs, or administrative areas.

• Residential Installations: Provide fiber termination for FTTH (fiber-to-the-home) deployments.

COMPATIBLE VERTICAL CABLE PRODUCTS

This optical fiber wall-mount enclosure is designed for use with:

• 265-CAS01-1B200 (Compact Cassettes)

• 265-CAS01-2B200 (Standard Cassettes)

• 264-LAP Series LGX Adapter Plates

WHY CHOOSE THE 268-STD01-1B1 OPTICAL FIBER WALL-MOUNT ENCLOSURE?

Professionals choose the 268-STD01-1B1 because it delivers reliable fiber protection in a space-saving wall-mount format. Here are 5 reasons to include it in your next fiber installation:

1. Space-Efficient Design – Compact wall-mount form factor eliminates the need for rack infrastructure in smaller deployments.

2. Secure Access – Single-door design with latch lock protects fiber connections while allowing convenient maintenance access.

3. Built for Durability – Heavy-gauge cold-rolled steel construction stands up to demanding commercial and industrial environments.

4. Integrated Cable Management – Grommeted entry points, anchor plates, and included tie wraps keep cables organized from entry to termination.

5. Fiber-Safe Design – Spools, rings, and proper routing paths maintain bend radius to protect signal integrity.

WHAT’S NEXT?

Once you’ve installed the 268-STD01-1B1:

• Add LGX Adapter Plates – Populate with 264-LAP Series plates to match your connector requirements.

• Install Splice Trays – Add up to two 24-fiber splice trays for fusion or mechanical splicing.

• Label Your Fibers – Identify each connection for faster troubleshooting and maintenance.

• Pair with Cassettes – Use Vertical Cable compact or standard cassettes for plug-and-play fiber connectivity.
