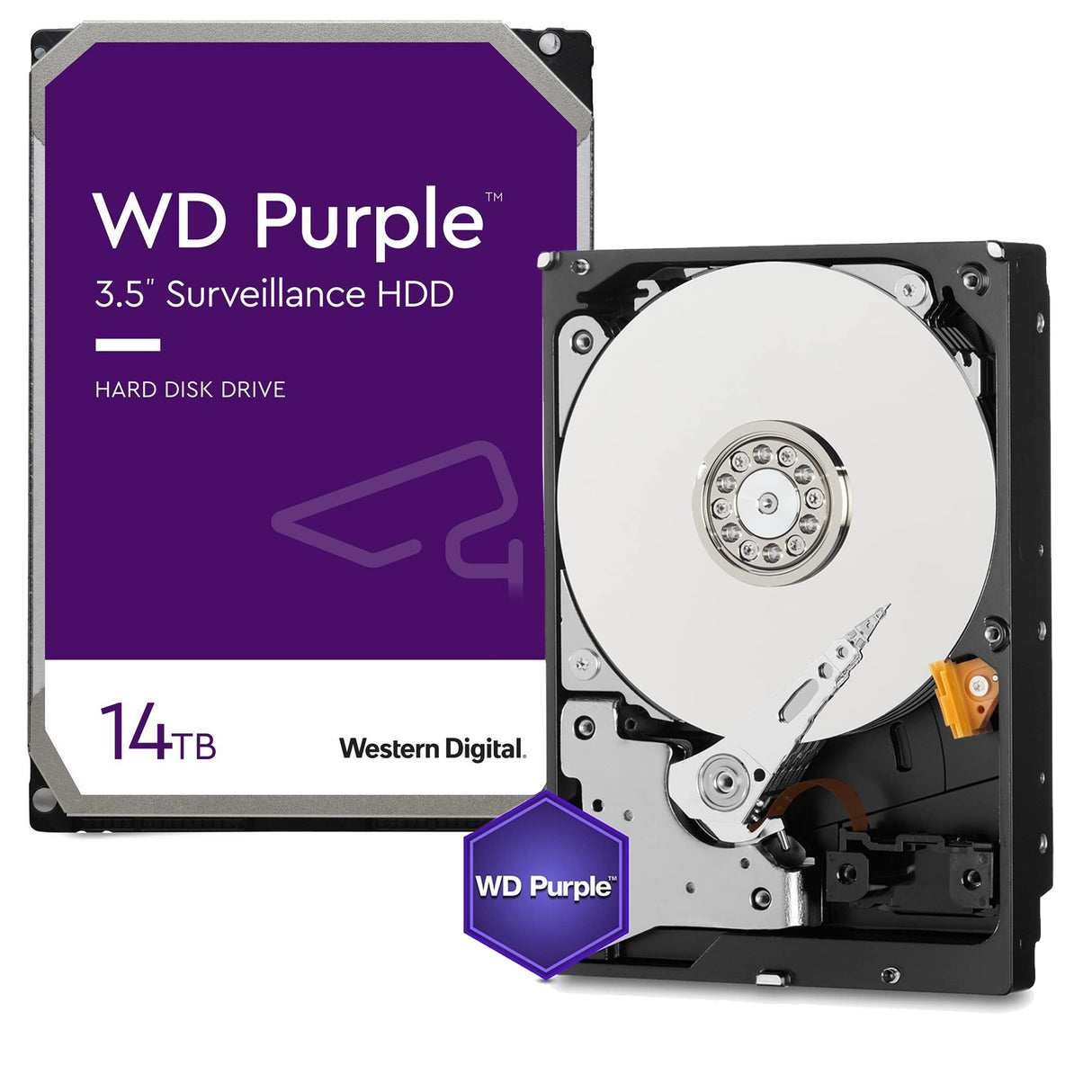

Western Digital 14TB Purple Surveillance Hard Disk Drive
MPN: HD14TBWDP
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Western Digital 14TB Purple Surveillance Hard Disk Drive is backordered and will ship as soon as it is back in stock.
Description
Description
- 14TB Storage Capacity
- 3.5" Form Factor
- SATA III 6 Gb/s Interface
- 512MB Cache
- 7200 rpm
- Data Transfers up to 265 MB/s
- 600,000 Load/Unload Cycles
- 550TB per Year Workload Rating
- Designed for 24/7 Surveillance
- Supports up to 64 HD Cameras
Features

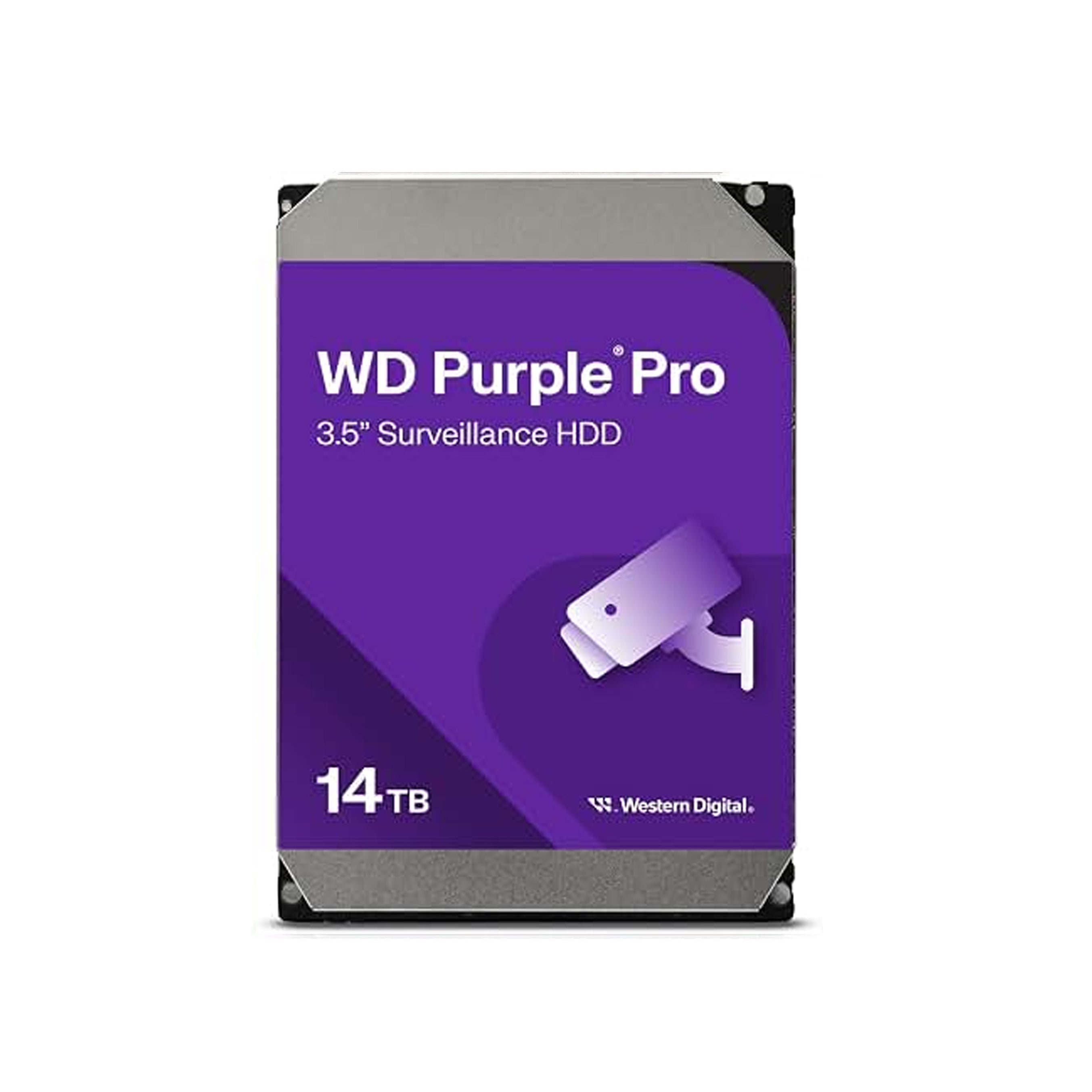

The 14TB Purple Pro 7200 rpm SATA III 3.5" Internal Surveillance Hard Drive from WD is designed for high-end AI-enabled recorders, video analytics appliances, deep-learning servers and cloud solutions that can benefit from high-capacity storage with high performance and additional workload capability.
With support for up to 64 high-definition surveillance cameras, this 8TB hard drive features AllFrame AI technology, which helps reduce frame loss, improve video playback, enables the recording of multiple streams per camera, and supports up to 32 AI streams per drive for deep learning analytics within the system.
- 14TB capacity
- Enterprise class reliability and performance
- 550TB per year workload rating
- Up to 2.5 million hour Mean Time Between Failure (MTBF)
- Innovating AllFrame technology helps reduce dropped frames
- Western Digital Device Analytics (WDDA) proactive health management
Specifications
|
Total Capacity
|
14 TB
|
|
Drive Type
|
SATA III / 3.5" HDD (7200 rpm)
|
|
Read Speed
|
Maximum: 265 MB/s
|
|
Write Speed
|
Maximum: 265 MB/s
|
|
Total Capacity
|
14 TB
|
|
Drive Type
|
SATA III / 3.5" HDD (7200 rpm)
|
|
Read Speed
|
Maximum: 265 MB/s
|
|
Write Speed
|
Maximum: 265 MB/s
|
|
Encryption Support
|
No
|
|
Mean Time Between Failures (MTBF)
|
2.0 Million Hours
|
|
Endurance (Total Bytes Written)
|
550 TB
|
|
Power Draw
|
6.6 W (Active)
5.7 W (Idle) 0.9 W (Standby) |
|
Operating Conditions
|
32 to 149°F / 0 to 65°C
|
|
Operating Shock
|
50 G / 2.0 ms
|
|
Storage Conditions
|
-40 to 158°F / -40 to 70°C
|
|
Dimensions
|
5.8 x 4 x 1" / 147 x 101.6 x 26.1 mm
|
|
Weight
|
1.65 lb / 0.75 kg
|
|
Package Weight
|
1.66 lb
|
|
Box Dimensions (LxWxH)
|
8.4 x 5.5 x 2.5"
|
