WyreStorm EX-40G3 HDMI Extender (1080p: 40m/131ft) HDCP & PoC (Power -over-Cable) and IR

SKU WSEX40G3
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

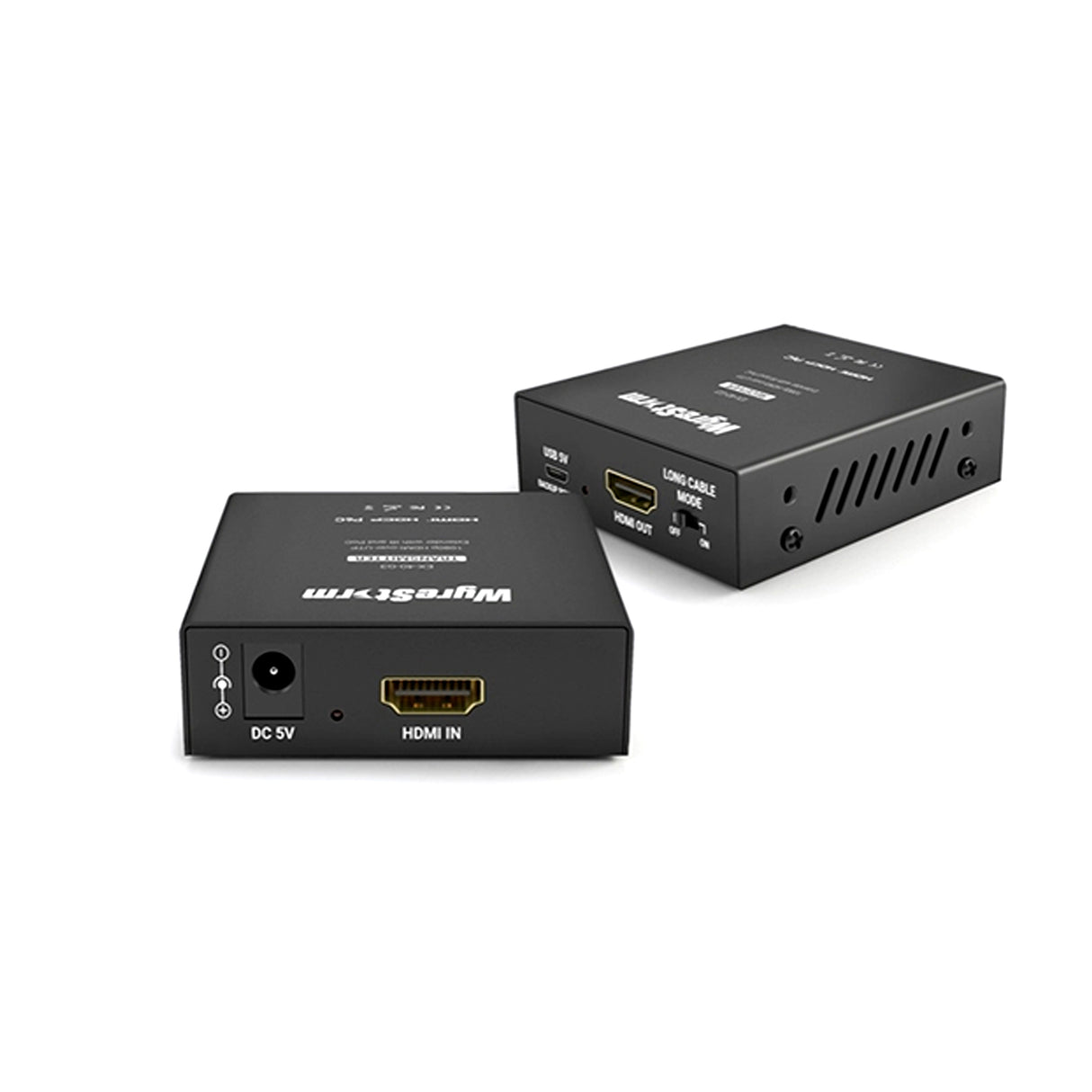

EX-40-G3 1080p HDMI-over-UTP Extender with IR and PoC

With the low-profile point-to-point EX-40-G3 extender set, it’s never been easier to extend full 1080p HD video over a Cat5e cable; HD audio is also supported. Plus with IR source control and PoC (power-over-cable) all wrapped up in a compact chassis for unbeatable value, reliability and ease of installation.

DISCREET, SMALLER FOOTPRINT

WyreStorm’s newly designed 40 meter extender, the EX-40-G3, is now smaller than ever. With almost half the width of its predecessor, this makes the G3 lighter in weight and easier to keep discreet.

HDCP COMPLIANT

WyreStorm extender solutions play nice with the equipment they’re connected to, ensuring that the HDCP encryption is maintained throughout the process.

FEATURE RICH; UNBEATABLE VALUE

With features such as PoC, automatic EDID, long cable mode capability and IR source control, the EX-40-G3 brings a tremendous amount of features to any simple installation at a cost effective price.

  • Transmits 1080p HDMI content over UTP to 40m/131ft
  • PoC allows for powering both TX and RX using a single power supply connected to the TX
  • IR pass-through RX>TX for source control
  • Simple signal equalization via slider switch
  • Slim 21mm chassis for discreet installation
Transmitter Receiver
Inputs

1x HDMI 19-pin type A

1x UTP 8-pin RJ-45 female

Outputs

1x UTP 8-pin RJ-45 female

1x HDMI 19-pin type A

Output Video Encoding TMDS over UTP
Video Resolutions (Max) Video Resolutions
1920x1200p @60Hz 16bit
Supported Standards DCI
Maximum Pixel Clock 297mHz
HDMI HDMI 1.3b | HDCP 1.4 | EDID | DVI/D supported with adapter (not included)
UTP HDMI | HDCP 1.4 | EDID | IR RX-TX | 1-way PoC Transmitter to Receiver
IR Transmitter: 1x IR TX: 3.5mm (1/8in) TRS Mono | Receiver: 1x IR RX: 3.5mm (1/8in) TRS Stereo
Power Supply 5V DC 1A (Optional for Receiver)
PoC 1-way Transmitter to Receiver
Max Power Consumption 2.5W (Pair, PoC)
Operating Temperature 0 ~ +45°C (32 ~ +113 °F), 10% ~ 90%, non-condensing
Storage Temperature -20 ~ +70°C (-4 ~ +158 °F), 10% ~ 90%, non-condensing
Maximum BTU 8.53 BTU/hr
Rack Units/Wall Box 1U
Height 21mm/0.83in
Width 70mm/2.76in
Depth 70.2mm/2.77in
Weight 0.2kg/0.44lbs
Safety and Emission CE | FCC | RoHS | RCM
