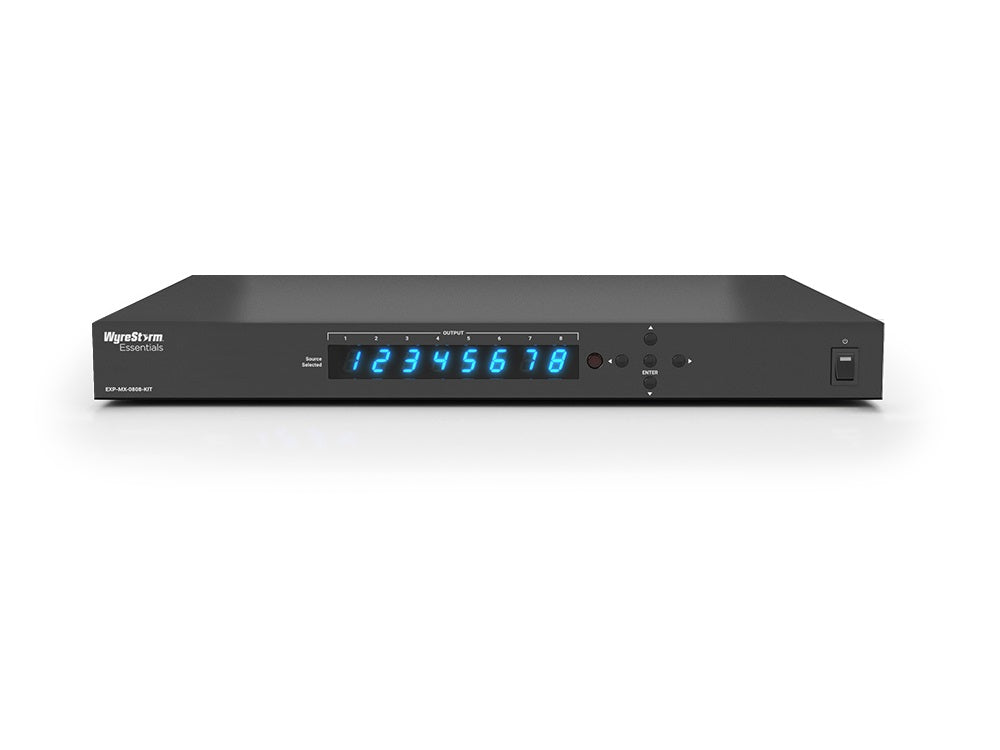

Wyrestorm MX-0808-KIT, 4K UHD 4:2:0 60Hz 8x8 HDBaseT™ Matrix Switch (6 HDBT, 2 HDMI) with 6 RX's & S/PDIF De-Embed  (4K: 35m/114ft, 1080p: 70m/228ft)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

An established leader in AV matrix solutions, WyreStorm introduces an 8x8 form factor as a convenient kit for the first time. Offering transmission of HDMI content up to 4K UHD & HDR content to 35m/115ft, pairing HDBaseT with WyreStorm’s powerful crosspoint HDMI switching chipset.

The EXP-MX-0808-KIT has 6 HDBaseT zone outputs with PoH and 2 switched HDMI outputs which can be paired with WyreStorm’s HAOC hybrid optical HDMI cables or any extender for transmission via HDBaseT or OM3 fibre.

The EXP-MX-0808-KIT doesn’t stop there, offering zone audio breakout via S/PDIF, CEC triggering for all connected screens and the A/V mute function enhances the offering for the modern home or commercial installation

  • 4K UHD HDBaseT™ 8x8 Matrix Switch supporting:
    • Content up to 4K/60 4:2:0 8-bit or 4K/30 4:2:0 10-bit
    • The latest HDR standards, including 30Hz HDR-10 & Dolby Vision
    • HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
    • HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
  • True 8x8 matrix with 6 HDBaseT zones and 2 switched HDMI outputs
  • HDBaseT enables 60Hz 4K UHD content (8-bit) to be sent over HDBaseT to 35m/115ft
  • Compatible with DVI-I and DP++ v1.3 signals from compatible devices (up to 9Gbps or 4K/30)
  • 8 assignable Toslink outputs allow audio to be independently de-embedded from outputs or inputs
  • Automatic (signal sensing) or manual (API operated) CEC power triggering of all connected screens or projectors (CEC compatibility required)
  • A/V Mute function gives complete distribution control to a user allowing the signal to any zone to be independently switched off
  • SmartEDID feature also dynamically detects display/source capabilities and automatically outputs the highest possible resolution
  • Additional EDID management through DIP switches for global setting or via WebUI for independent management of EDID per source
  • Embedded WyreStorm WebUI enables simple source switching and installer set-up & configuration
    • WebUI includes full EDID management to copy EDID from connected devices
    • Independent user control interface with separate password-protected installer settings
    • Personalise switching interface with source and output labelling
    • Hide unused I/O for cleaner appearance and navigation
  • WebUI includes full EDID management to read, copy, store or import EDID from connected devices
  • Assign a different EDID to each connected source device
  • API triggered standby mode puts unit into low power state during downtime
  • Flexible control options – front panel buttons, infrared remote control, local IR, RS-232, Telnet or WebUI
  • Simple switching matrix remote control included, which can also be learned into a universal remote handset to allow the control of multiple devices from one handset
  • 2-way IR for far-end device control from control system or source control from a zone.
  • Compact 1U chassis with adjustable depth rack mounting brackets included
  • US, UK, EU & AU Power cables included
  • Can be combined with WyreStorm EXP-CON-DAC-D digital audio converter to downmix Dolby Digital 5.1 content to mix stereo and surround sound zones
  • Transmit content from HDMI outputs 1&2 up to 50m/164ft using a WyreStorm HAOC HDMI cable
