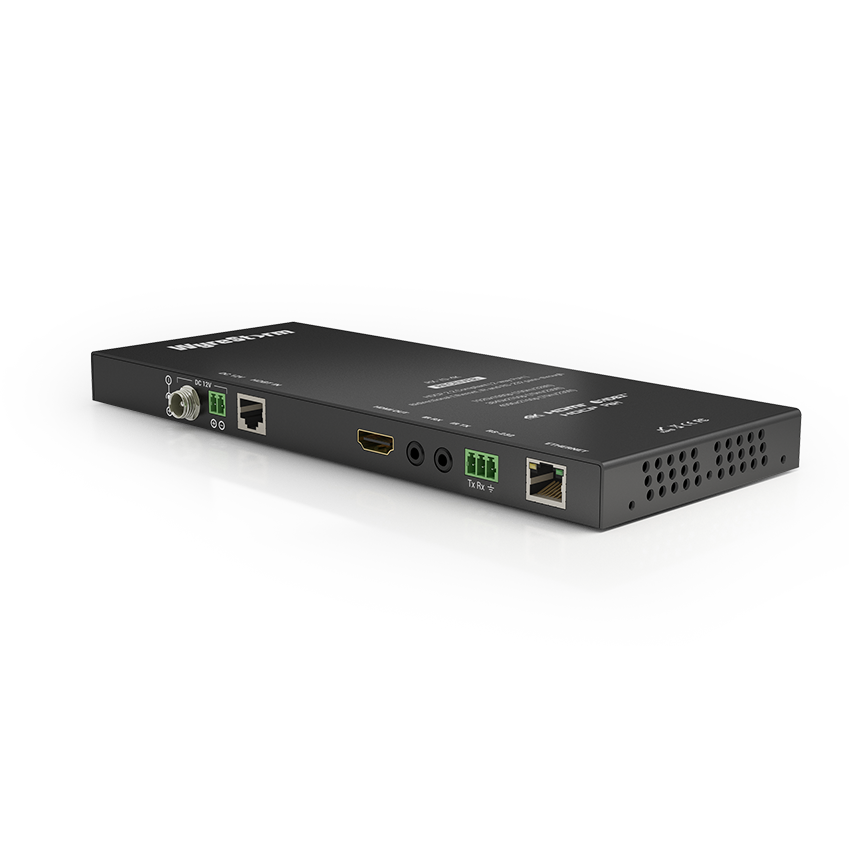

Wyrestorm RX-70-4K, HDBaseT™ 4K UHD Receiver (4K: 70m/230ft | 1080p: 100m/328ft)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
The perfect complement to a WyreStorm HDBaseT matrix system, presentation switch or in-wall transmitter solution, the RX-70-4K ultra slim display receiver supports 4K UHD video with HDR up to 70m/230ft and 1080p to 100m/328ft.


Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.


Supports 3 methods of control pass-through. Being a pure-HDBaseT™ device, the RX-70-4K can handle bi-directional IR, RS-232 and even CEC routing when used as part of a compatible WyreStorm matrix or extender system.


Low Profile chassis height of just 18mm / 0.7” for greater installation convenience behind the even slimmest wall mounts.


The RX-70-4K can either be powered by a PoH-compatible matrix or presentation switcher or it can itself deliver power to a transmission device such as the WyreStorm In-wall HDBaseT™ Transmitters.


Eliminating source-to-display time difference with a GenLock latency of zero frames, the 600 Series delivers content via a flexible, modular IP network, including a number of desirable attributes used in live AV broadcast sectors.

  • Low profile chassis of 18mm/0.7” for easier, more convenient installations behind screens at display zones
  • Transmits discrete wide-band bidirectional IR control signal/routed serial commands (from compatible matrix) together within the HDMI signal over a single Cat5e/6
  • Robust Class A HDBaseT technology for stable 4K/HD distribution and control resistant to electrostatic and environmental interference compared to conventional UTP transmission
  • Distribution of video (4K & 1080p), multichannel audio, bidirectional IR, PoH and 10/100 Ethernet over single Cat5e/6
  • Multichannel audio supports 7.1 DTS Master HD and Dolby True HD
  • 2-way PoH (Power over HDBaseT) – Receiver draws power from matrix so no local power required at display location
  • HDMI v2.0 with HDCP 2.2
  • Full 3D compatibility up to 1080p
  • Switchable RS-232 selection for firmware update
  • Power options – additional phoenix port and threaded DC for use of both standard and locking DC power plugs

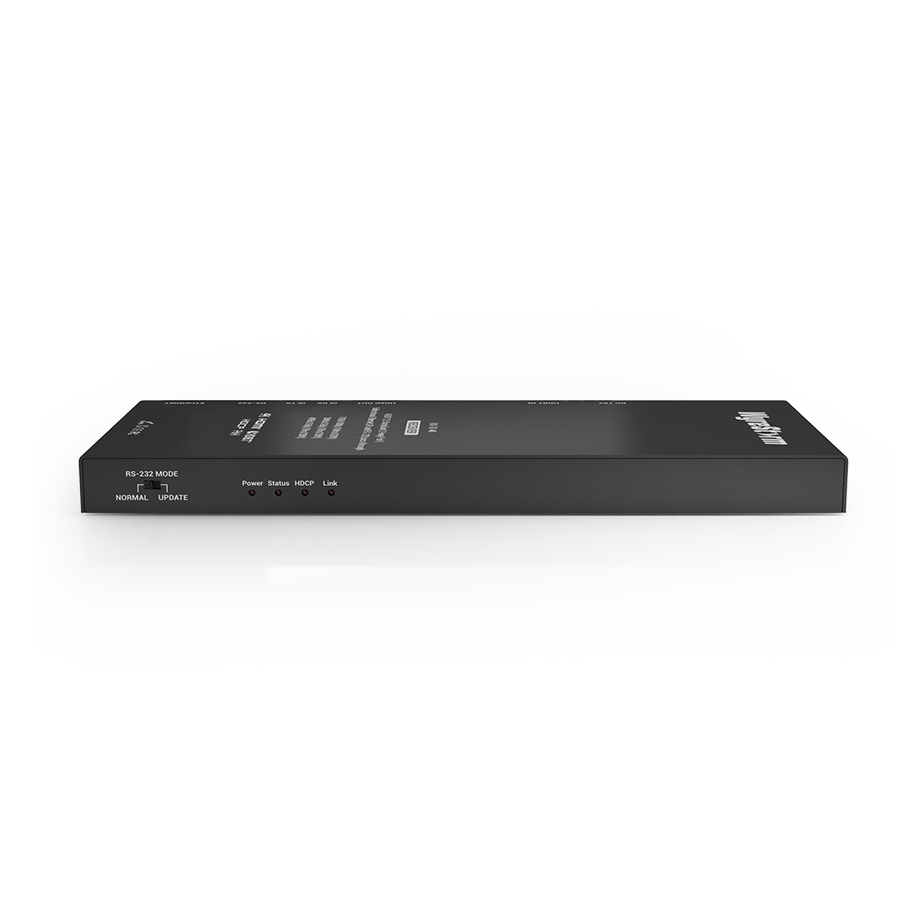

  • Visual LED indication for power supply, signal status to show display connection, HDCP in signal and Link between HDBaseT devices
  • Automatically adjusts feedback, equalization and amplification of signal
  • Energy efficient universal power supplies included
  • Mounting brackets and IR connections included
