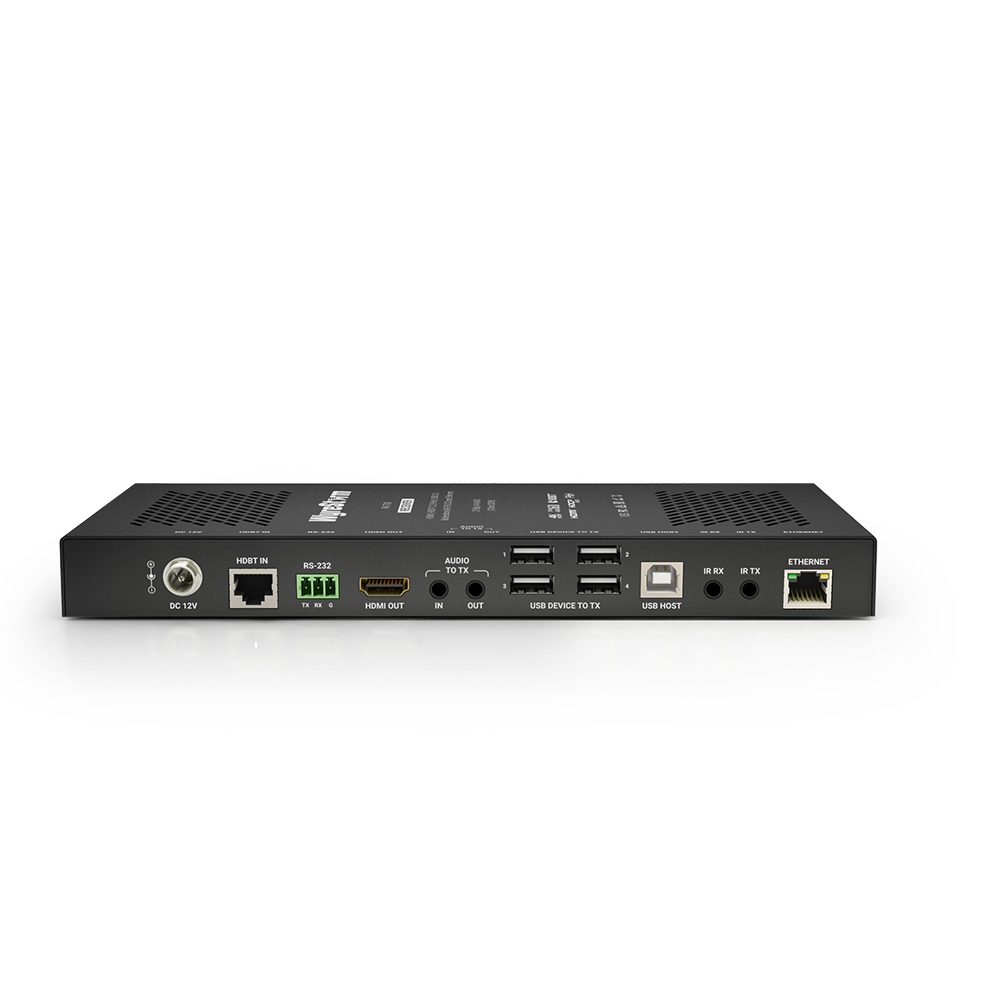

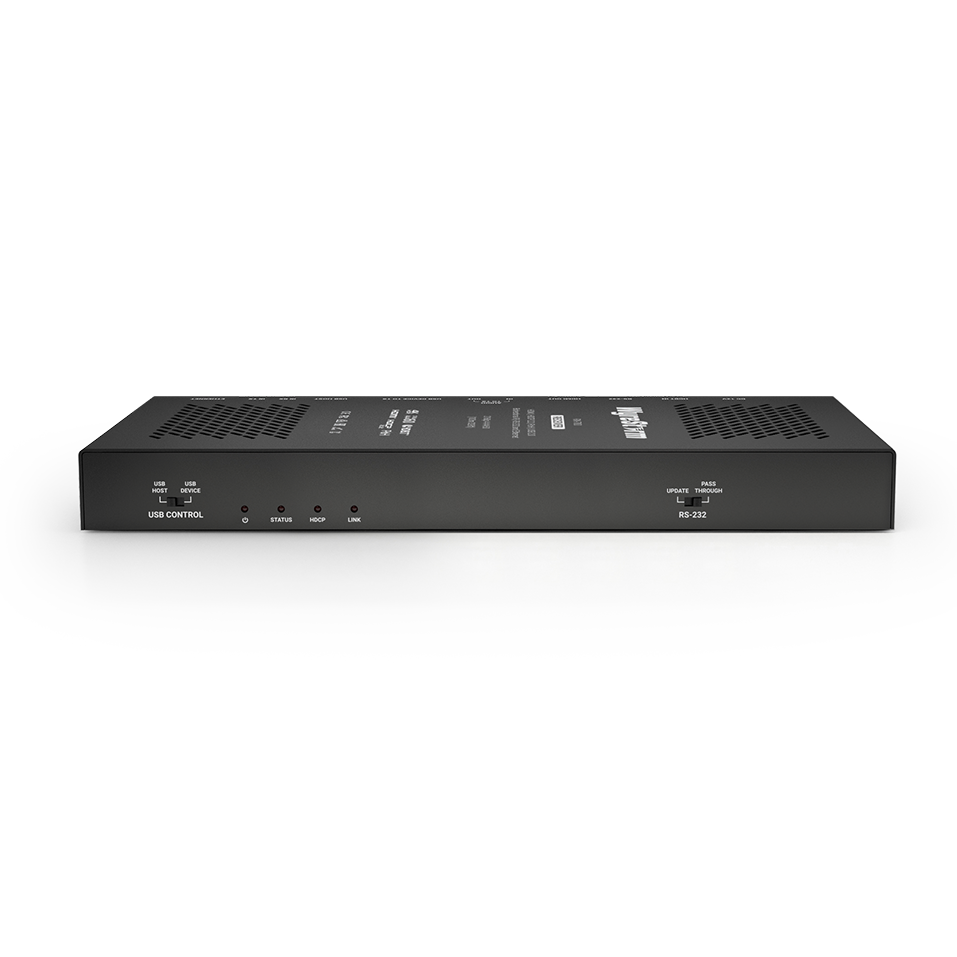

Wyrestorm RX-700, 4K HDR 4:4:4 60Hz HDBaseT2.0 Receiver with USB Device Inputs, Ethernet & PoH (4K: 100m/328ft)
CLASS C HDBASET
Featuring the powerful HDBaseT 2.0 specification, UHD video & audio, Ethernet, control, USB and PoH are sent over distances of 100m/328ft. VESA recognized DSC at the point of transmission means lossless compression for HDMI & DP++ signals up to 18Gbps.
USB 2.0 PASSTHROUGH
HDBaseT™ 2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities of 190Mbps for webcams or USB peripherals.
HDMI 2.0 MAXED OUT!
Sporting an 18Gbps HDMI input, the RX-700 can support all UHD video signals up to and including 2160p 4:4:4/60, and high frame-rate HDR 12bit 4:2:2 up to 60Hz, along with multichannel audio up to DTS:X and Dolby Atmos.
DEDICATED AUDIO LANE
Running in parallel to and completely separate to the HDMI signal within the HDBaseT link, the RX-700 can also support the bi-directional transmission of 2 separate stereo audio feeds, to and from the RX-700.
- HDBaseT Receiver supporting:
- Content up to 4K/60 4:4:4 & RGB 8-bit
- The latest HDR standards, including HDR-10, HLG and Dolby Vision at 30Hz
- HDCP 2.3 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos to all outputs
- 2160p 4:4:4 or 4:2:2 12-bit HDR content from a source to a display or projector using HDBaseT up to 100m/328ft
- Automatically activated DSC lossless compression handles HDMI content up to 17.8Gbps
- HDMI output supports bandwidths of up to 18Gbps
- Compatible with DVI-I and DP++ v1.3 signals from compatible devices
- Bidirectional USB 2.0 passthrough offering 190Mbps transfer and HID extension
- Features 4 USB device ports
- 10/100 Ethernet port for extension of LAN from TX
- Bidirectional audio lane separate to HDMI signal sends and receives analog audio signals at either end (requires supporting TX device)
- Bidirectional IR, RS-232 and CEC communication
- DIP Switch selection for direction of USB control, long cable mode and firmware update
- Backwards compatible with HDBaseT 1.0 transmission and receiving devices (lowest denominator takes priority)
- LED indication for power supply to units, signal status to show established display connection, HDCP presence in signal and transmission link
- 2-way PoH (Power over HDBaseT) enables the receiver to be remotely powered by the transmitter or power a transmitter
- Locking DC power jack
- 12v DC PSU with US, UK, EU & AU Power cables included
- Mounting brackets included
