WyreStorm SP-UTP-0104 1x4 Cat5e HD Splitter, Black

SKU WSSPUTP0104
ID: 12961309392968




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

SP-UTP-0104 1x4 Cat5e HD Splitter - Doneo Malta

The WyreStorm SP-UTP0104 is a one input, eight-output HDMI splitter that distributes a connected HDMI input over Cat5e/6/7 cable to eight identical syncronised UTP outputs up to 50m / 164ft under perfect conditions* including IR control of the source. The SP-UTP0104 also buffers and amplifies the signal to ensure optimum transmission and reception over the length of the cable run without any loss in video/audio quality. Adjustable EDID DIP settings encourages communication between devices to avoid compatibility issues during installation.

  • Single HDMI input
  • Four integrated dual Cat5e/6/7 outputs for connection to your specified display adapter
  • IR emitter input for source control from display location
  • EDID management to assist communication between devices and settings during installation
  • Transmission distance: 50m / 164ft using well terminated and installed Cat5e/6/7 cable
  • Compact size for neat, unobstrusive installations
  • Install in seconds for simple plug and and play connection - no settings required

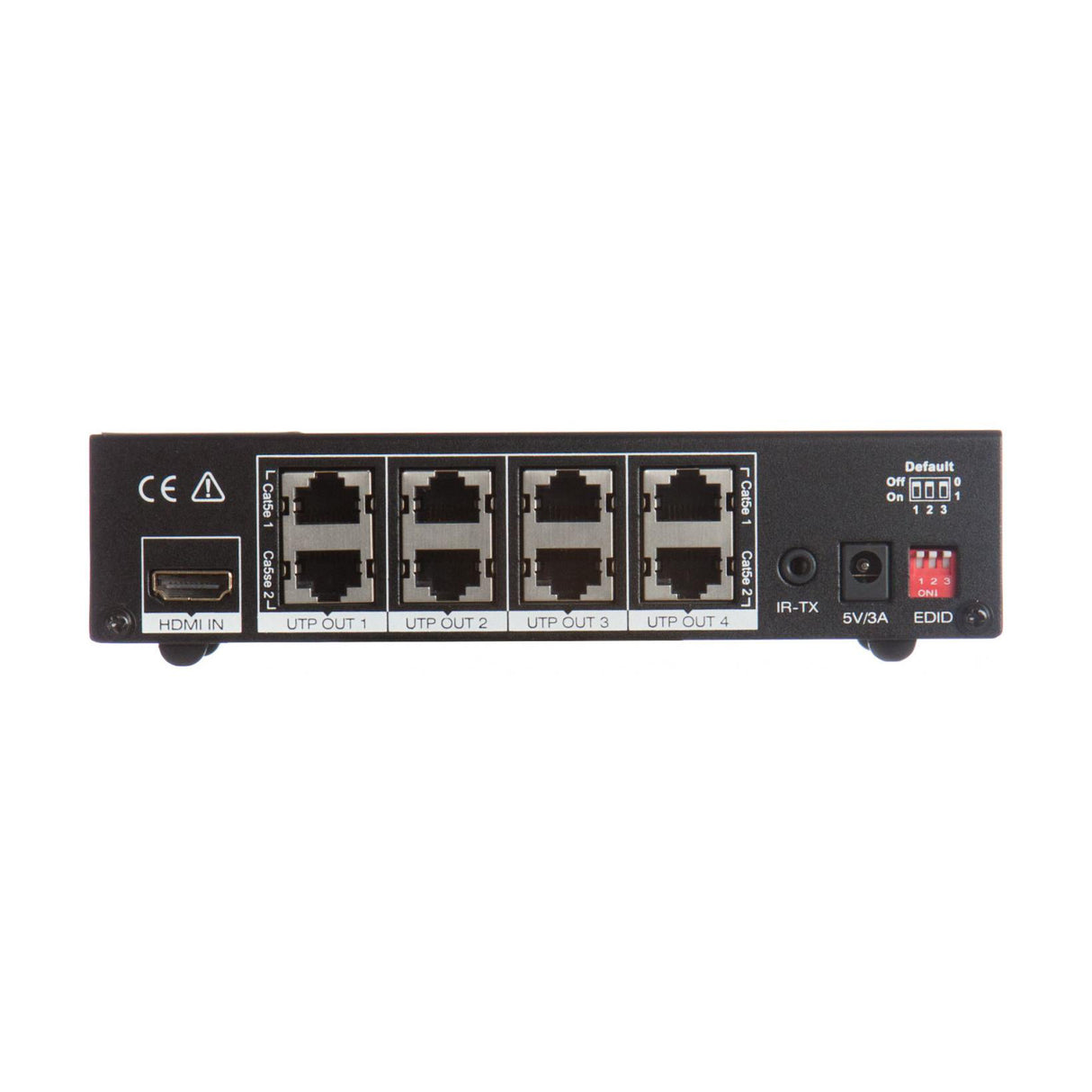

  • Distribution: One HDMI input, four identical syncronised RJ45 outputs (8 x RJ45 ports in dual cable formation equals four UTP outputs with IR source control from display locations)
  • Full support high definition resolutions 1080p, 1080i, 720p and other standard video formats
  • 3D support (Frame sequential - Blu ray / Interlaced stereoscopic - satellite/cable braodcasts)

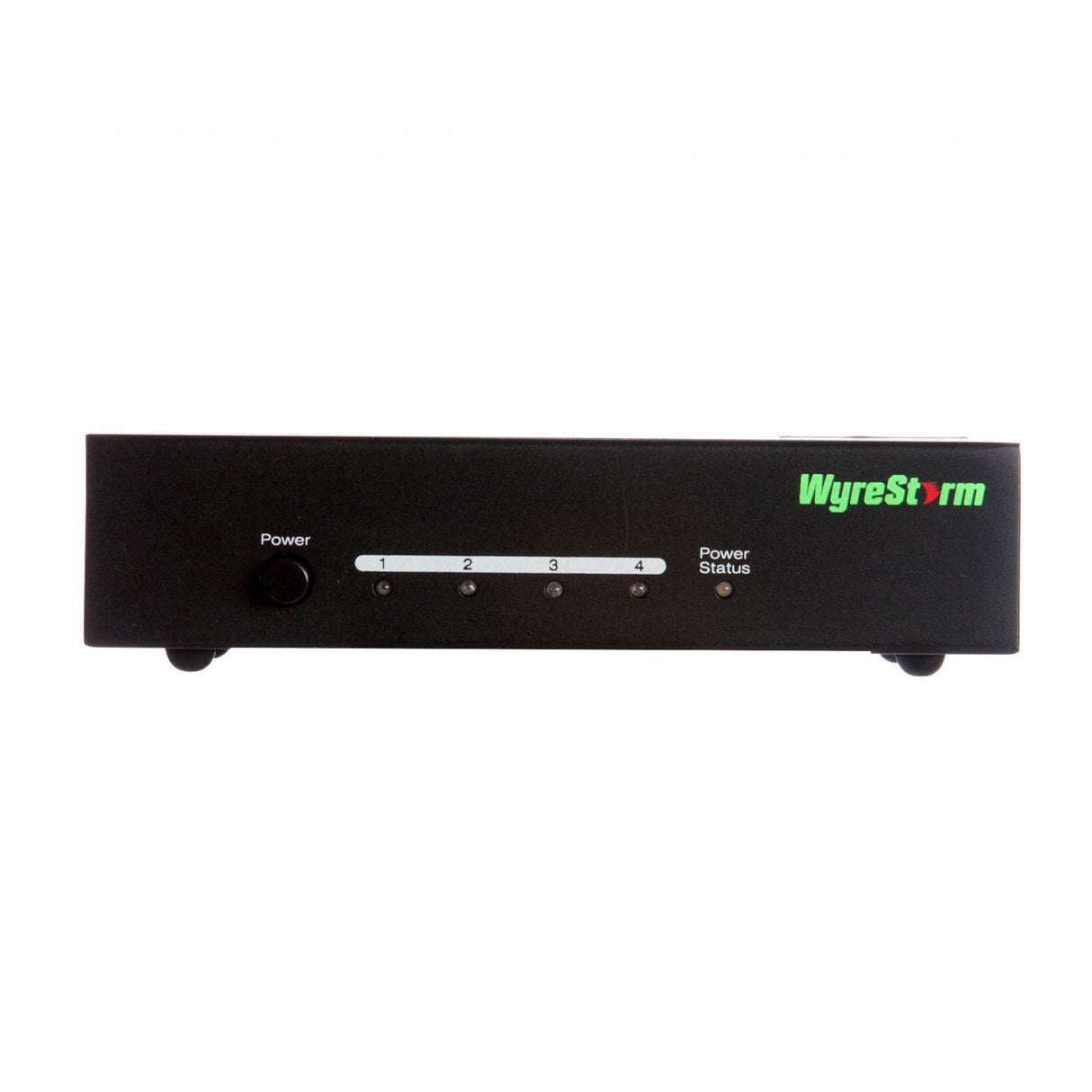

  • LED power, source select, output select indicator
  • PAL and NTSC compatible
  • EDID management - DIP switch function enables manual setting to encourage communication between inout/ouput devices
  • HDCP compliant
  • HDMI 1.3b version
  • Mounting brackets included

Dimensions (WxHxD): 175mm/6.9" x 40mm/1.6" x 115mm/4.5"

Weight (Kg): 0.4Kg / 0.9lbs

Operating Temperature Range: -5 to +35°C (-41 to +95 °F)

Operating Humidity Range: 5 to 90 % RH (no condensation)

Video Amplifier Bandwidth: 6.75Gbps

Input Video Signal: 0.5-1.0 volts p-p

Input DDC Signal: 5 volts p-p (TTL)

Maximum Single Link Range: 1080p 24bit colour depth

Transmission distance: 1080p signal up to 50m / 164ftft (Under perfect transmission conditions including straight cable runs with no electrical interference, bends, kinks, patch panels or wall outlets.)

Video Format Supported:

VESA: 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1920x1200 DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p

Output Video: HDMI v1.3b

Audio Format Supported: DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, 7.1, stereo

Power Supply: 5VDC - from mains

Power Consumption: 8Watts (Max.)

BTU Rating (British Thermal Unit): N/A
