Wyrestorm SW-510-TX 4-Input 4K UHD Switching HDBaseT Transmitter with USB Host/Device

SKU WSSW-510-TX
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

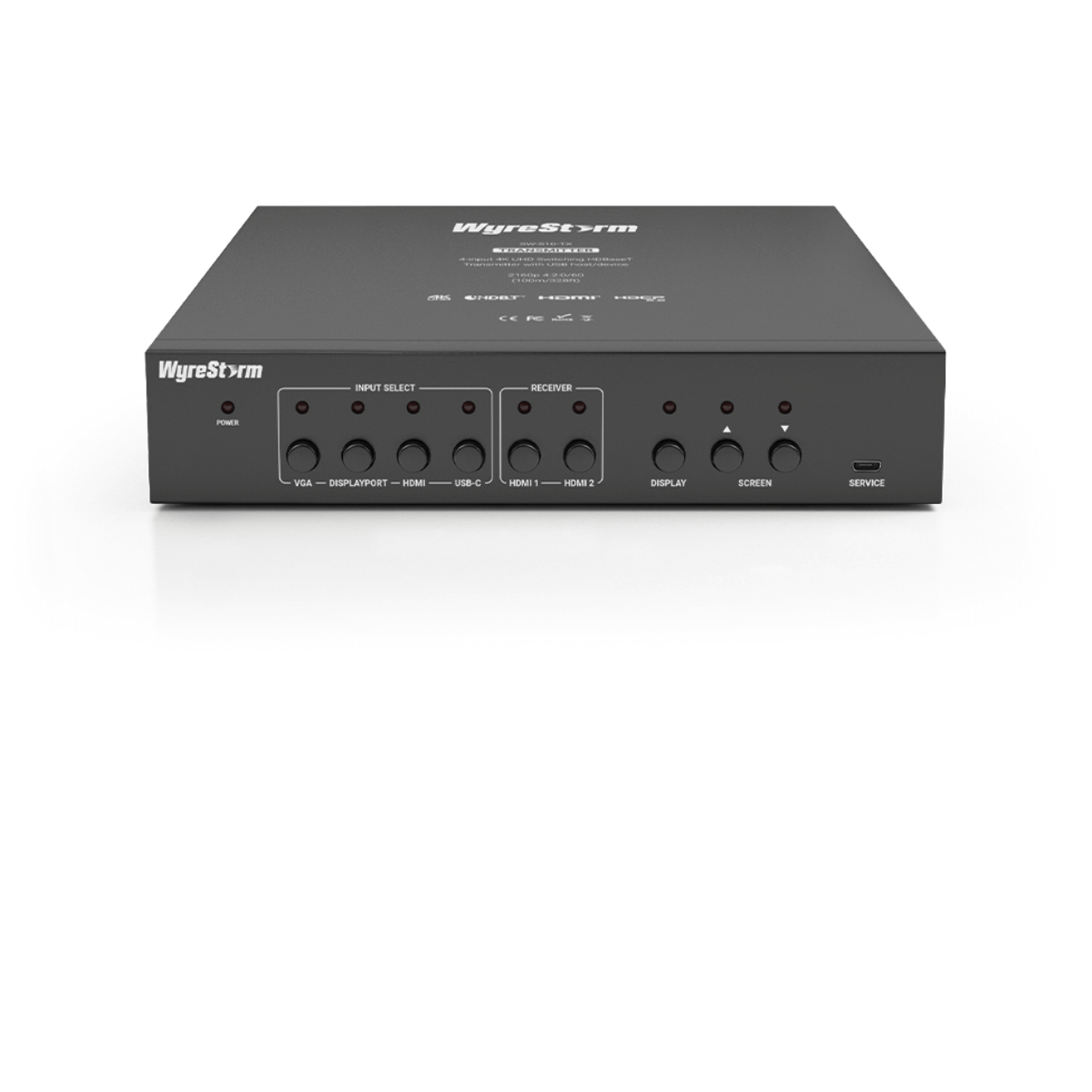

SW-510-TX 4-Input 4K UHD Switching HDBaseT Transmitter with USB Host/Device

When the next generation of HDBaseT transmission meets WyreStorm's presentation switcher platform, the result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic switching inputs with USB host extension and CEC triggering mean an autonomous experience with no user input required.

4-INPUT SWITCHING EXTENDER

A new flagship in our PRO range and a first for our switching extenders, the EX-SW-0401-H2-PRO brings features of the H2 and PRO products into one powerful meeting space solution. Supporting USB routing to both HDMI and DP inputs, this extender accepts HDMI, DisplayPort and USB3.1c sources with a VGA +audio input for legacy devices. Proudly carrying the H2 moniker, it will support 4K content and even HDCP2.2 protected content.

ADDITIONAL RECEIVER INPUTS

When the meeting room is in an idle state, the receiver can switch to either of its HDMI inputs which can be used for anything from a signage player to a satellite receiver, keeping the screen active and displaying content. These inputs can also be triggered manually at any time should a Chromecast or AppleTV be fitted for screen mirroring.

TWO CONDITION-BASED RELAYS BUILT INTO RECEIVER

With autonomy in mind, this “meeting-room-in-a-box” can be configured to automatically trigger motorized devices within the room. The relays will open or close depending on the status of the transmitter, meaning that upon a source connection being made, the meeting room will come to life with projector screens appearing and window blinds closing.

USB 2.0 PASS-THROUGH

HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. Furthermore, allowing 2 host devices to be connected, the extender can route USB traffic depending on the currently selected source at the receiver.

  • Professional switching transmitter for education or corporate meeting rooms
  • Automatic or manual switching between HDMI, VGA, DisplayPort and USB-C inputs
  • Bidirectional USB2.0 for connection of webcams, smart touchscreens and microphones
  • USB-C input supports Alt-mode functionality for AV and USB device connection through a single cable
  • Automatic or manual CEC triggering for compatible connected screens or projectors
  • Supports source content up to 4K/60 4:2:0 with HDCP 2.2

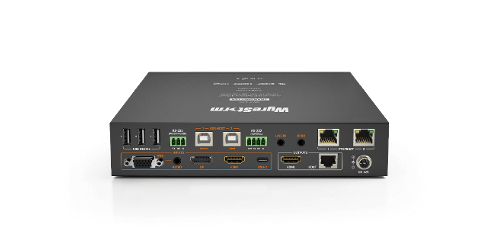

Inputs 1x VGA In: 15-pin VGA
1x Display Port In: DisplayPort 1.3
1x HDMI In: 19-pin type A
1x Audio In: 3.5mm (1/8in) TRS Stereo
1x Line In: 3.5mm (1/8in) TRS Stereo
Outputs 1x HDMI Out: 19-pin type A
1x HDBT Out: 8-pin RJ-45 Female
Output Video Encoding HDBaseT™ Class C
Encoding Data Rate 9.2Gbps
End to End Latency 10μs (micro seconds)
Audio Formats 2ch Analog/PCM | Multichannel: LPCM
Video Resolutions (Max) Video Resolutions
1920x1080p @60Hz 8bit
1920x1200p @60Hz 8bit
3840x2160p @30Hz 8bit 4:4:4
4096x2160p @60Hz 8bit 4:2:0
Supported Standards DCI | RGB
Maximum Pixel Clock 297MHz
HDMI HDMI | HDCP 2.2 | EDID | DVI/D supported with adapter (not included)
HDBaseT™ HDMI | HDCP 2.2 | EDID | CEC | 2ch audio | USB
RS-232 1x RS-232 (Control): 3-pin Phoenix | 1x RS-232 (Passthrough): 3-pin Phoenix
Ethernet 2x 8-pin RJ-45 female | Bidirectional over HDBaseT™
IR 1x IR TX: 3.5mm (1/8in) TS Mono
USB 1x USB-C: USB 3.1 Audio/Video
2x USB Host: USB-B | 3x USB Device: USB-A
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F to ~ 158°F (-20°C ~ +70°C)
10% ~ 90%, non-condensing
Maximum BTU 56.3BTU/hr
Rack Units | Wall Box <1U
Height With | Without Feet 45.5mm/1.76in | 42mm/1.66in
Width With | Without Brackets 263mm/10.36in | 220mm/8.67in
Depth With | Without Handles 148.7mm/5.86in | 148.7mm/5.86in
Weight 0.97kg/2.13lbs
