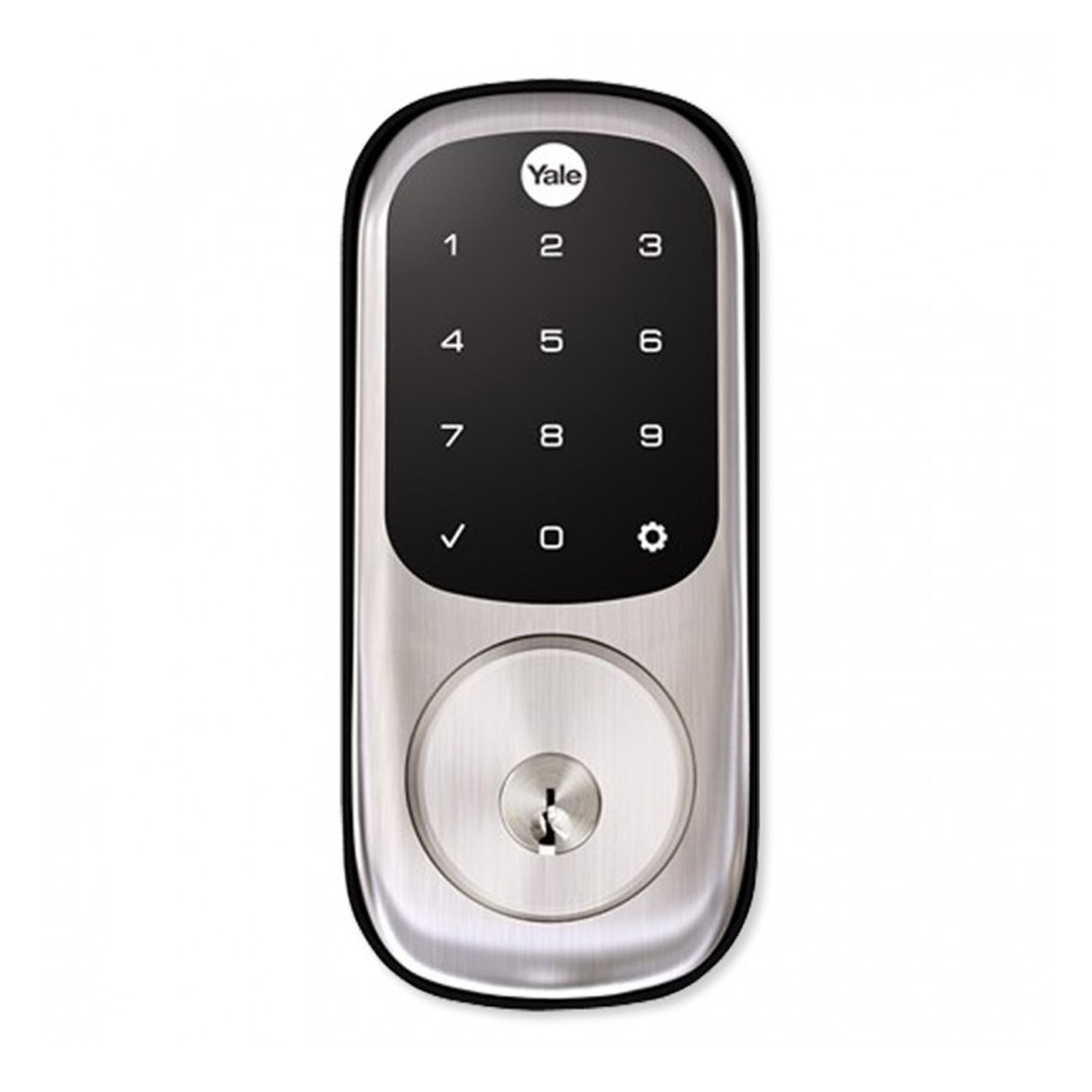

Yale YRD226-ZW2-619 Assure Lock Deadbolt with Touchscreen Z-Wave-DB - Satin Nickel

by Yale
SKU YLYRD226-ZW2-619
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Lock and unlock the deadbolt using your cell phone, smart device or keypad.

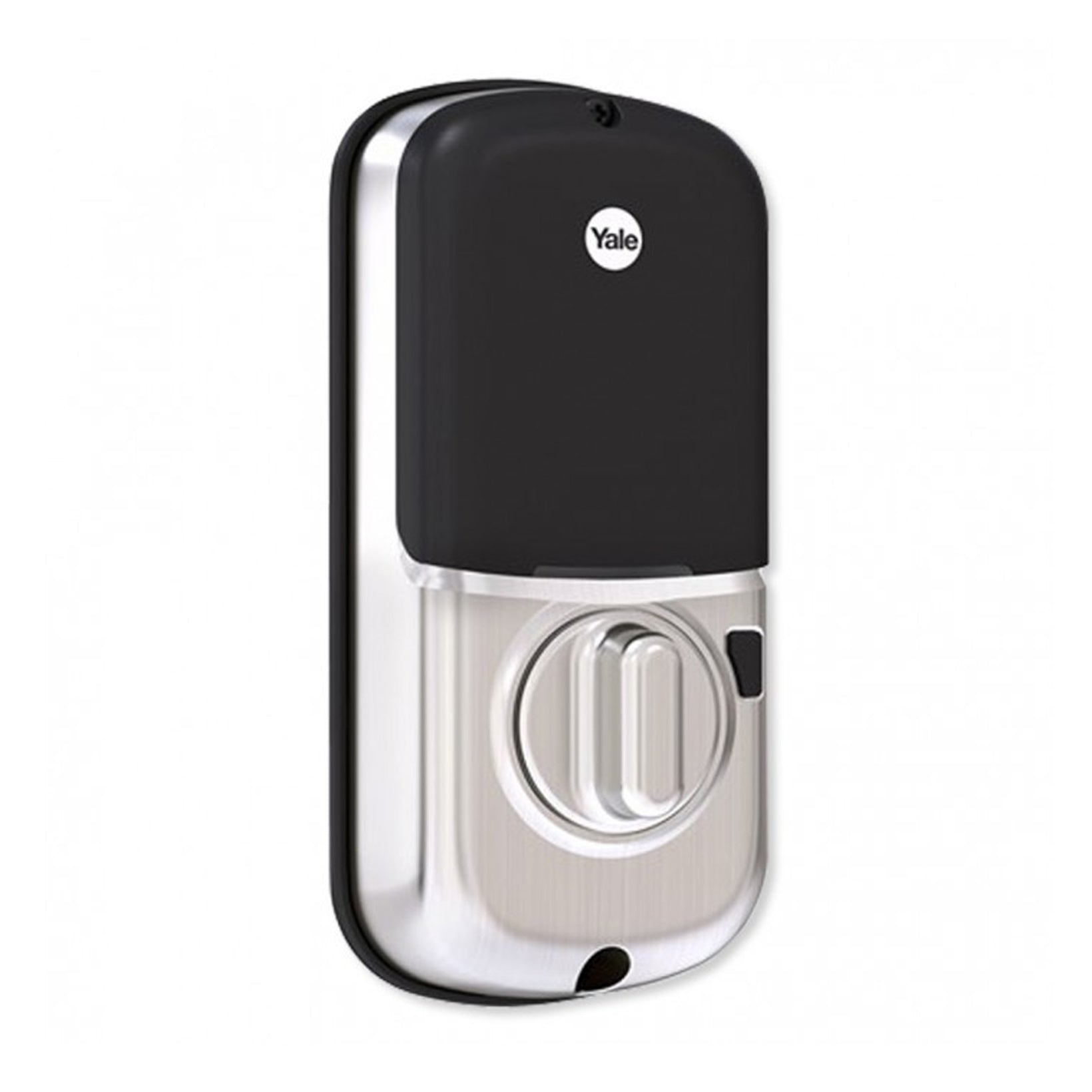

To lock or unlock the interior, simply use your device or the standard thumb turn. It has the versatility of keyless operation while still retaining the functionality of keypad entry and is a great addition to any smart home. It's perfect for front doors, side or back doors, and garage entry doors.

Unlock By Entering Your Code On The Keypad

When you don't have your phone on you, simply unlock the door using your unique entry code on easy-to-use keypad. Create permanent, scheduled or temporary codes for people you trust.

Automatically Locks Behind You

Never worry about whether or not you remembered to lock the door. The Assure Lock can automatically lock behind you. Optional setting.

Works with Your Smart Home or Alarm

Lock, unlock, share access and more with your compatible Z-Wave smart home or alarm system.

Share Access, Not Keys

Create unique codes to share with people you trust, or use your smart home app to grant access to others. Delete codes whenever you need to.

Easy to Install

Installs in minutes using just a screwdriver on most standard doors. Step by step installation and programming instructions are available with the free BILT app.

Fits Most Standard Doors

1 3/8" to 1 3/4", 2-1/8" Bore Hole, 1" Edge Hole, 2-3/4" or 2-3/8" Backset

Compatible Door Thickness 1.75 to 2.25" / 44.5 x 57.2 mm
1.4" / 35.6 mm Requires Thin Door Gasket
Door Specs Backset: 2.4 or 2.75" / 61 or 70 mm
Face Bore Hole: 2.13" / 54 mm
Edge Bore Hole: 1" / 25.4 mm
Keypad Backlit Capacitive Touchscreen
Cylinder 5-Pin Cylinder
Keyway KW-1 5 Pin
Keys Qty 2
Batteries 4 x AA (Included)
Certification ANSI/BHMA A156.36, Grade 2
Dimensions 1.3 x 2.7 x 6" / 33.9 x 69.2 x 154.4 mm
Weight 7 lb / 3.2 kg
