Yamaha NS-IW660 3-Way In-Wall Speaker System for Custom Professionals (Pair)

by Yamaha
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

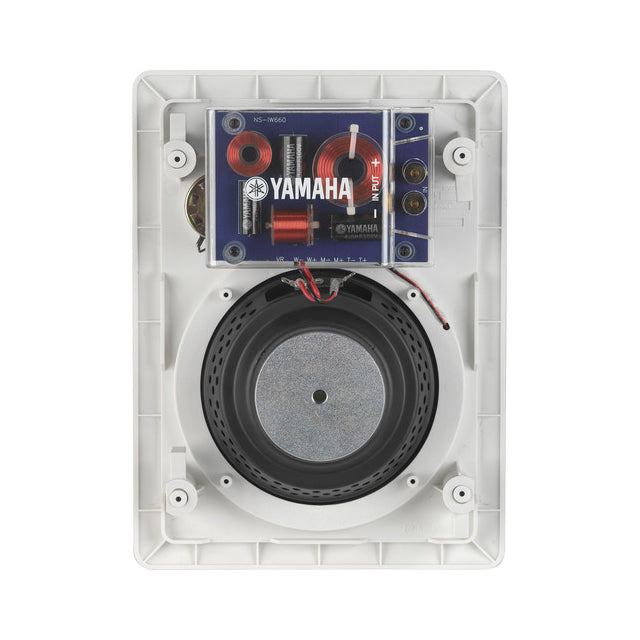

The NS-IW660 3-Way In-Wall Speaker System from Yamaha comes as a pair of two easy-to-install in-wall front/center speakers. System features a customized high-quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevent the deterioration of transients as they pass through the network. It delivers high quality sound for the most demanding custom applications

The NS-IW660 Speaker System features a 6.5" Kevlar cone woofer, 1.6" aluminum dome midrange driver, and 1" titanium dome tweeter. The gold-plated push-type speaker terminals, paintable grilles/frames, cutout template, and paint protective cover ease installation

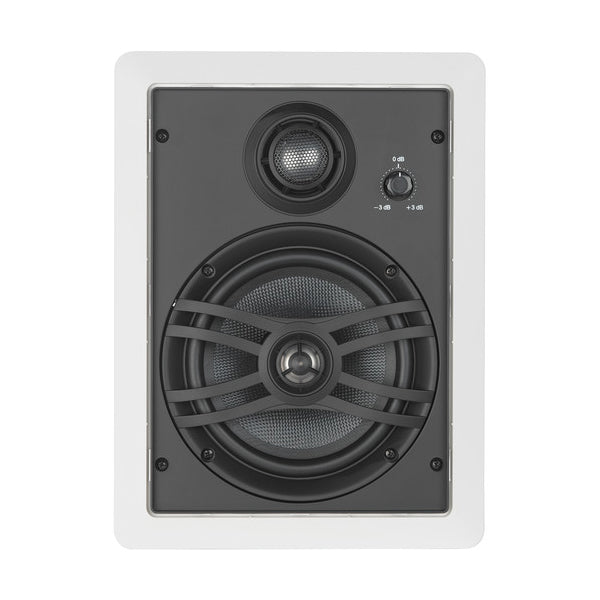

The tweeter and midrange diver can be swiveled to aim high-frequency sounds towards the main listening position by simply pressing on the edge of the tweeter to change the direction it faces. The high-frequency level of the tweeter can be changed by using a high-level adjustor to suit your taste or installation environment.

  • Natural sound in-wall speaker system suited for custom applications
  • Designed for front and center channels
  • Low distortion, high-capacity, high-quality customized crossover network
  • Easy to install
  • 6.5" (16.5cm) Kevlar cone woofer
  • 1.6" (4.1cm) aluminum dome midrange driver
  • 1" (2.5cm) titanium dome tweeter
  • Swivel tweeter and midrange driver
  • Gold-plated push-type speaker terminals
  • 150W maximum input capability

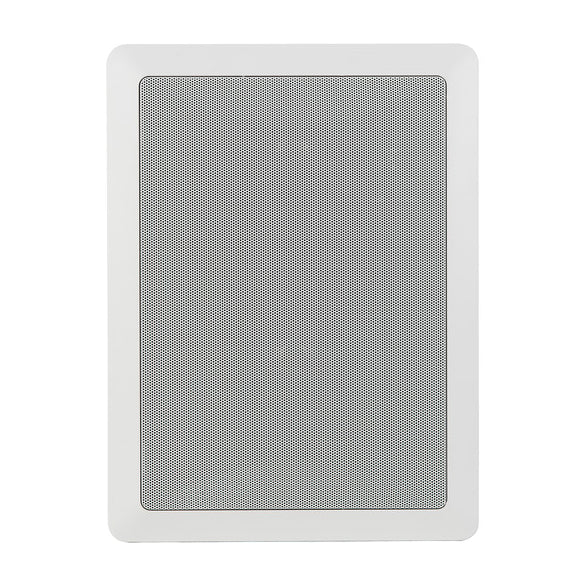

  • Paintable grille with protective cover included
Type 3-way in-wall front / surround speakers
Woofers 6.5" (16.5 cm) Kevlar cone woofer
Driver Midrange Driver: 1.6" (4.1 cm) aluminum dome driver
Tweeter 1.0" (2.5 cm) Titanium dome tweeter
Swivel tweeter and midrange driver
Frequency Response 50 Hz to 28 kHz
Frequency Control 3 to -6 dB
Impedance 8 Ω
Sensitivity 88 dB, 2.83 V/m
Crossover Frequency 3.5 to 7 kHz
Grille Yes, paintable with protective cover
Input Power Maximum: 150 W
Nominal: 50 W
Mounting Depth 3.1" (7.9 cm)
Dimensions (W x H x D) 11.31 x 8.91 x 3.81" (28.73 x 22.62 x 9.68 cm)
Weight 4.4 lb (2.0 kg) each speaker
