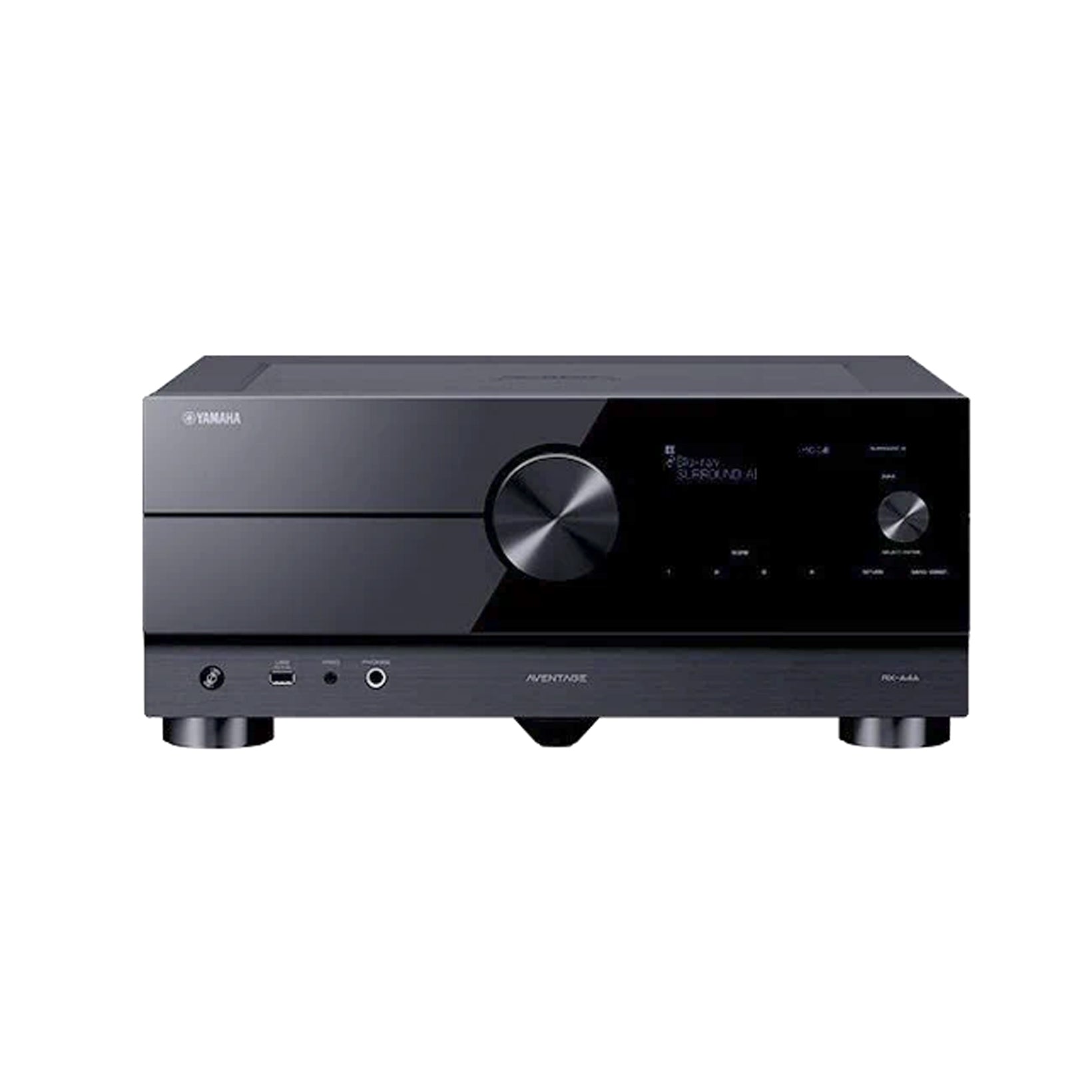

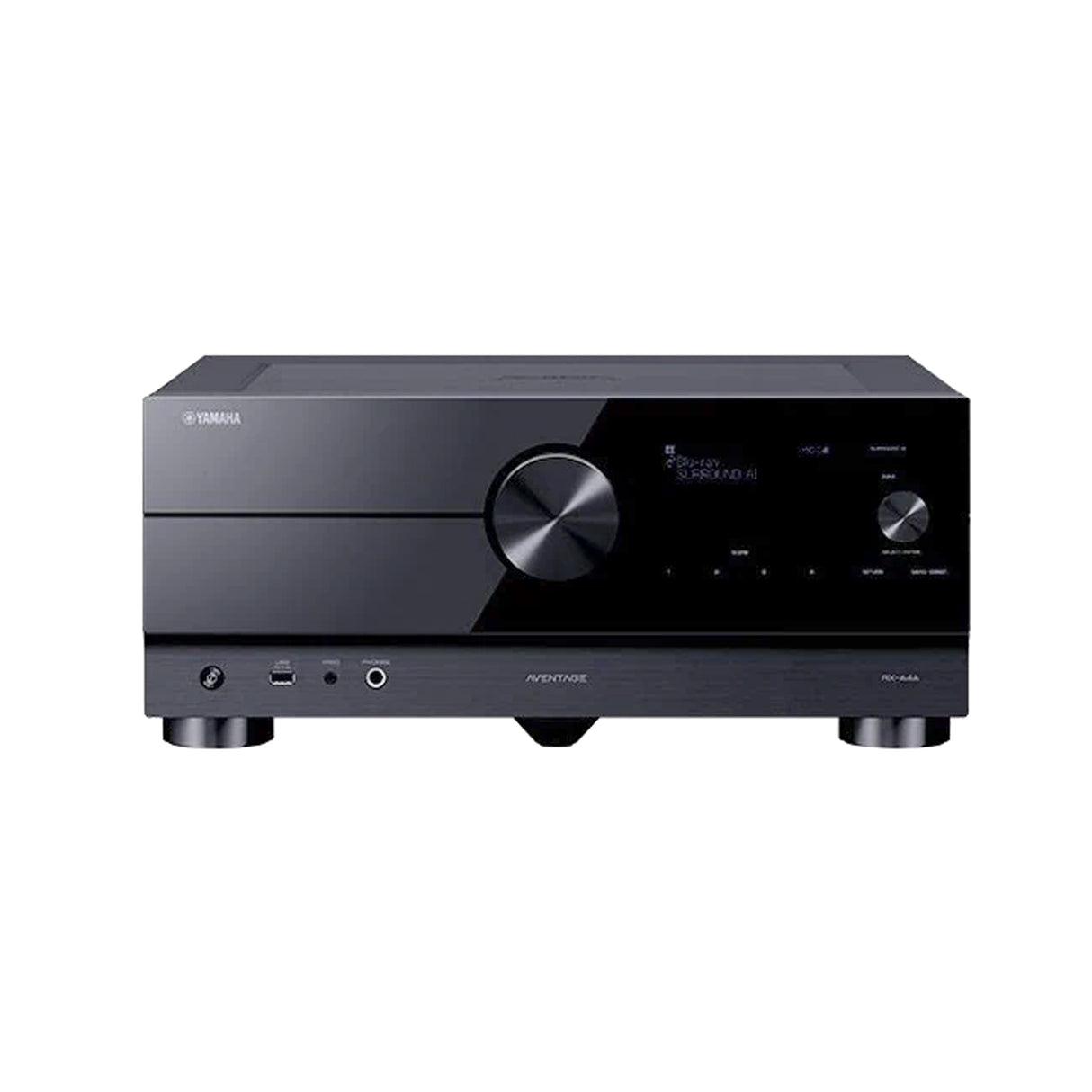

Yamaha RX-A4ABL, AVENTAGE 7.2-Channel MusicCast A/V Receiver

by Yamaha
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Enjoy immersive multi-channel sound with the Yamaha AVENTAGE RX-A4A 7.2-Channel MusicCast A/V Receiver. It delivers up to 110W of power per channel at 8 ohms and features Dolby Atmos and DTS:X compatibility for object-based audio support.

Built-in Bluetooth and AirPlay 2 support allows the receiver to wirelessly stream music from compatible sources, such as smartphones and tablets, while Yamaha's Compressed Music Enhancer helps to deliver optimized sound quality.

  • Up to 110W per Channel at 8 Ohms
  • YPAO R.S.C. Multipoint Sound Calibration
  • 4K UHD Pass-Through
  • HDR10, Dolby Vision, HLG Pass-Through
  • HDMI with eARC Support
  • 7 x HDMI-In / 3 x HDMI-Out
  • Built-In Wi-Fi and Bluetooth
  • Alexa, Google Assistant, Siri Control
  • Apple AirPlay 2 Connectivity
  • Front-Panel USB Connectivity


This artificial intelligence analyzes the DSP parameters and optimizes the surround effect of distinct sound elements such as background music, dialogue, and sound effects. It's like having a professional sound engineer tune the sound according to the scene. 64-bit processing is achieved with the Qualcomm QCS407.

Crafted for Clarity

The newly designed Anti-Resonance Technology (A.R.T.), H-shaped cross frame, and mechanical structure are a rock-solid defense against internal and external vibrations that affect the sound. Experience crystal-clear sound that moves you, all while your A/V receiver stays perfectly still.

High-Quality Digital Components

The Qualcomm QCS407 takes the receiver's surround sound to the next level with support for Dolby Atmos and DTS:X. With the ESS SABRE ES9007S Premier Audio DAC, you get extraordinary signal-to-noise ratio and up to 120 dB of dynamic range for professional quality audio.

Cinema DSP HD3

This unique Yamaha proprietary sound field playback technology was created by combining actual measured sound field data with cutting-edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximizes sound effects, accurately reproducing a new dimension of realism.

4K60 with Future Support for 8K60AB and 4K120AB

>Via a future firmware update, this receiver will support end-to-end 8K and 4K resolutions and higher refresh rates, giving you a smoother and more realistic viewing experience.

HDR Support

HDR provides deeper contrast and more realistic images that stay true to the creators' intent. Support for Dolby Vision, Hybrid Log Gamma, and BT.2020 is included, and a future firmware update will enable HDR10+.

MusicCast App

Explore the power of multiroom audio, access your sources and streaming devices, and control the receiver, all through your smartphone.

Voice Control

Through AirPlay 2, you can stream your music via voice control with Siri from your Apple iOS device.

AV Setup Guide App

This app offers expert guidance through installation, cable connections, and various other settings.

Third-Party Control

This receiver is ready for integration with third-party control partners, including Crestron, URC, RTI, Control4, and more.

YPAO-R.S.C. with Multipoint Measurement and Precision EQ

YPAO (Yamaha Room Acoustic Optimizer) analyzes your room acoustics and measures speaker characteristics to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) also optimizes sound parameters for maximum performance from CINEMA DSP, Dolby Atmos, and DTS:X. This feature includes low frequency mode.

Compatible with Wireless Surround Sound

Go wire-free with MusicCast Surround, letting you create a 5.1-channel surround sound system without the need to run wires to the back of the room. Connect wirelessly by connecting one MusicCast 50 or two MusicCast 20 wireless speakers to the receiver.

Dynamic and Compelling Design

Classic Yamaha craftsmanship meets cutting-edge design. Every piece has been carefully crafted to ensure this receiver looks and sounds perfect in your home.

Enhanced Gaming Features (ALLM, VRR, QMS, and QFT) via a Future Firmware Update

New enhanced gaming and media features offer seamless motion and transitions to enhance your performance.

Support for Multiple Next-Gen Consoles via a Future Firmware Update

Three HDMI inputs and one output will equally support the latest HDMI technology to allow several next-gen gaming consoles to be connected at the same time.
  • High Slew Rate design
  • Compressed Music Enhancer
  • Spotify Connect
  • Streaming services include Spotify, Amazon Music, Pandora, TIDAL, Deezer, Qobuz, Napster, and SiriusXM
  • Sleek, modern design
  • Anti-Resonance Technology Wedge (fifth foot)
  • Auto power standby
  • ECO Mode
Channels 7.2
Power Output per Channel 2-Channel Driven:
110 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD
Speaker Impedance 4 to 8 Ohms
DTS Compatibility DTS:X
Dolby Compatibility Dolby Atmos
Upmixing Technology Dolby Atmos Height Virtualization Technology
HDR Compatibility HDR10, Dolby Vision, Hybrid Log Gamma
Pass-Through Support 4K60p
Rear A/V Inputs 7 x HDMI
2 x Optical TOSLINK
1 x Digital Coaxial
3 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs 3 x HDMI
1 x 7-Channel RCA Pre-Out
1 x Stereo RCA Zone 2
2 x RCA Subwoofer
Front I/O 1 x USB Type-A
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O 1 x FM Antenna Terminal Input
1 x AM Antenna Terminal Input
2 x Bluetooth/Wi-Fi Antenna Terminal
2 x 1/8" / 3.5 mm (12 V Trigger) Output
1 x 1/8" / 3.5 mm (Remote) Input
1 x 1/8" / 3.5 mm (Remote) Output
Speaker Connectors 9 x Binding Post Pairs
Audio Return Channel (ARC) eARC
Supported Audio Codecs AAC, SBC
Wireless Audio Protocols AirPlay 2, MusicCast
External Control Support Control4, Crestron Command, RTI, URC
Virtual Assistant Works with Alexa, Apple AirPlay, Works with Google Assistant
Tuner Type AM, FM
Power Consumption Standby: 0.4 W
Dimensions (W x H x D) 17.1 x 7.5 x 17.4" / 43.4 x 19.1 x 44.2 cm
17.1 x 10.6 x 17.4" / 43.4 x 26.9 x 44.2 cm (Antenna Up)
Weight 35.7 lb / 16.2 kg
Warranty Length Limited 3-Year Warranty
Package Weight 41.615 lb
Box Dimensions (LxWxH) 21.8 x 20.1 x 10.9"
