Yamaha RX-V6ABL, 7.2-Channel Network A/V Receiver with MusicCast

Name: Yamaha RX-V6ABL, 7.2-Channel Network A/V Receiver with MusicCast
Brand: Yamaha
SKU: YHRX-V6ABL
Availability: InStock

by Yamaha

SKU YHRX-V6ABL

Yamaha RX-V6A 7.2-Channel Network A/V Receiver with MusicCast

Up to 100W per Channel at 8 Ohms
YPAO Sound Customization
4K UHD Upscaling & Pass-Through
Dolby Atmos & DTS:X Support

Enjoy 7.2-channel surround sound with your favorite speaker system and the Yamaha RX-V6A 7.2-Channel Network A/V Receiver.

It has Bluetooth and Wi-Fi built-in for wireless connection to your compatible smart devices. Various streaming music services are built-in for convenient streaming.

Features
Overview
Specs

High slew rate design
17 DSP programs
Dialog Level Adjustment
Virtual Presence Speaker
Virtual Surround Back Speaker
Dialogue Lift
SILENT Cinema / Virtual Cinema DSP
Pure Direct
YPAO Volume
Adaptive DRC (Dynamic Range Control)
Initial Volume and Maximum Volume Setting
0 to 500 ms audio delay
Dual-band Wi-Fi
Web Browser Control
Party Mode
Auto Power Standby
ECO Mode

Dolby Atmos and, via Future Firmware Update, Dolby Atmos Height Virtualization

Enjoy a 5.1-channel surround system and two additional overhead speakers or two Dolby Atmos elevation speakers for dramatic overhead effects and more immersive audio. For users without in-ceiling or upward-firing speakers, Dolby Atmos Height Virtualization technology can simulate the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or use all seven channels to simulate the effects of four overhead speakers.

DTS:X & DTS Neural:X

The DTS:X audio format is designed to place sound where it would naturally occur in space to create lifelike, multidimensional audio. DTS Neural:X offers enhanced immersion and realism in all your favorite movies.

CINEMA DSP 3D

CINEMA DSP 3D is designed to combine measured sound field data with digital signal processing to simulate the acoustic effects of concert halls and music clubs from around the world.

Compressed Music Enhancer

This feature uses digital signal processing and algorithms to restore data lost in the compression process, so your audio will sound closer to the original recording.

HDR10 Support; HDR10+ via Future Firmware Update

The HDMI ports on this receiver support the pass-through of HDR10 signals, so you can enjoy the vibrant, lifelike color this HDR format has to offer. HDR10+ support is scheduled to be enabled via a future firmware update.

4K/60 Hz Pass-Through; 8K/60 Hz & 4K/120 Hz via Future Firmware Update

The RX-V6A supports end-to-end 4K/60 Hz pass-through, and support for 8K/60 Hz and 4K/120 Hz is scheduled to be enabled via a future firmware update.

AV Setup Guide for Simple Initial Setup

Use this app to receive expert setup assistance for the receiver and your source devices. It also guides you through various other settings, such as speaker connections, TV and source device connections, and power amplifier assignments.

MusicCast App for Easy Use

Use your smartphone or tablet together with the MusicCast app top operate the receiver and change its settings. The app offers the same functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.

Voice Control via Alexa, the Google Assistant, and Siri

The receiver works with your Alexa, Google Assistant, and Siri devices (via AirPlay 2) for simple smart home integration.

YPAO Sound Optimization with R.S.C. and Multi-Point

Yamaha Parametric Room Acoustic Optimizer is designed to analyze the room acoustics and your system, then adjust various audio parameters to provide the best sound for your room. R.S.C. (Reflected Sound Control) analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimal sound at any of up to eight listening positions. Place the included microphone at your listening position, turn YPAO on, and the system calibrates itself.

SCENE Buttons Let You Preset Songs, Stations, and More

Program up to eight different preset scenarios using the four SCENE buttons. You can preset them for different inputs, a sound field program, Music Enhancer, HDMI output, and more. The inputs can be set to specific sources, such as an FM or internet radio station, a station on a streaming service, a USB device, or a song on your computer or NAS. Once you've set the buttons, just press one on the main unit or remote control to power on the receiver and hear what you're looking for. The buttons can be reset at any time.

Built-In Streaming Services

Synchronizing your playlists and tracks from your smartphone or computer to the receiver, music streaming services help make it easy to listen to your favorites or discover new music. Enjoy Pandora, Spotify, Amazon Music, SiriusXM, TIDAL, Deezer, Napster, and more.

Multiroom Audio with MusicCast

With optional compatible speakers, you can play your music throughout the house, including high-resolution formats like Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC, and AIFF up to 192 kHz.

AirPlay 2

AirPlay 2 adds the ability to stream Apple Music and other compatible streaming services to multiple MusicCast devices throughout your home. Control it from your iPhone or iPad, link it with a HomePod, or use voice control and ask Siri for what you want.

eARC

eARC (Enhanced Audio Return channel) delivers full-resolution, multichannel audio formats like Dolby TrueHD and DTS-HD through your existing HDMI connection from your compatible display to provide a realistic surround sound experience.

Zone 2

>With Zone 2-compatible speaker terminals, the RX-V6A can send an A/V source from the main room to a second room for playback. This can be used to have one source play in both rooms or for playback of two different sources.

Dedicated Phono Input

The dedicated phono input terminal lets you connect your turntable for playback of your vinyl collection.

MusicCast Surround with Optional MusicCast Speakers

Add your MusicCast 50 or two MusicCast 20 wireless speakers to enjoy MusicCast Surround, creating a 5.1-channel home theater with wireless surround sound that provides realistic sound with a clean, clutter-free setup.

Channels	7.2
Power Output per Channel	2-Channel Driven: 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD
DTS Compatibility	DTS-HD Master Audio, DTS:X
Dolby Compatibility	Dolby Atmos, Dolby Digital Plus, Dolby TrueHD
Auro 3D Support	No
Supported File Formats	11.2 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WMA
DAC	384 kHz / 32-Bit (BB PCM5102A)
HDR Compatibility	HDR10
Pass-Through Support	4K60p
Upscaling	4K UHD
GUI	Yes

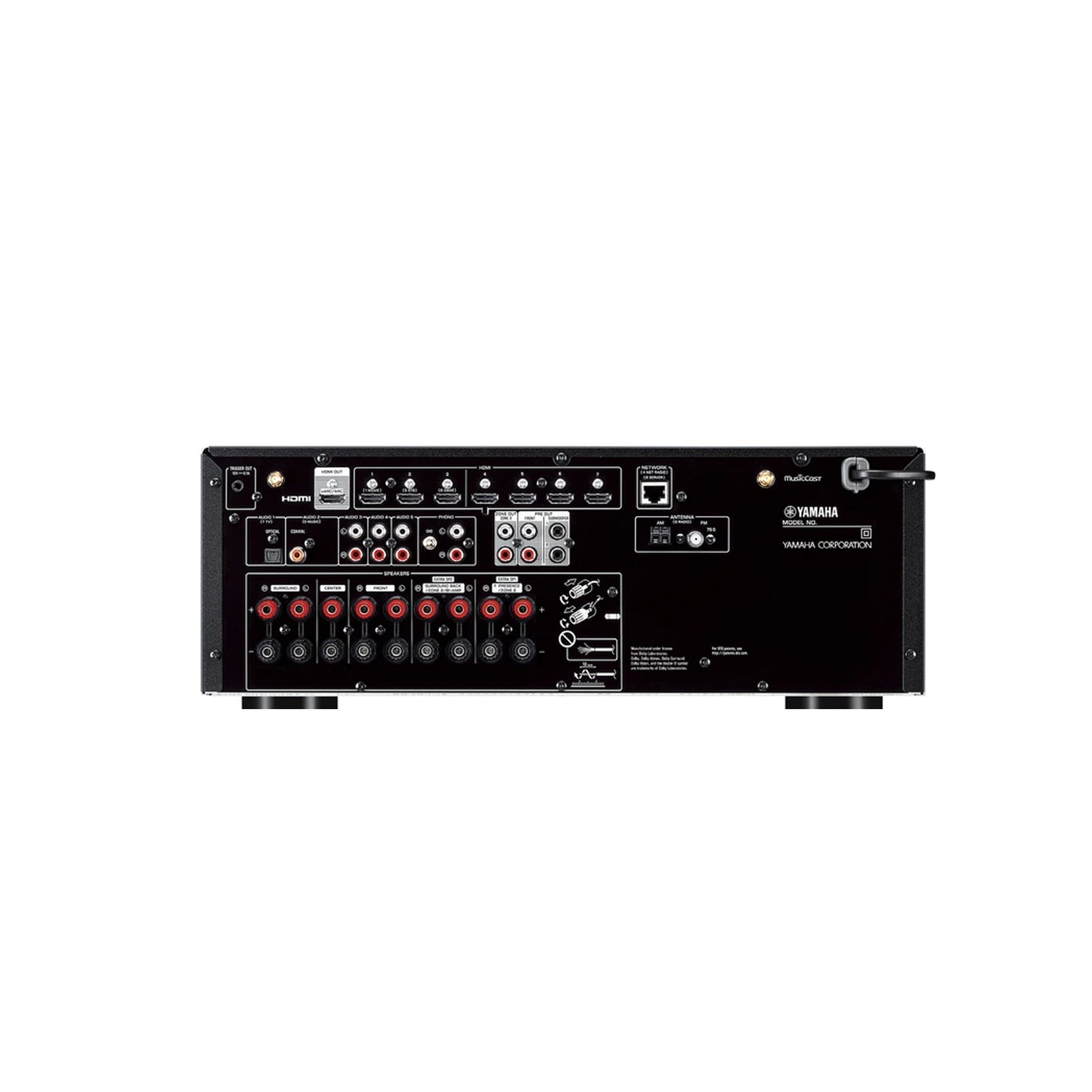

Rear A/V Inputs	7 x HDMI 1 x Optical TOSLINK 1 x Digital Coaxial 3 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs	1 x HDMI 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone 2 Pre-Out 1 x Stereo RCA Pre-Out
Front I/O	1 x 1/4" / 6.35 mm Headphone Output 1 x USB Type-A 1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O	1 x RJ45 (Ethernet) 2 x Bluetooth/Wi-Fi Antenna Terminal Input 1 x FM Antenna Terminal Input 1 x 1/8" / 3.5 mm (12 V Trigger) Output
Speaker Connectors	9 x Binding Post Pairs
HDCP Support	Version 2.3
Audio Return Channel (ARC)	Yes, eARC
HDMI CEC	Yes
Media Card Slot	None
A/B Speaker Selection	None
Bi-Amp Capability	Yes
Supported Audio Codecs	AAC, SBC
Wireless Audio Protocols	AirPlay 2, MusicCast
Virtual Assistant Support	Amazon Alexa, Google Assistant
Tuner Type	AM, FM
Power Consumption	Standby: 0.1 W
Dimensions (W x H x D)	17.1 x 9.6 x 14.9" / 43.4 x 24.4 x 37.8 cm (Antenna Up) 17.1 x 6.8 x 14.9" / 43.4 x 17.3 x 37.8 cm (Antenna Down)
Weight	21.6 lb / 9.8 kg
Warranty Length	Limited 2-Year Warranty
