Yamaha | SKU:
YHRX500A

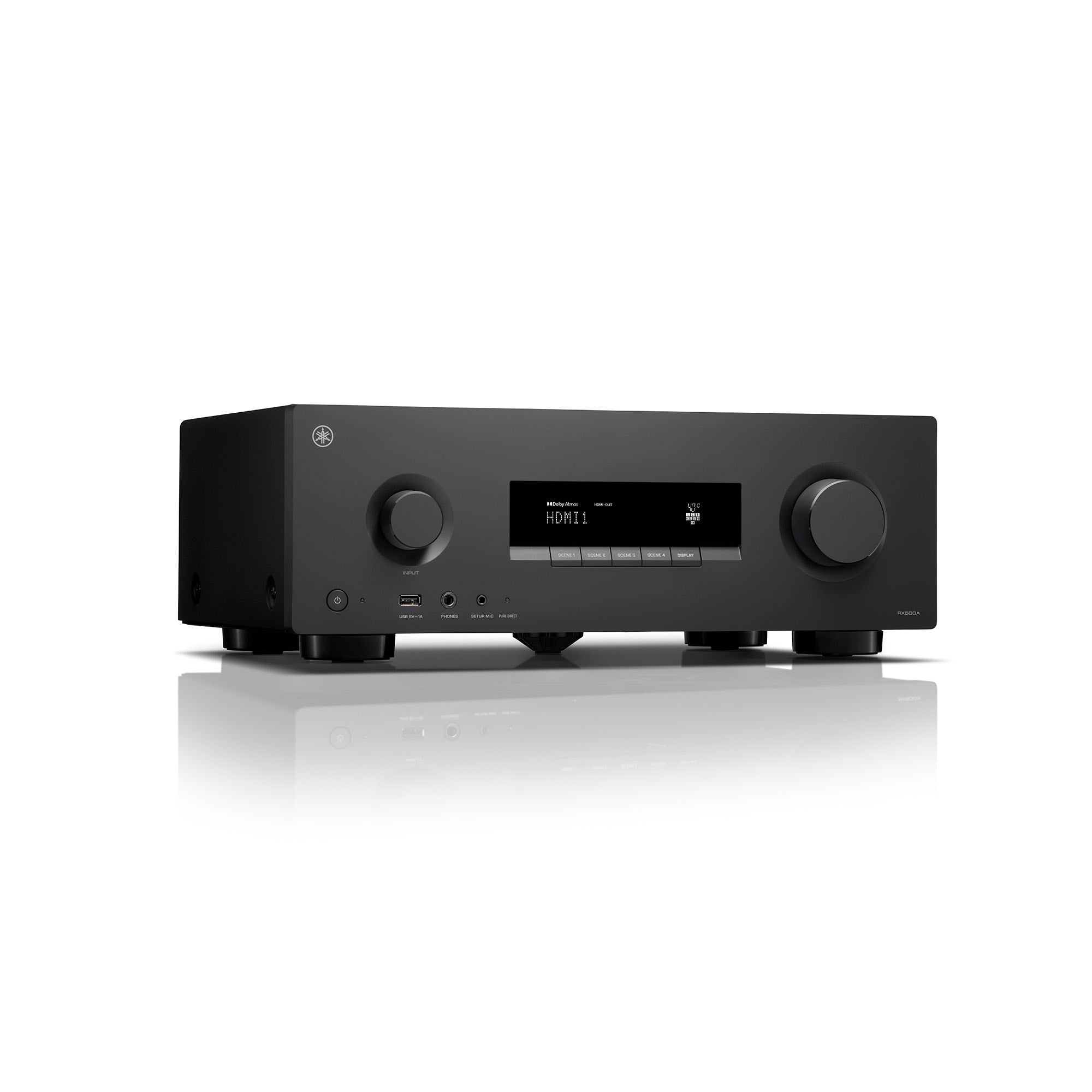

Yamaha RX500A, 7.2 Channel Network A/V Receiver
MPN: RX500A
⚠️ Authorized Dealers Only
Pricing and checkout are disabled unless you're an authorized dealer. Please log in or apply below.
Yamaha RX500A, 7.2 Channel Network A/V Receiver is backordered and will ship as soon as it is back in stock.
Description
Description
Step up to enhanced immersion and streaming with this 7.2 channel home theater AV receiver, featuring Dolby Atmos®, 4K120/8K HDMI, Wi-Fi, Bluetooth, and support for Spotify Connect, Google Cast, AirPlay, and more.
Features
Step up to enhanced immersion and streaming with this 7.2 channel home theater AV receiver, featuring Dolby Atmos®, 4K120/8K HDMI, Wi-Fi, Bluetooth, and support for Spotify Connect, Google Cast, AirPlay, and more.
- 7.2-ch surround sound with 5.2.2-ch flexibility
- Dolby Atmos and DTS:X® immersive audio
- Next-gen video with 4K120/8K60 HDMI (4-in/1-out) and HDMI eARC
- Advanced HDR support, including Dolby Vision® and HDR10+
- Room Correction automatically optimizes sound for your space
- Wi-Fi streaming options—including Spotify Connect, Google Cast, AirPlay, TIDAL Connect, and Qobuz Connect—plus Bluetooth® Multipoint.
- Scene buttons for instant access to your favorite listening modes
Specifications
RX500A |
RX300A |
|
|---|---|---|
Channels |
7.2 |
5.2 |
Decodable Channels |
7.1 |
5.1 |
Amp Channels |
7 |
5 |
Output Power |
70 W (8 ohms, 20 Hz - 20 kHz, 0.09% THD, 2-ch driven) / 145 W (6 ohms, 1kHz, 10% THD, 1ch driven) |
70 W (8 ohms, 20 Hz - 20 kHz, 0.09% THD, 2-ch driven) / 145 W (6 ohms, 1kHz, 10% THD, 1ch driven) |
Bi-amp Capable |
Yes |
Yes |
Surround Sound Decoding Formats |
Dolby Atmos, Dolby True HD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS-HD High Resolution, DTS-Express, DTS, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, DTS 96/24, DTS:X |
Dolby Atmos, Dolby True HD, Dolby Digital Plus, Dolby Digital, DTS |
Surround Sound Post Decoding Formats |
Dolby Surround, DTS Neural:X |
Dolby Surround |
Network Decoding Formats |
MP3, MPEG4-AAC, WMA, WAV, FLAC, Apple Lossless, AIFF |
- |
USB Decoding Formats |
MP3, MPEG4-AAC, WMA, WAV |
MP3, MPEG4-AAC, WMA, WAV |
HDMI Decoding Formats |
PCM (8ch max) |
PCM (8ch max) |
Sound Modes |
Pure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night |
Pure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night |
Zone B |
Yes |
Yes |
Room Calibration |
Room Correction |
Room Correction |
Other Features |
Dialogue Level, Subwoofer Trim, Extra Bass, Lip Sync |
Dialogue Level, Subwoofer Trim, Extra Bass, Lip Sync |
HDMI |
4 Inputs / 1 Output |
4 Inputs / 1 Output |
HDMI Features |
HDMI 2.1, 8K 60Hz/4K 120Hz, eARC, ARC, VRR / ALLM / QMS, HDCP 2.3, CEC, Auto Lip Sync, Deep Color, x.v. Color, HD audio playback |
HDMI 2.1, 8K 60Hz/4K 120Hz, eARC, ARC, VRR / ALLM / QMS, HDCP 2.3, CEC, Auto Lip Sync, Deep Color, x.v. Color, HD audio playback |
High Dynamic Range Support |
HDR (High Dynamic Range), HDR10+, Dolby Vision, Hybrid Log-Gamma |
HDR (High Dynamic Range), HDR10+, Dolby Vision, Hybrid Log-Gamma |
Speaker Output |
7 (binding post terminals) |
5 (binding post terminals) |
Subwoofer Pre-outs |
2 |
2 |
HDMI |
4 Inputs / 1 Output |
4 Inputs / 1 Output |
Analog RCA Input |
2 |
2 |
Optical Input |
1 |
1 |
Coaxial Input |
1 |
1 |
USB |
1 (Audio File Playback from a Mass Storage Device, Firmware Updates) |
1 (Audio File Playback from a Mass Storage Device, Firmware Updates) |
FM/AM Tuner |
Yes / No |
Yes / No |
Bluetooth |
Yes (Ver. 5.3, Multipoint) |
Yes (Ver. 5.3, Multipoint) |
Streaming |
Spotify Connect, Qobuz Connect, TIDAL Connect, Google Cast, AirPlay 2, Net Radio, Podcasts |
- |
Wi-Fi / Ethernet Port |
Yes / Yes |
- |
Headphone Output |
1 |
1 |
Power Consumption |
260 W |
260 W |
Standby Power Consumption |
≤0.3 W |
≤0.3 W |
Auto Power Standby |
Yes |
Yes |
Dimensions (Unit) |
434 W x 157 H x 319 D mm; 17-1/8" W x 6-1/8" H x 12-1/2" D |
434 W x 157 H x 319 D mm; 17-1/8" W x 6-1/8" H x 12-1/2" D |
Dimensions (Package) |
525 W x 230 H x 400 D mm; 20-5/8" W x 9-1/8" H x 15-3/4" D |
525 W x 230 H x 400D mm; 20-5/8" W x 9-1/8" H x 15-3/4" D |
Weight (Unit) |
8.0 kg; 17.6 lbs. |
7.6 kg; 16.8 lbs. |
Weight (Package) |
9.4 kg; 20.7 lbs. |
9.1 kg; 20.1 lbs. |
App |
Audio Connect |
- |
Included Accessories |

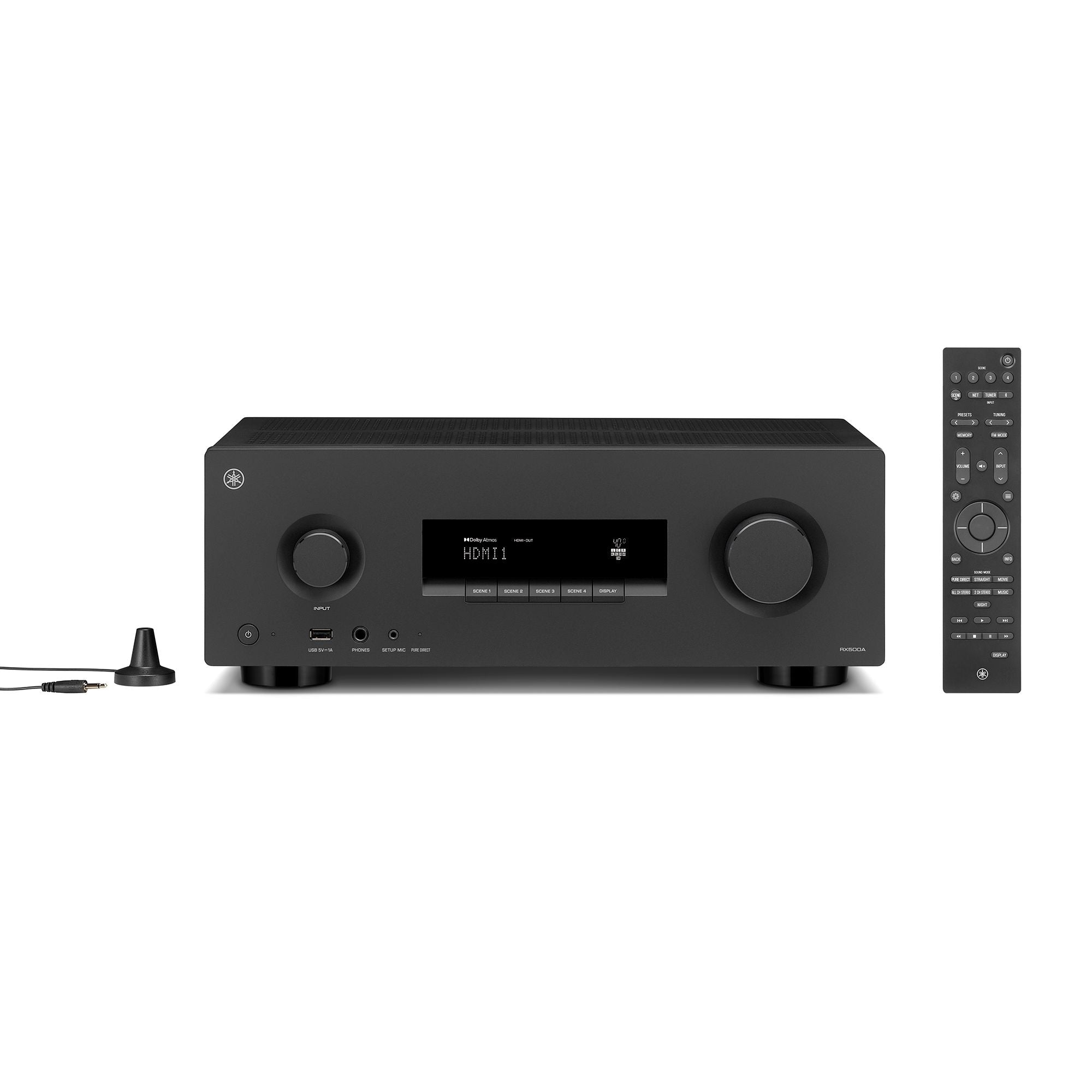

Remote Control, Batteries, FM Antenna, Setup Mic, Microphone Stand, Quick Guide, Safety Guide |
Remote Control, Batteries, FM Antenna, Setup Mic, Microphone Stand, Quick Guide, Safety Guide |
