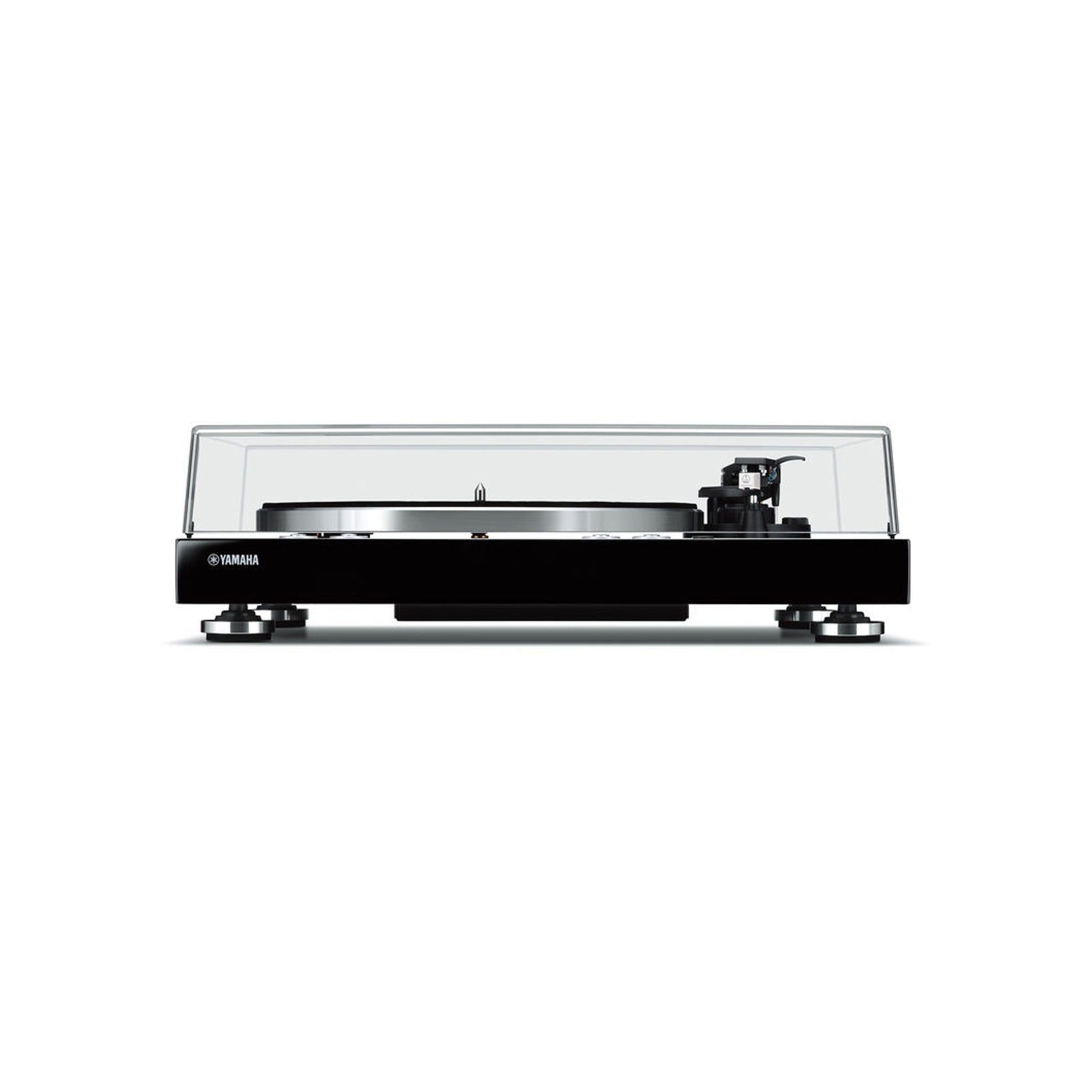

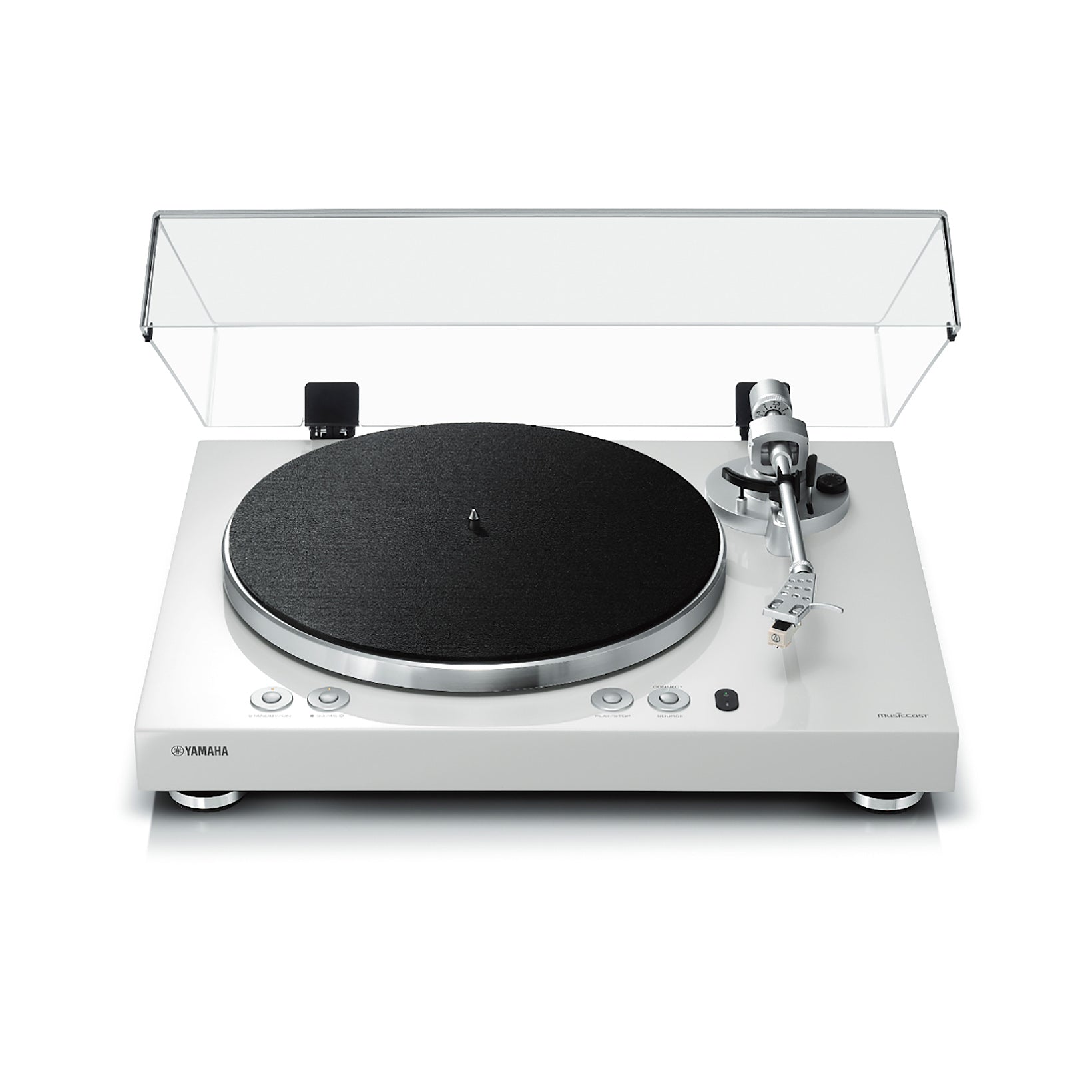

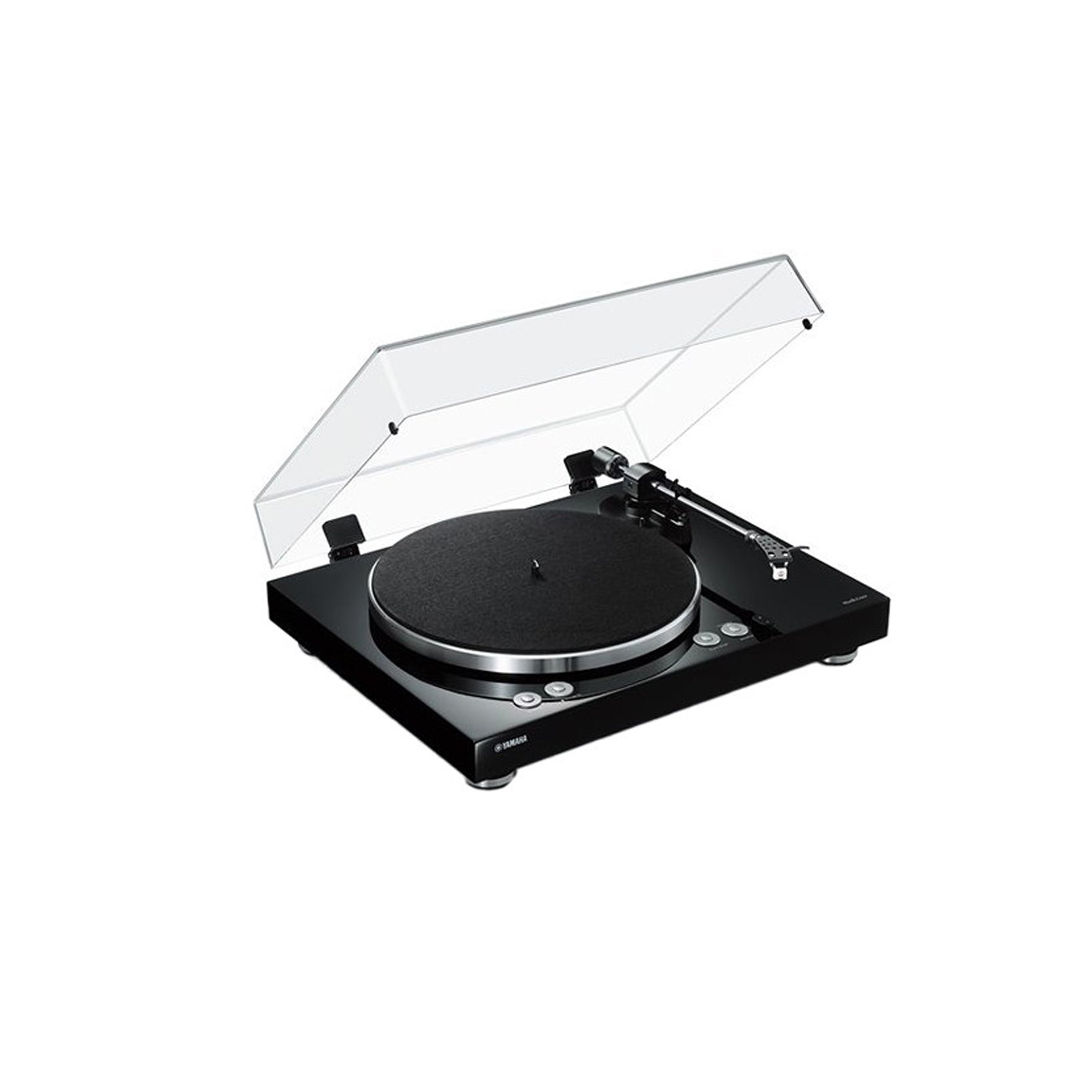

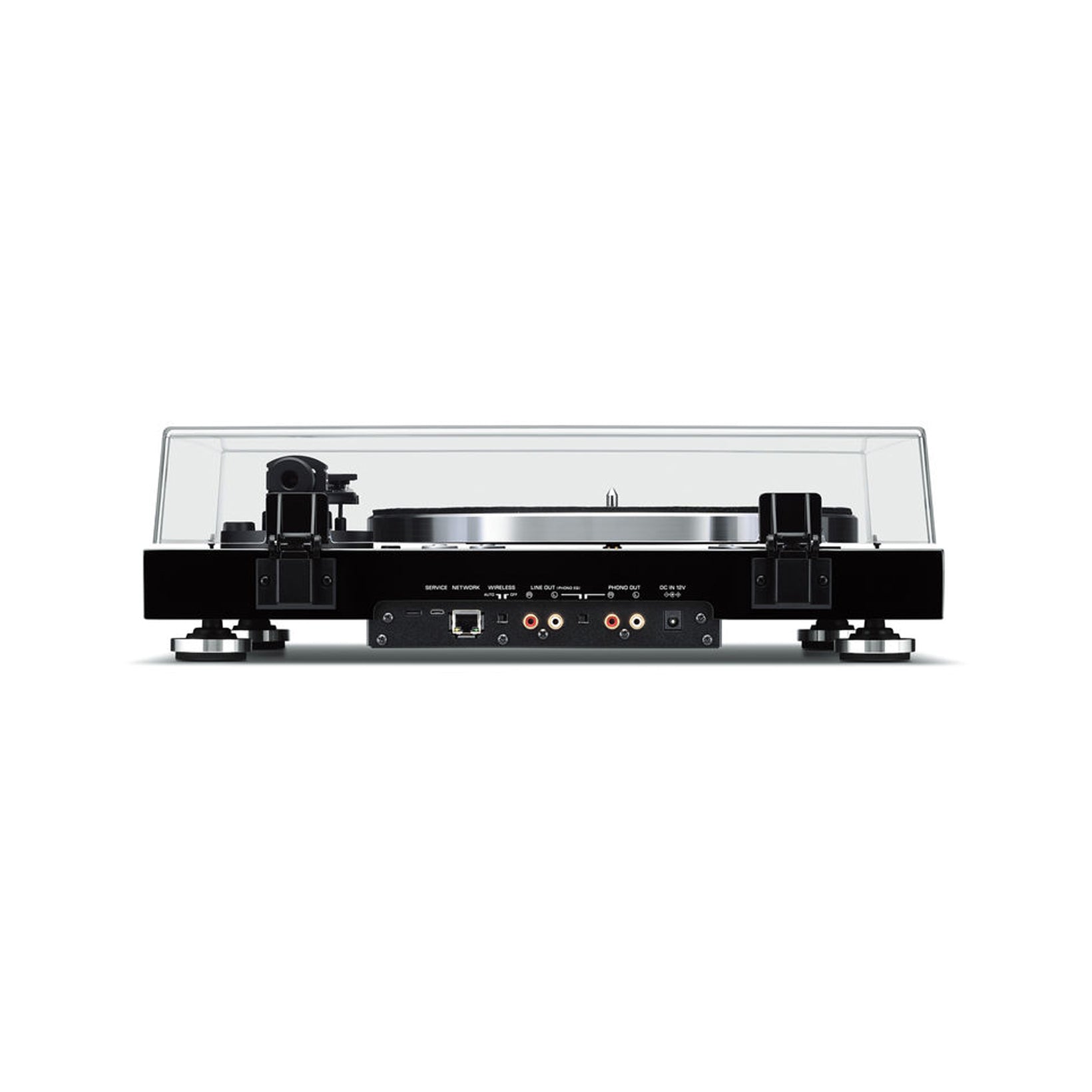

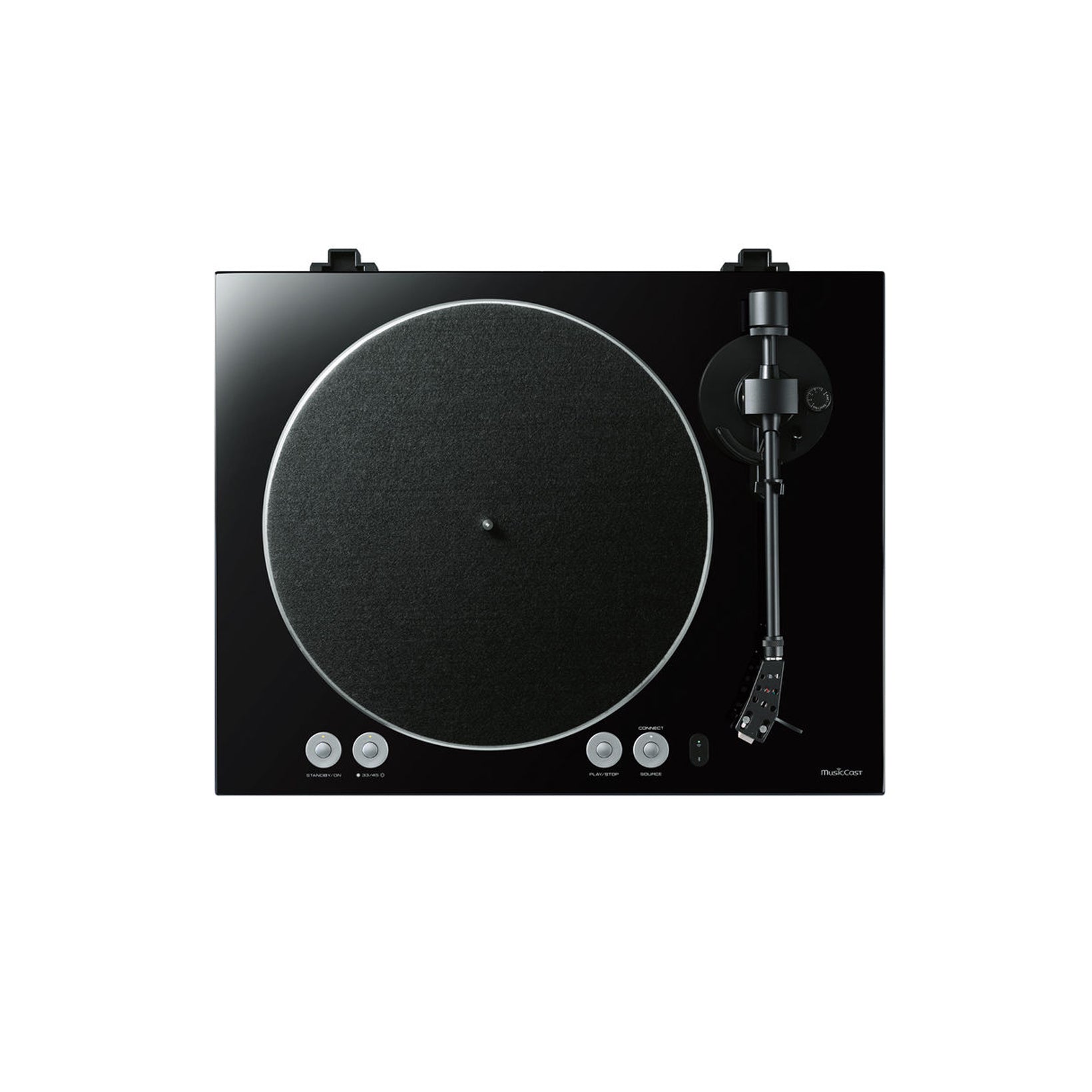

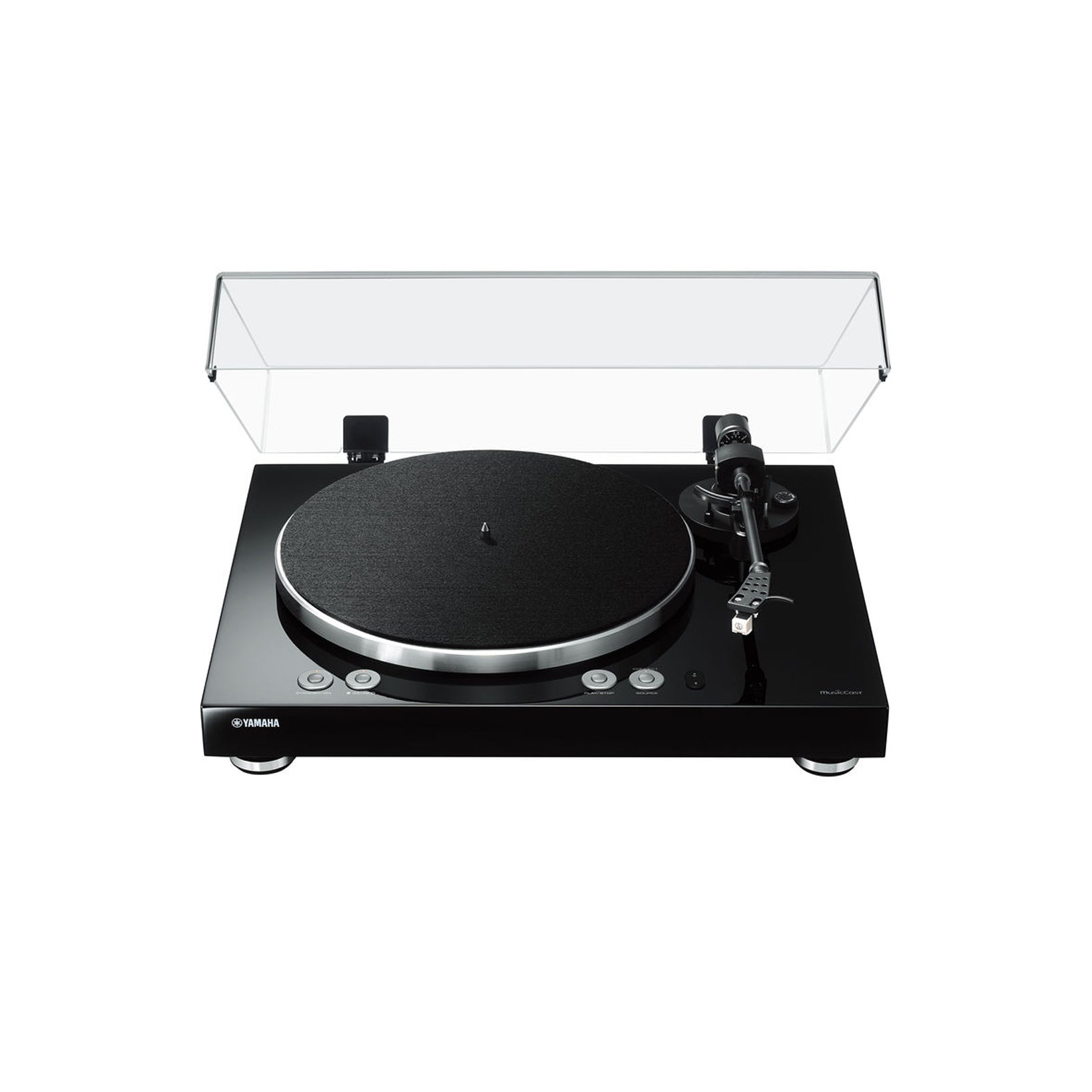

Yamaha TT-N503 Turntable, (Black/White)
by Yamaha
SKU YHTT-N503BL
Yamaha TTN503BL MusicCast
Vinyl Unleashed. Stream your records and music services to MusicCast speakers with no wires attached and no receiver required. Wi-Fi connection ensures exceptional sound quality. With a MusicCast multi-room system, hear your records throughout your entire home.
- Create a stereo system with MusicCast wireless speakers. Place the turntable and speakers wherever you want!
- Expand to a multi-room audio setup by syncing with MusicCast wireless speakers in other rooms.
- Stream music services with Wi-Fi®, Bluetooth®, AirPlay® or Spotify Connect.
- Yamaha Hi-Fi quality built for accuracy and sonic purity. Perfect for the audiophile or beginner vinyl collector.
- Built-in phono preamp gives you flexibility to connect any audio system, adding streaming service playback to your legacy Hi-Fi system.
Wireless Transmission
- Giving an 'old-school' medium a modern spin, wirelessly connect the MusicCast VINYL 500 turntable to your MusicCast speakers and other devices to enjoy your record collection without all the cables.
Designed for Versatility
- Hit the end of a record and don’t want the music to stop? With the VINYL 500 you can keep the music going by streaming from your music services via Wi-Fi, AirPlay or Spotify Connect. Connect the MusicCast VINYL 500 to your existing stereo equipment and get ready for a serious upgrade to your setup.
MusicCast Multi-Room Technology
- Leave the room and let your music follow. Featuring MusicCast multi-room technology, share and listen to your record collection throughout the house. Stream your vinyl collection to a range of MusicCast devices — everything from speakers to sound bars.
App Control
- Take control of your music streaming and your wireless setups with the MusicCast app. Create favorites, control your multi-room vinyl experience or MusicCast Stereo system. Geek out on all the options and settings to really make your music yours.
Voice Control with Alexa and MusicCast
- Voice control completes the picture when it comes to the turntable of the future. Connect to Amazon Alexa for effortless, hands-free control of your music streaming and multi-room setup.
| File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC / WAV / AIFF: up to 192 kHz / 24-bit, DSD: up to 11.2 MHz |
|---|---|
| Ethernet | Yes |
| Wi-Fi | Yes (2.4 / 5 GHz) |
| AirPlay | Yes |
| Version/Profile | Ver. 4.2 / A2DP, AVRCP |
| Audio Codec | SBC, AAC |
| Maximum Communication Range | 10 m / 32.8 ft. 10 in. (without interferene) |
| Drive Method | Belt drive |
| Motor | DC motor |
| Rotation Speed | 33-1/3 rpm, 45 rpm |
| Rotation Speed Variation | ±2% |
| Wow And Flutter | 0.2% |
| Platter | Aluminium die-cast (Diameter 30 cm) |
| Output Level | 450 mV (-7 dBV, with RIAA EQ, 1 kHz, 3.54 cm / sec), 2.5 mV ± 3 dBV (without RIAA EQ, 1 kHz, 3.54 cm / sec) |
| Signal To Noise Ratio | 67 dB or higher (A-weighted, 20 kHz, LPF) |
| Tonearm | Static balance straight tonearm |
| Effective Arm Length | 223.5 mm |
| Overhang | 19 mm |
| Stylus Pressure Adjustment Range | 0-4 g |
| Acceptable Cartridge Weight | 15.5-19 g (including headshell) |
| Cartridge Type | MM type |
| Output Voltage | 2.5 mV (1 kHz, 3.54 cm / sec) |
| Stylus Pressure | 3.5 ± 0.5 g |
| Cartridge Weight | 5.0 ± 0.3 g |
| Cartridge Height | 17.0 ± 0.7 mm |
| Head-shell Weight | 10 g (including screws, nuts and wires) |
| Output Terminal | RCA: 2 (PHONO, LINE) |
| Output Level | 2.0 ± 0.3 V (1 kHz, 0 dB, Fs 44.1 kHz) |
| Signal to Noise Ratio | [IHF-A network] 110 dB or higher (Infinity zero, Fs 44.1 kHz) |
| Dynamic Range | 100 dB or higher (1 kHz, -60 dB, Fs 44.1 kHz) |
| Harmonic Distortion | 0.003 % or lower (1 kHz, 0 dB, Fs 44.1 kHz) |
| Frequency Response | Fs 44.1 kHz; 2 Hz to 20 kHz (+0 / -3 dB), Fs 48 kHz; 2 Hz to 24 kHz (+0 / -3 dB), Fs 96 kHz; 2 Hz to 48 kHz (+0 / -3 dB), Fs 192 kHz; 2 Hz to 96 kHz (+0 / -6 dB) |
| Power Consumption | 6 W |
| Eco-Standby (reference date) | 0.3 W |
| Standby Power Consumption | 1.4 W (Network standby ON, Bluetooth® standby OFF, Wired), 1.8 W (Network standby ON, Bluetooth standby ON/OFF, Wi-Fi), 1.6 W (Network standby ON, Bluetooth standby ON, Wired) |
| Dimension (W×H×D) | 17-3/4” x 5-3/8” x 14-1/2” |
| Weight | 12.6 lbs. |
