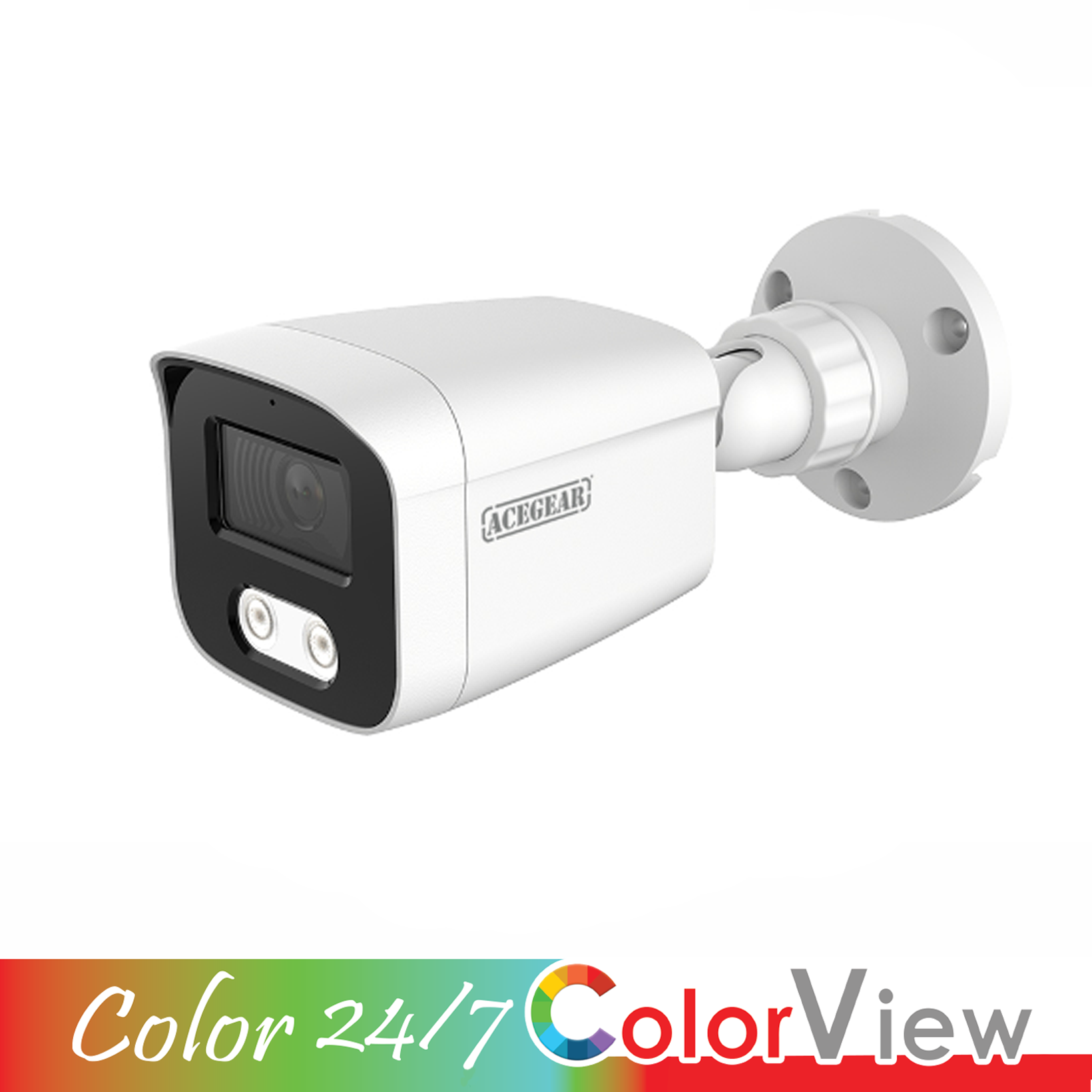

Acegear CT3809-CV (4K) Bullet, TVI 2.8mm Fixed Lens, Color View 80ft, WDR,

by Acegear
SKU AGCT3809-CV
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • Resolution: 4K / 8MP 3840 x 2160
  • Sensor: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
  • Lens: 2.8mm Fixed
  • Functions: 3DNR, WDR, DEFOG
  • Menu: OSD
  • Light distanceUp to 82ft (30m)
  • Multiprotocol Output: TVI
  • Protection: IP67
  • Warranty: 3 Years

Acegear CT3809-CV 4K/8MP ColorView Outdoor Fixed Bullet Camera features an ƒ/1.0 lens aperture for maximum light gathering capability to provide full color imaging in extremely dark settings.

The camera also contains a powerful auxiliary white light source to enhance colors and illuminate the scene when it approaches total darkness or on a defined schedule.

The 2.8 mm fixed lens option is optimized for capturing a wide horizontal field of view. 120 dB True WDR (Wide Dynamic Range) ensures that ideal images are captured regardless of the lighting conditions.

Video Output Mode AHD: 8M@15fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps;
CVI: 8M@15fps/12.5fps, 4M/2M@30fps/25fps
TVI: 8M@15fps/12.5fps, 5M@20fps/12.5fps, 4M/2M@30fps/25fps;
Image Sensor 1/2.8" SONY Starvis Back-illuminated CMOS sensor
Image Resolution 8M:3840*2160 5M:2592*1944
4M:2560*1440 2M:1920*1080
TV System PAL/NTSC
Electronic Shutter Auto
Scanning System Progressive Scan
Focus Length Board Lens 2.8mm
Focus Control Fixed
Lens Type Fixed
IR Cut Filter YES
Infrared LED No, Support Warm light LED
3030*2
Light Range up to 80 Ft. (25M)
IR Status AGC Auto Control
Day/Night Color
OSD Menu  YES
WDR  YES
UTC  YES
Noise Reduction  3DNR
White Balance  AUTO / MANUAL
Gain Control  AUTO
Housing IP67
Bracket YES
Operation Temperature -10℃ ~ +60℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%,700mA
Dimension 154(W)x70.5(H)x70.5(D)mm
Weight 370g
