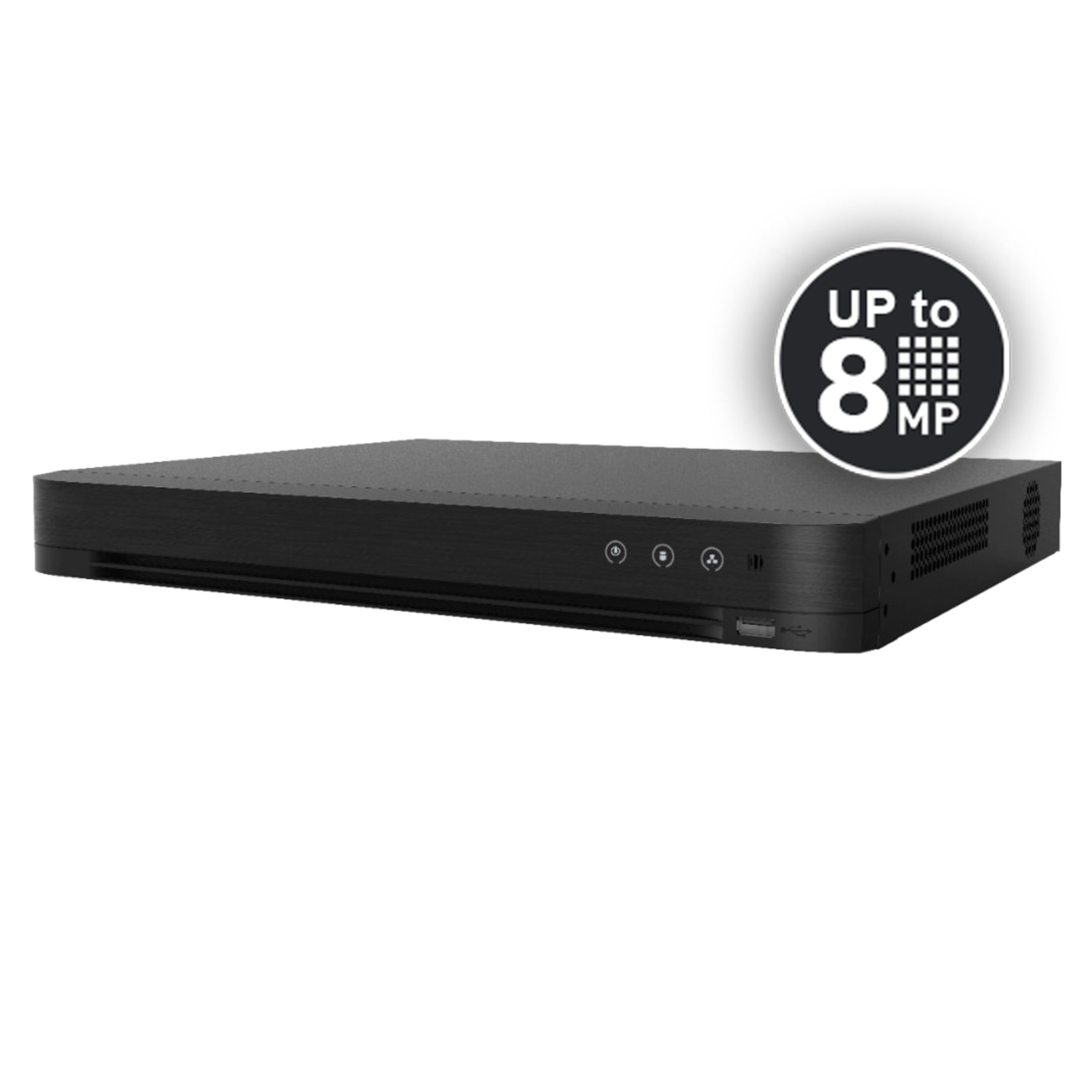

Acegear DVRT508SM2 (8-CH) 2-SATA Interface, 4K, 8-BNC, 8-IP, AOC, UL Listed.

by Acegear
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

  • Video Input: 8-channel BNC input + Up to 8 IP channels
  • Resolution: Up to 8MP/4K
  • Video Output: 1-ch HDMI output, 1-ch VGA output at up to (3840x2160)
  • Support: 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), IP cameras with adaptive access.
  • Hard Drive: 2 SATA Up to 10 TB each
  • Audio: 1ch output, 1ch two way input , Over Coax
  • App: Guarding vision
  • Warranty: 1 Year

The Acegear AGDVRT508SM2 DVR is capable to record analog HD cameras up to 8MP in resolution using very low storage thanks to the new compression H.265+, also support Deep learning-based analysis of facial detection. Besides the 16 analog cameras the DVR supports the connection of an extra 4 IP cameras up to 8MP in resolution. The system can be remote access using mobile app available for Android and Apple iOS devices, Acegear also offers a free video management software available for Windows and MacOS.

Human/Vehicle Analysis 4 channels (person / vehicle)
Facial detection and capture 1 channel (for analog HD camera)
Face recognition mode Face detection and capture
Analog inputs 8 channels BNC (1.0 VP-p, 75 Ohm), supports coaxitron connection
HDCVI cameras 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
AHD cameras 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
TVI cameras 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
CVBS cameras PAL / NTSC
IP cameras

4-ch (up to 12-ch)
Enhanced IP mode ON:
8-ch (up to 16-ch), each up to 4 Mbps; Up to 8 MP resolution ;

Support H.265+/H.265/H.264+/H.264 IP cameras

Audio Input 1-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
Audio Ouput 1-ch, RCA (Linear, 1 KΩ)
Two-way conversation 1ch RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Video output interfaces 1 HDMI, 1 VGA, 1 TV
Video output resolution HDMI: 4K (3840x2160); VGA: 1920x1080; CVBS: 704 x 576
Multi-screen mode 1/4/8
Video compression H.265 Pro + / H.265 Pro / H.265 / H.264 + / H.264
Permission support 8MP / 5MP / 4MP / 3MP / 1080p / 720p / D1
Frame rate (main stream) 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/3MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Frame rate (sub stream) WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video bitrate 32 Kbps - 10 Mbps
Audio compression G.711u
Ethernet 1- RJ45 (10M / 100M / 1000M)
Network protocols TCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP ™, HTTPS, ONVIF
Max. number of users 64
Internal HDD 2 SATA up to 10TB
USB F:1x - USB 2.0, R:1x - USB 3.0
Serial Interface RS-485 (half-duplex)
Power Supply DC12V, 2.8A
Power consumption <15W (without HDD)
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Humidity 10% ~ 90%
Dimensions 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight ≤ 1.78 kg (3.9 lb)
