Acegear V3088 Digital (Coaxial or Toslink) to Analog Audio Converter.

by Acegear
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Audio Converter, Digital to Analog Audio Decoder with Digital Optical Toslink and Coaxial Inputs to Analog RCA and AUX 3.5mm (Headphone)

This Digital to Analog Audio Converter is designed for either home or professional audio switching.
It converts Coaxial or Toslink digital audio signals to analog L/R audio or 3.5mm audio Jack and available for connection to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to install.

  • Before installation, please make sure all devices you wish to connect have been turned off.
  • Connect the audio source device to the Converter using appropriate Toslink or Coaxial cables.
  • Connect the A/V Receivers or Amplifiers to the Converter using appropriate L/R cable
  • Insert the DC side of 5v power supply into the converter and then connect the AC side of the power supply into the wall outlet.

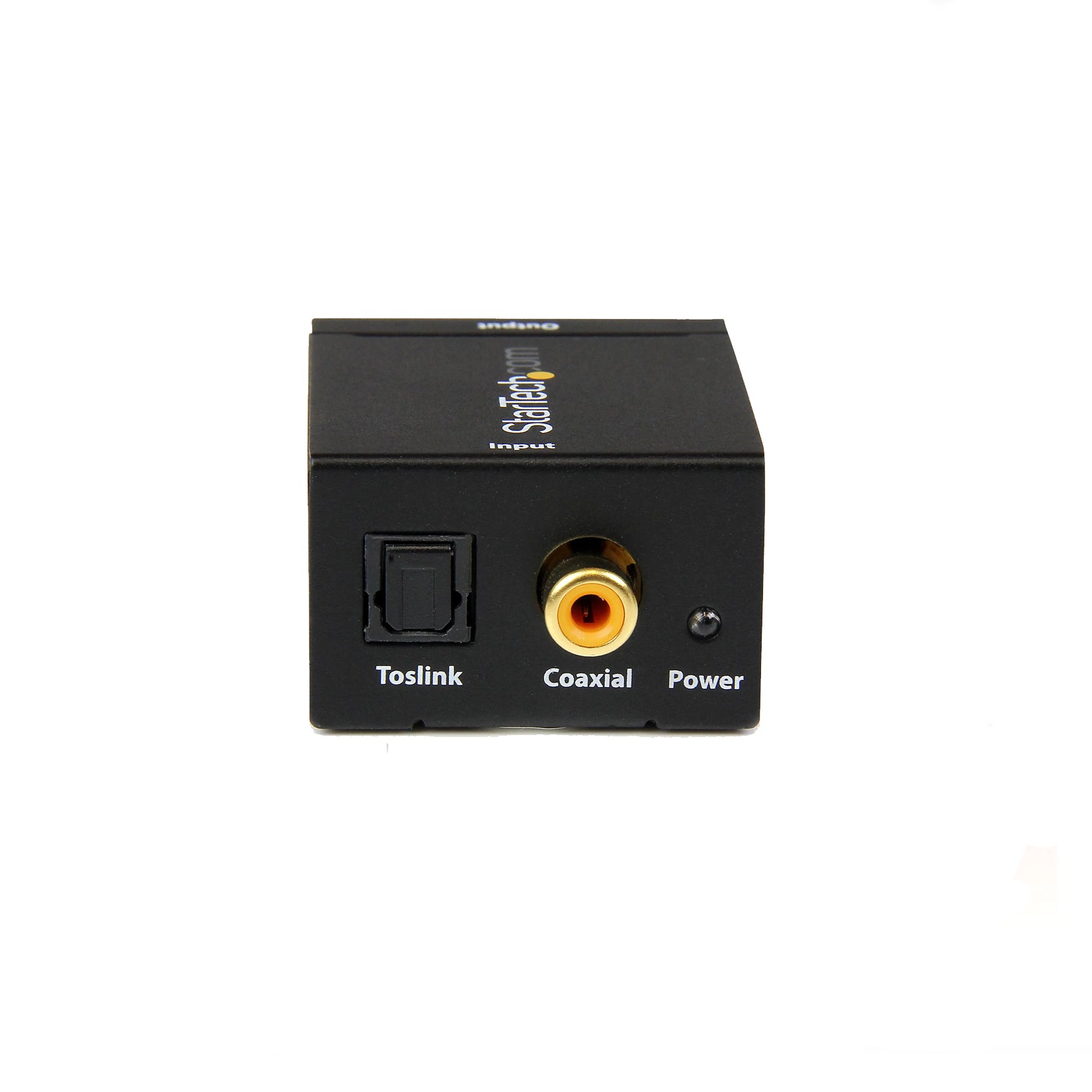

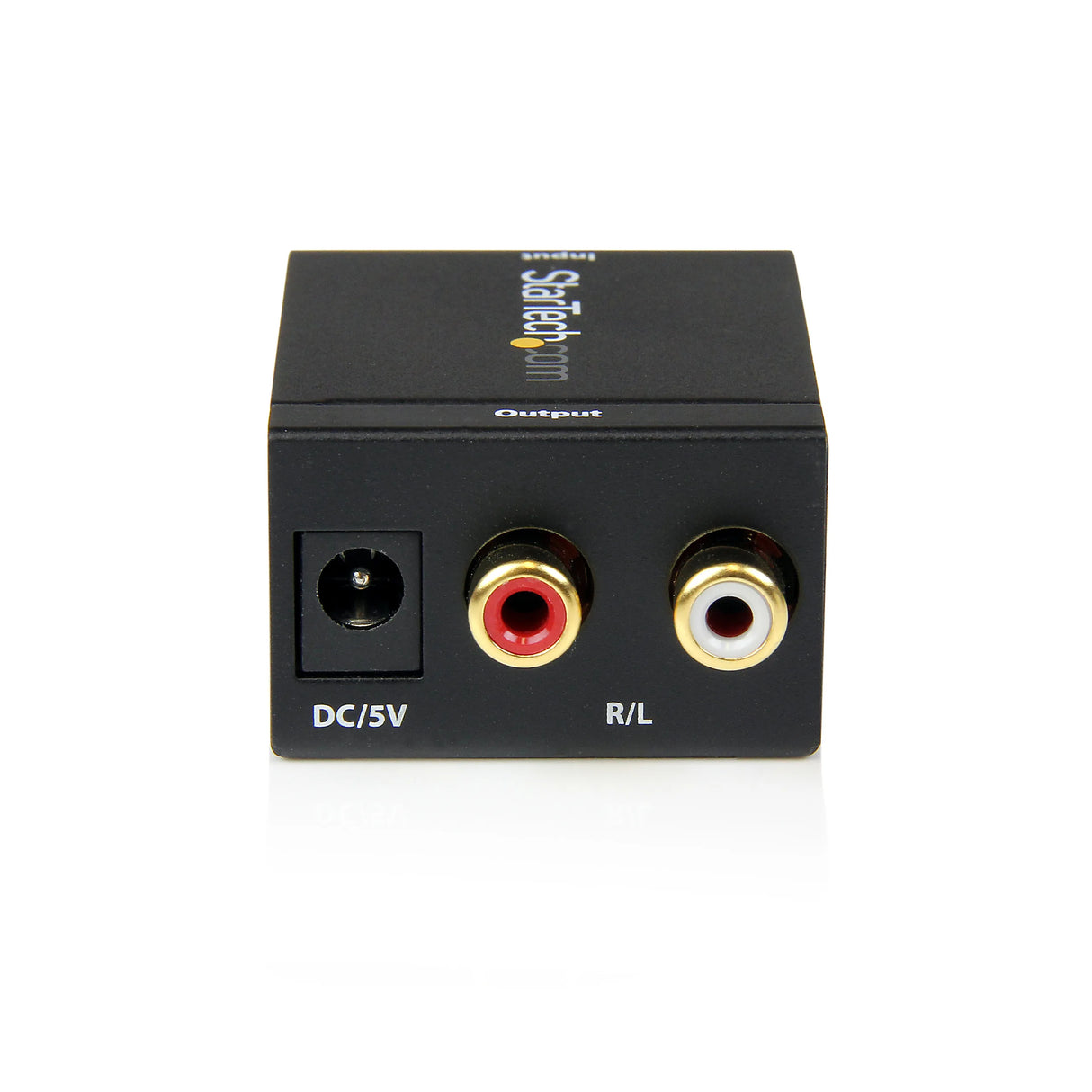

  • Input audio connector: Toslink, 1 x RCA(Coaxial) Output audio connector: 2 x RCA(R/L) +3.5mm Jack
Item Dimensions 5.9 x 4.3 x 1.7 in
Weight 0.6 Lbs
Package 1 Pcs
