Russound SDB-2.1 2 Pair Dual Source Speaker Selectors with Volume Control

SKU RSSDB2.1
ID: 12961388953672




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

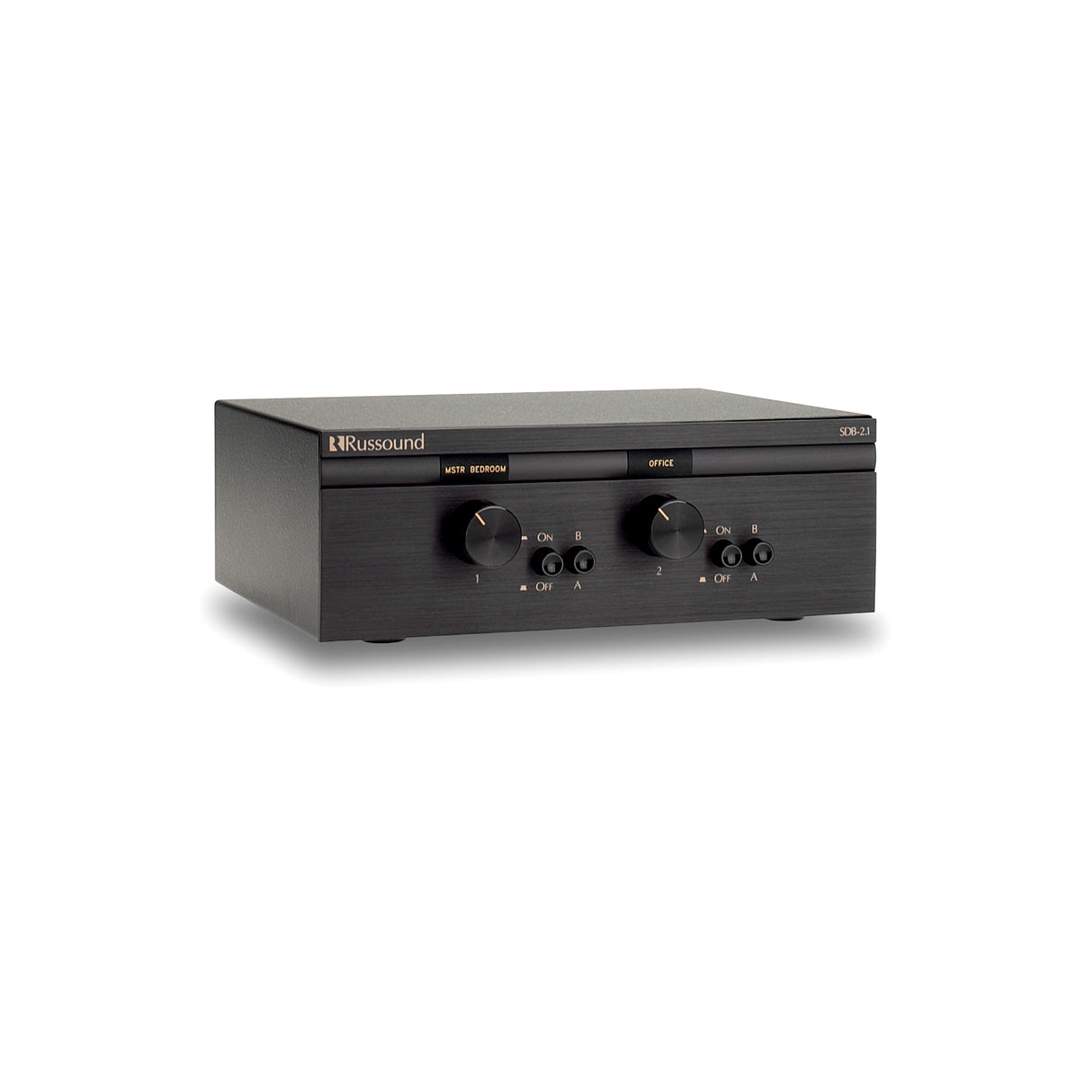

SDB-2.1 - 2 Pair, Dual Source Speaker Selectors with Volume Control

The SDB-2.1 is a highly efficient dual-source speaker selector that controls two pairs of speakers.The front panel provides a separate volume control for each speaker pair, allowing you to adjust the volume in each room from one convenient location.With two amplifier inputs, the SDB-2.1 allows you to choose a separate program in each room. Each zone also has an on/off switch, which allows you to keep the volume control at a set level while turning the speakers on or off.
The SDB-2.1 uses high-quality impedance-matching autoformers to maintain a safe operating load at the amplifier while distributing maximum power throughout your system. Designed for use with either 4- or 8-ohm speakers, the SDB-2.1 is equipped with internal jumpers to select the degree of impedance matching based on the impedance of your speakers and your amplifier's impedance requirements.

  • Lets you select music and control volume in two rooms from a central location
  • Dual amplifier inputs allow a choice of program in each room
  • Printed room labels included
  • Detachable snap connectors are color coded for easy wire termination
  • Selectable impedance matching accommodates 4- or 8-ohm speakers
  • High-quality autoformers provide trouble-free performance for years
Shipping Dimensions:  10.0" (W) x 4.8" (H) x 9.7" (D)
Shipping Weight: 4.8 lbs (2.2 kg)
Connector(s): Detachable 4-pole color-coded snap connectors
Impedance Matching Type: Autoformer
Max Wire Size:  14 AWG (1.9 mm)
Power Handling: 100 watts RMS continuous per channell
Speaker Impedance: 4 ohms
Volume Control: 12 steps; total attenuation 42 dB
Zone Audio Controls: Volume knob, on/off, Amplifier A/B switch
