Simplified EXMICRO2iSW, HDMI Extender 4K over Cat6 up to 50 meters with built in Switch

SKU SMEXMICRO2iSW
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

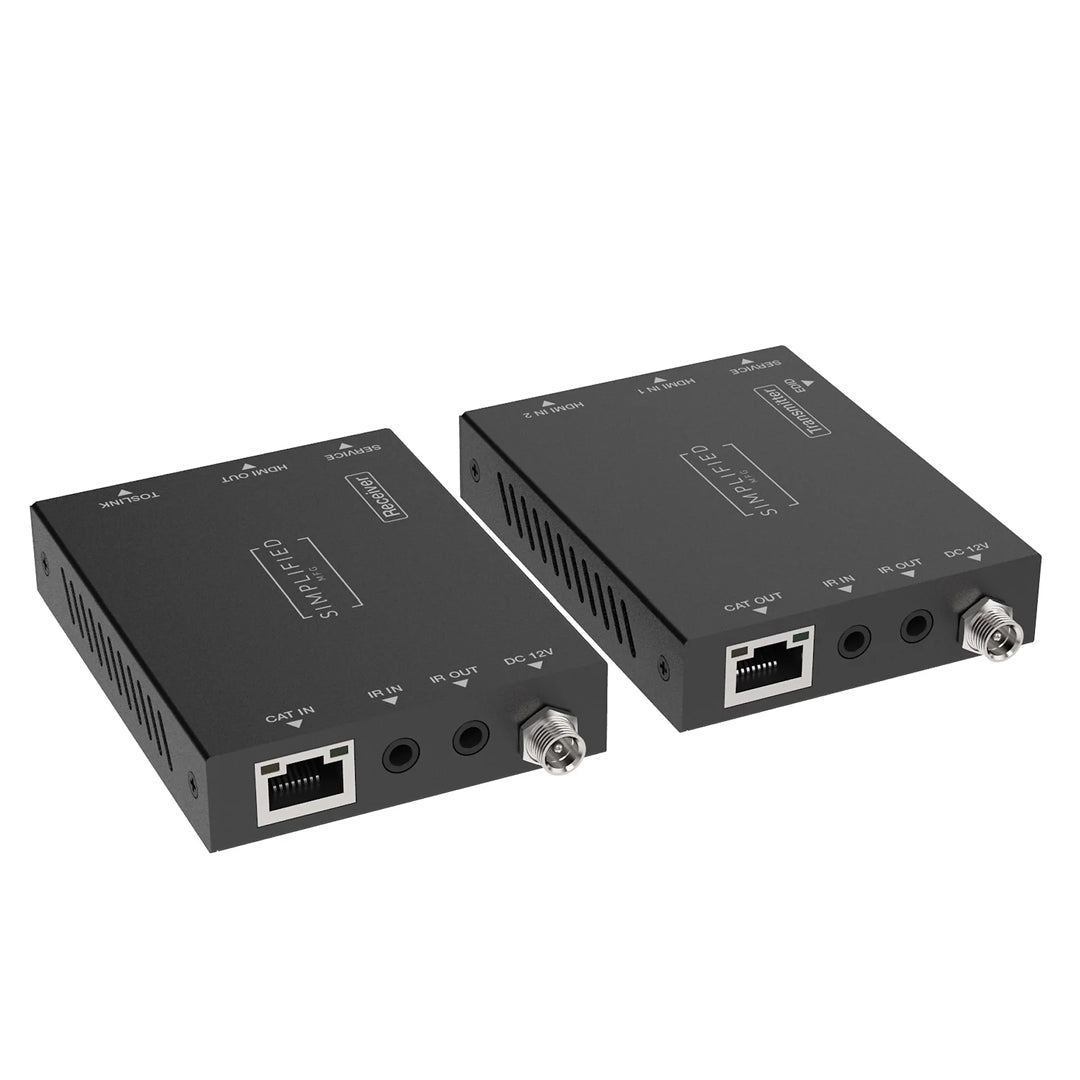

The EXMICRO2iSW is the latest extender in the EXMICRO line that adds a two input switch on the TX and an audio breakout at the RX. Like the EXMICRO2i, the EXMICRO2iSW extender supports 4K/UHD/1080p up to 50m/164ft. on Cat6/6A, has EDID, 2-Way 12V IR that is control system compatible and powers from one end (either).

The EXMICRO2iSW is perfect when you want to extend more than one source to your display. The two input switch (controllable with IR) allows you to choose and control the source from the RX end. It extends either 4K/UHD or 1080p HDMI signals up to 50m/164ft, and supports the entire HDMI 2.0b format including HDR and HDR+.

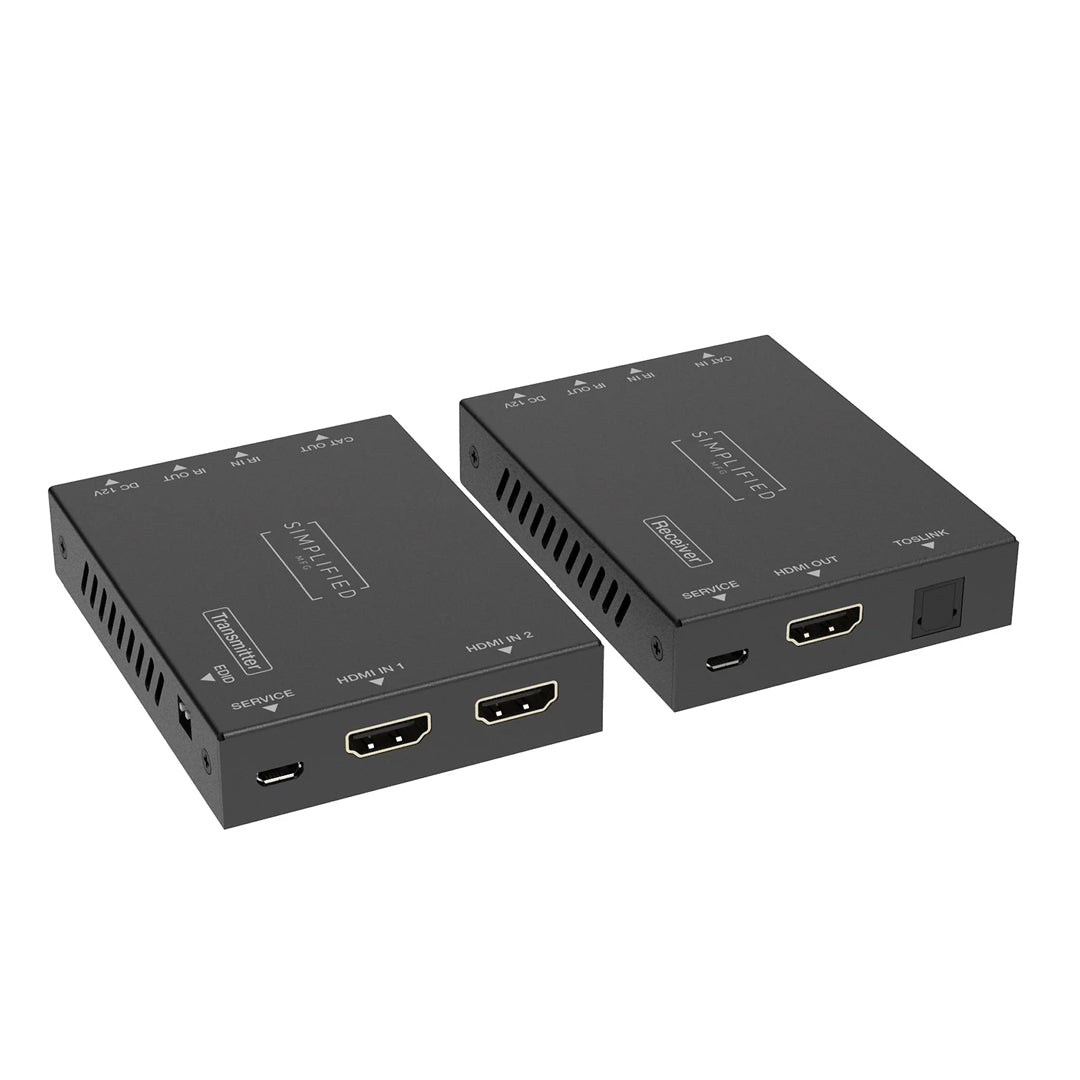

 The extender kit only requires power from one end (either) and has a 2-Way 12V IR kit included (one TX and one RX). There is also an innovative EDID circuit that allows the EDID to be overridden to solve incompatibilities with display and source(s). The RX portion has an optical audio breakout for a local amplifier or soundbar. In addition, this technology is more efficient than most only drawing about 1/3 the power (3.84W) of a typical extender set similar to its abilities. It is a switch, an extender and is small, versatile, efficient, and effective.

  • Allows Two (one at a time) HDMI 2.0b (18Gbps) Audio/Video sources and 2-Way IR signals (to and from display) to be transmitted over a single Cat6/5e cable

  • IR Remote selects the input source¬†

  • Optical S/PDIF audio breakout at RX

  • Built in EQ technology to eliminate
    clocking issues

  • EDID Management (copy from display at RX, copy from display at TX, 1080p 60Hz. Stereo, 4K 60Hz. Stereo)¬†

  • Transmission Range:¬†

    • 4K@60Hz up to 50m/164ft over Cat6 cable.

    • 1080P@60Hz up to 50m/164ft over Cat6 cable.

  • HDCP1.4 and HDCP2.2 compliant

  • Power from RX or TX

  • Compact design

  • 3-Year Warranty

HDMI Compliance  HDMI 2.0b
HDCP Copliance  HDCP 2.2/1.4
Video Bandwidth  18Gbps
Video Resolution  Up to 4K @60Hz 4:4:4
Color Space  RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth  8,10,12-Bit
HDMI Audio Formats  LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
ESD Protection¬† Human body model ‚ÄĒ ¬Ī8kV (air-gap discharge) & ¬Ī4kV (contact discharge)¬†
