Ubiquiti UAP-AC-M-PRO UniFi Access Point, White

SKU UBUAPACMPRO
ID: 12961394065480




This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

UAP-AC-M-PRO-US UniFi AC Mesh Wide-Area Outdoor Dual-Band Access Point

With the outdoor UAP-AC-M-PRO-US UniFi AC Mesh Wide-Area Dual-Band Access Point from Ubiquiti Networks users benefit from a wide coverage area reaching up to 600' along with enhanced data transfer rates of up to 1300 Mbps on the 5 GHz frequency. These enhanced data rates and coverage capabilities are supported by a 3x3 MIMO internal antenna configuration supporting multiple data paths for a more efficient end user network connection. Installation of the UAP-AC-M-PRO-US is simple as it comes 802.3af PoE compliant and includes a pole mounting kit. Once installed users can take advantage of 802.11ac Wi-Fi access with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band.

  • 802.11 a/b/g/n/ac Wi-Fi Standards
  • Range of up to 600'
  • 1 x 10/100/1000 Ethernet Ports
  • Up to 450 Mbps on 2.4 Ghz Wireless
  • Up to 867 Mbps on 5 Ghz Wireless
  • UniFi Controller Software
  • Integrated Omni Antennas
  • Guest Portal/Hotspot Support
  • Passive Power over Ethernet
  • CE, FCC, IC Certified

Weather-Resistant Form Factor

  • The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.

LED Indicators

  • Unique provisioning LED provides administrator location tracking and alerts for each device.

Powerful Coverage

  • Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.

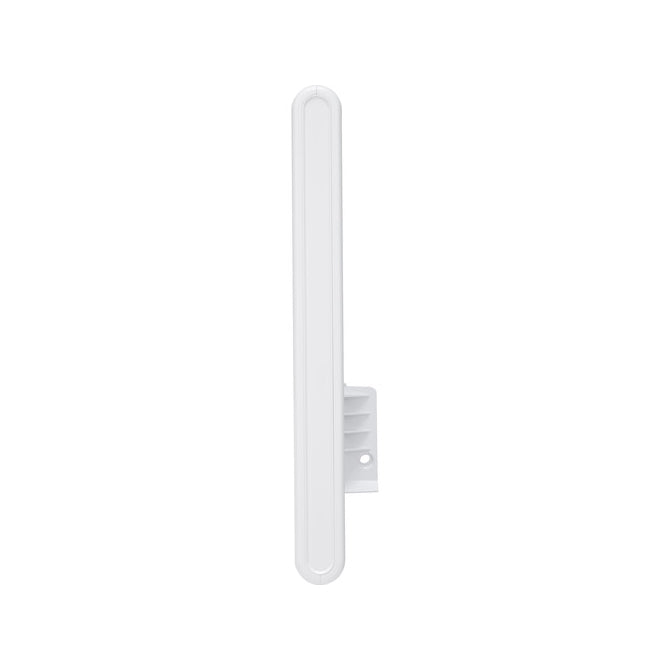

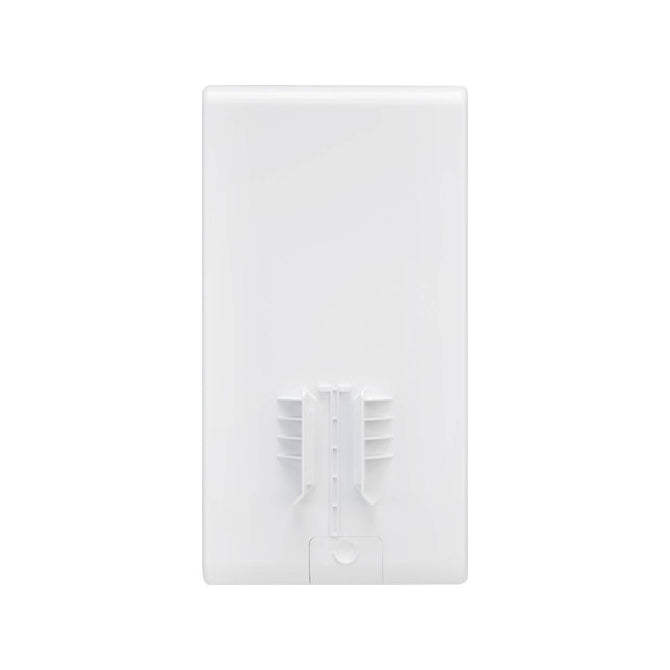

Mounting Flexibility

  • The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are included.)

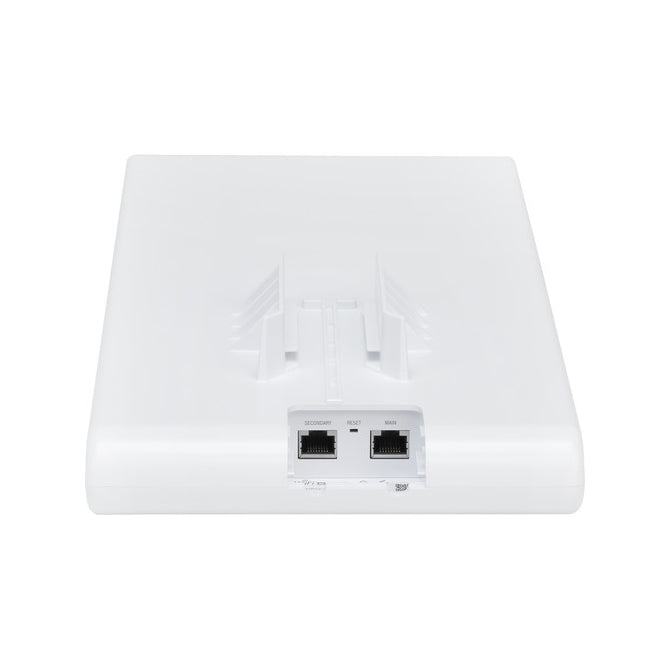

Dual Gigabit Ethernet Ports

  • The primary port is for data and PoE; the secondary port is for bridging.

Multiple Power Options

  • You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.
Networking Interface 2 x 10/100/1000 Ethernet Ports
Buttons Reset
Power Method 802.3af PoE
(Supported Voltage Range: 44 to 57 VDC)
Power Supply 48 V, 0.5 A PoE Gigabit Adapter (Included)
Power Save Supported
Maximum Power Consumption 9 W
Maximum TX Power 2.4 GHz: 22 dBm
5 GHz: 22 dBm
Antennas 3 x Internal Dual-Band Antennas
8 dBi
Wi-Fi Standards 802.11a/b/g/n/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to Four per Radio
Mounting Wall/Pole (Pole Kit Included)
Temperature & Humidity Operating Temperature: -40 to 158°F / -40 to 70°C
Operating Humidity: 5 to 95% non-condensing
Certifications CE, FCC, IC
Traffic Management and QoS VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Traffic Isolation
Supported
WMM
Voice, Video, Best Effort, and Background
Concurrent Clients
200+
Supported Data Rates 802.11ac
6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80)
802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
Dimensions 13.51 x 7.13 x 2.37" / 343.20 x 181.20 x 60.20 mm
Weight 1.40 lb / 633 g
Package Weight 4.8 lb
Box Dimensions (LxWxH) 15.8 x 8.8 x 3.6"
