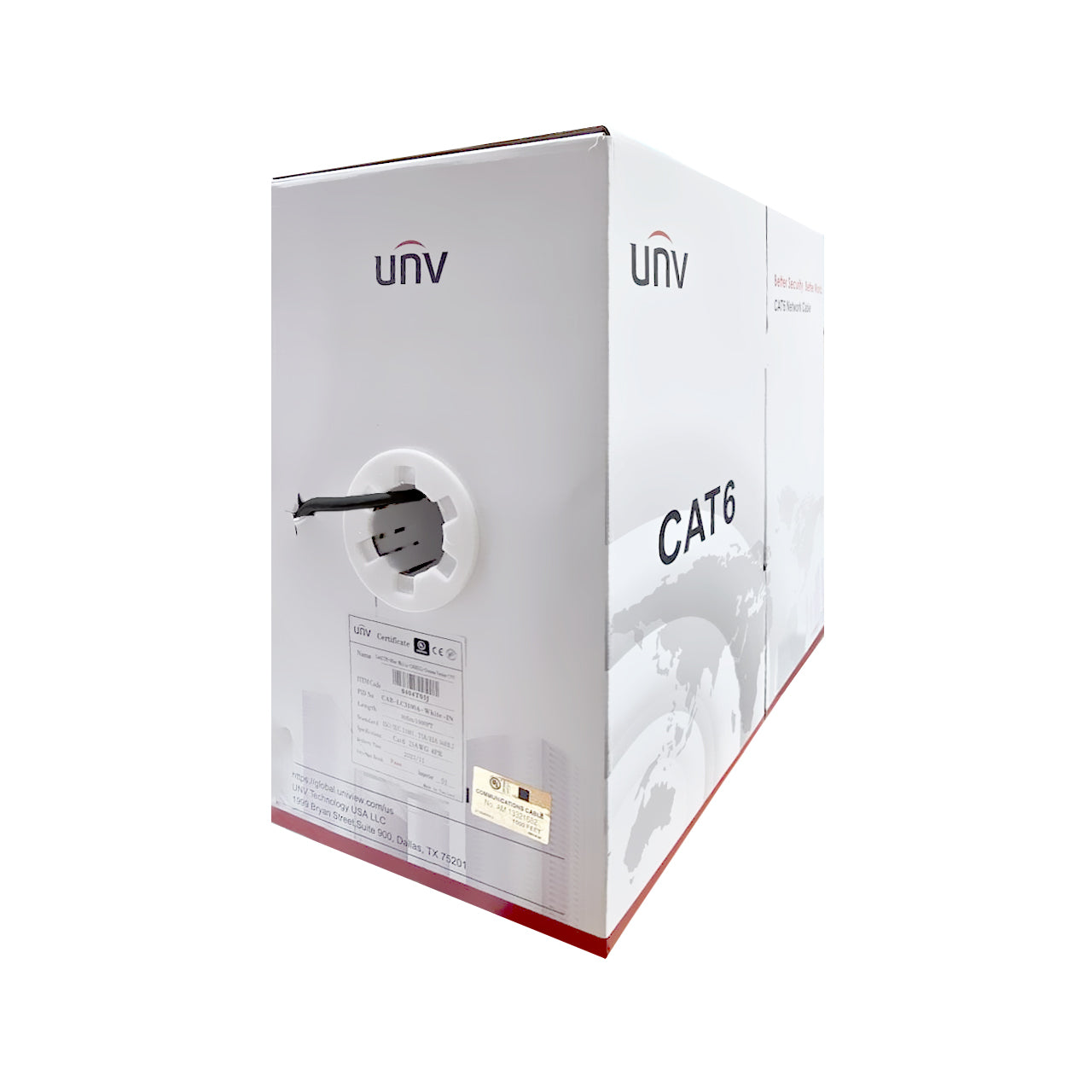

UNV CAB-LC3100A-Black, UTP Cat6 Ethernet Network Cable 1000' Pull Box, 99.99% OFC / 0.5mm / UL Certificate

• High-Quality Copper Conductors: Features 23 AWG oxygen-free copper for minimal signal loss and enhanced conductivity.
• Advanced Insulation: High-density polyethylene insulation shields against interference, ensuring signal integrity.
• Optimized Electrical Characteristics: Stable characteristic impedance across frequencies for reliable performance.
• Durable Construction: Encased in a PVC sheath for added durability.
• Installation Efficiency: Comes with a rip-cord and crossing backbone for streamlined installation.
• Wide Temperature Range: Suitable for environments from -4°F to 140°C, accommodating various operational conditions.

Specifications

Product model	CAB-LC3100
Product specification	HSYV-6 4×2×0.57
Test Standard	YD/T1019-2013
Conductor	Material			OFC(Oxygen free copper)
	AWG			23
	Nom.O.D.(mm)			0.57±0.005 mm
	DC resistance			≤95 Ω/km
Insulation	Material			HDPE
	Thickness			0.2±0.02 mm
	Diameter			1.02±0.05 mm
	Color	Blue/White- Blue			Green/White-Green		Electrical Characteristics: Frequency Characteristic impedance RL ATT NEXT MHz ohm ≥dB/100m ≤dB/100m ≥dB/100m 1 100±15 20.0 2.0 74.3 4 100±15 23.0 3.8 65.3 10 100±15 25.0 6.0 59.3 16 100±15 25.0 7.6 56.2 20 100±15 25.0 8.5 54.8 31.25 100±15 23.6 10.7 51.9 62.5 100±15 21.5 15.4 47.4 100 100±15 20.1 19.8 44.3 155 100±15 18.9 24.7 41.7 200 100±15 18.0 29.0 39.8 250 100±15 17.3 32.8 38.3 Frequency FEXT PS NEXT PS FEXT Phase delay MHz ≥dB/100m ≥dB/100m ≥dB/100m ≤ns/100m 1 63.8 72.3 64.8 570.0 4 51.7 63.3 57.7 552.0 10 43.8 57.3 44.8 545.4 16 39.7 54.3 40.7 543.0 20 37.7 52.8 38.7 542.0 31.25 33.9 49.9 34.9 540.4 62.5 27.8 45.4 28.8 538.6 100 23.8 42.3 24.8 537.4 150 20.2 39.4 20.9 536.0 200 17.7 37.8 18.7 536.0 250 15.8 36.3 16.8 536.0
		Orange /White-Orange			Brown/White-Brown
Pitch	Offset pitch				≤20 mm
	Cable pitch				≤120 mm
Sheath	Material			PVC(complies RoHS/REAC)
	External O.D.				6.2±0.3 mm
	Color			Blue(RAL5015)
	Tensile strength				>13.5 Mpa
	Thickness			0.6±0.05 mm
Surface Printing	Letter height			3.0±0.3 mm
	Color			Black
	Print error & Space			1±0.005 m
	Case number			Yes
Packing	Packing			Carton
	Once packing dimension				420mm*205mm*420mm
	Twice packing dimension				450mm*440mm*445mm
	Twice packing quantity				2 cases
Packing length	305±1m
Rip-cord	Yes		Crossing backbone			Yes
Ambient temperature	-20℃～60℃
