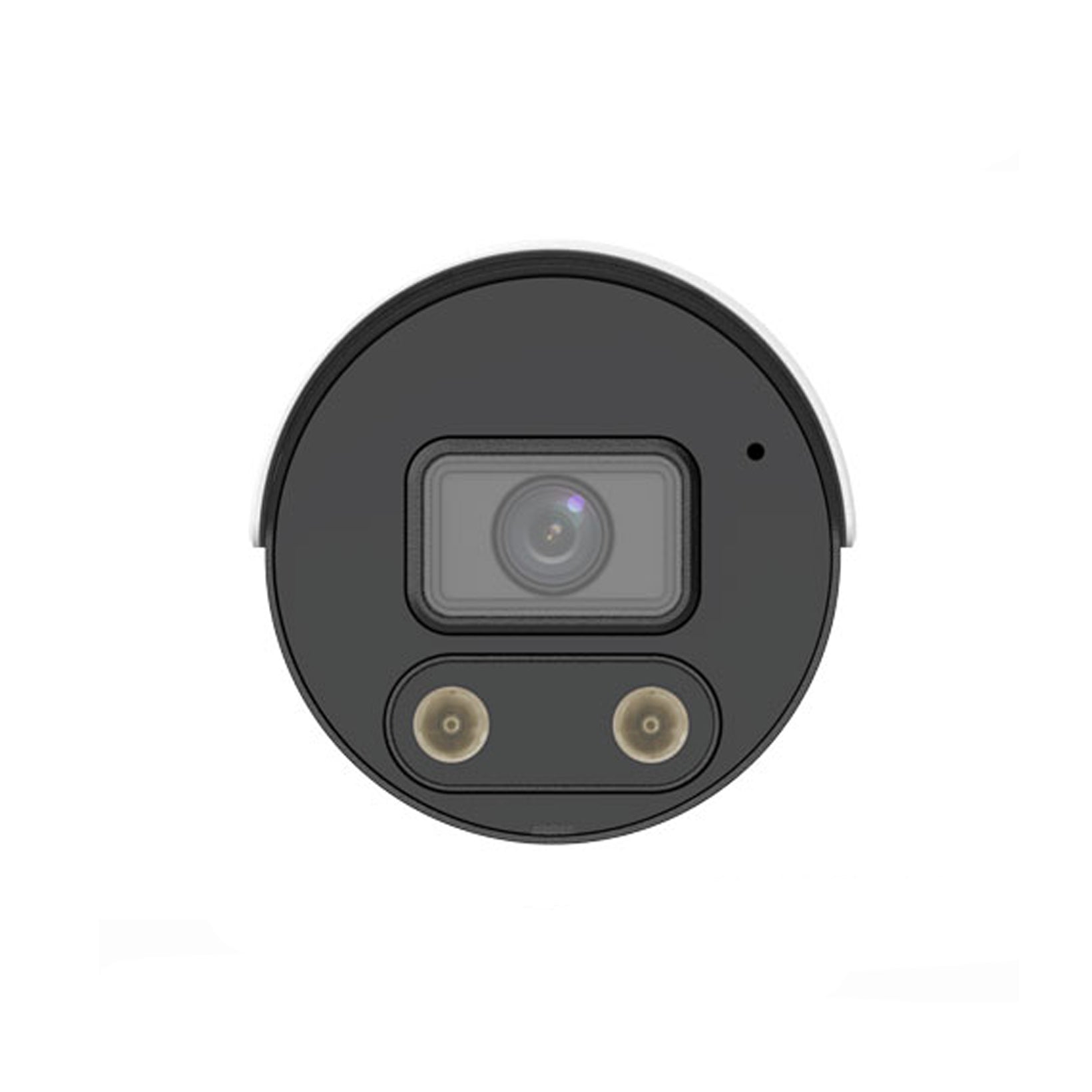

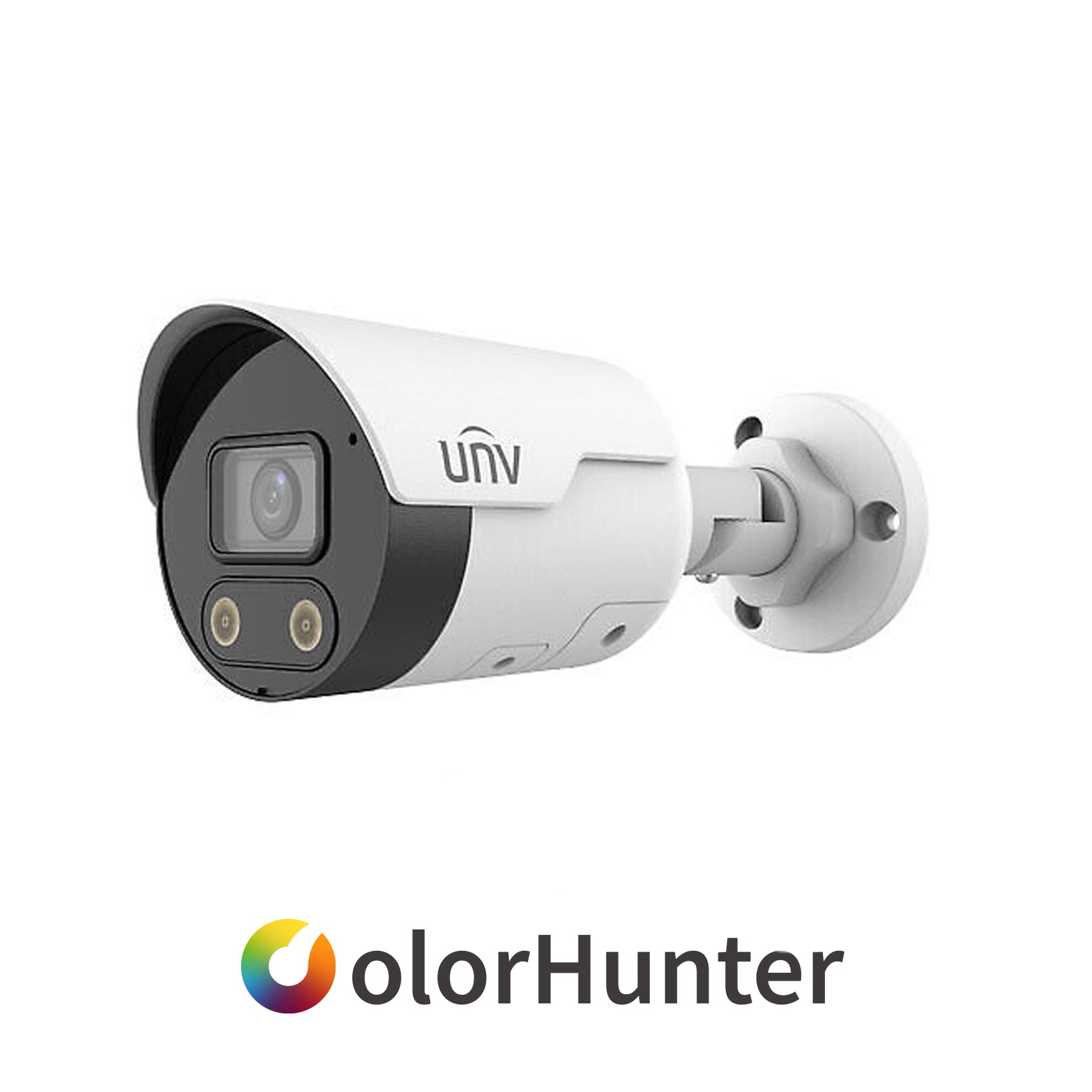

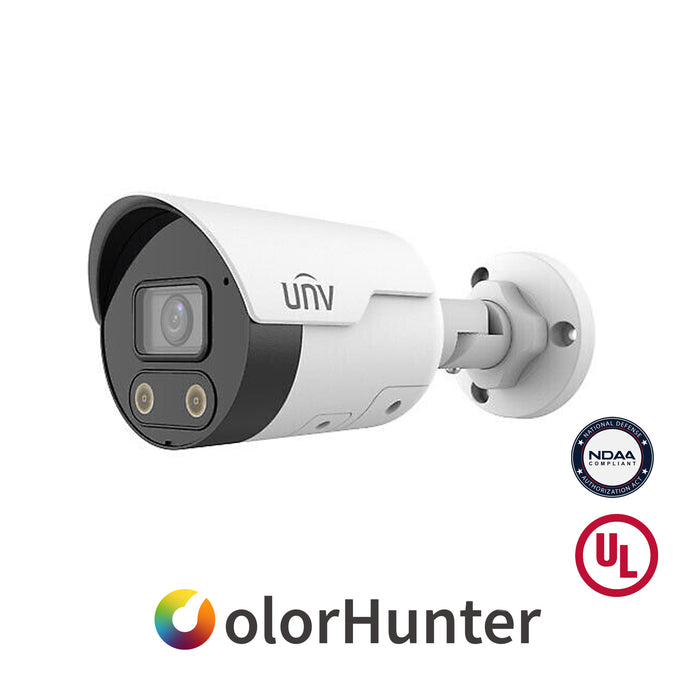

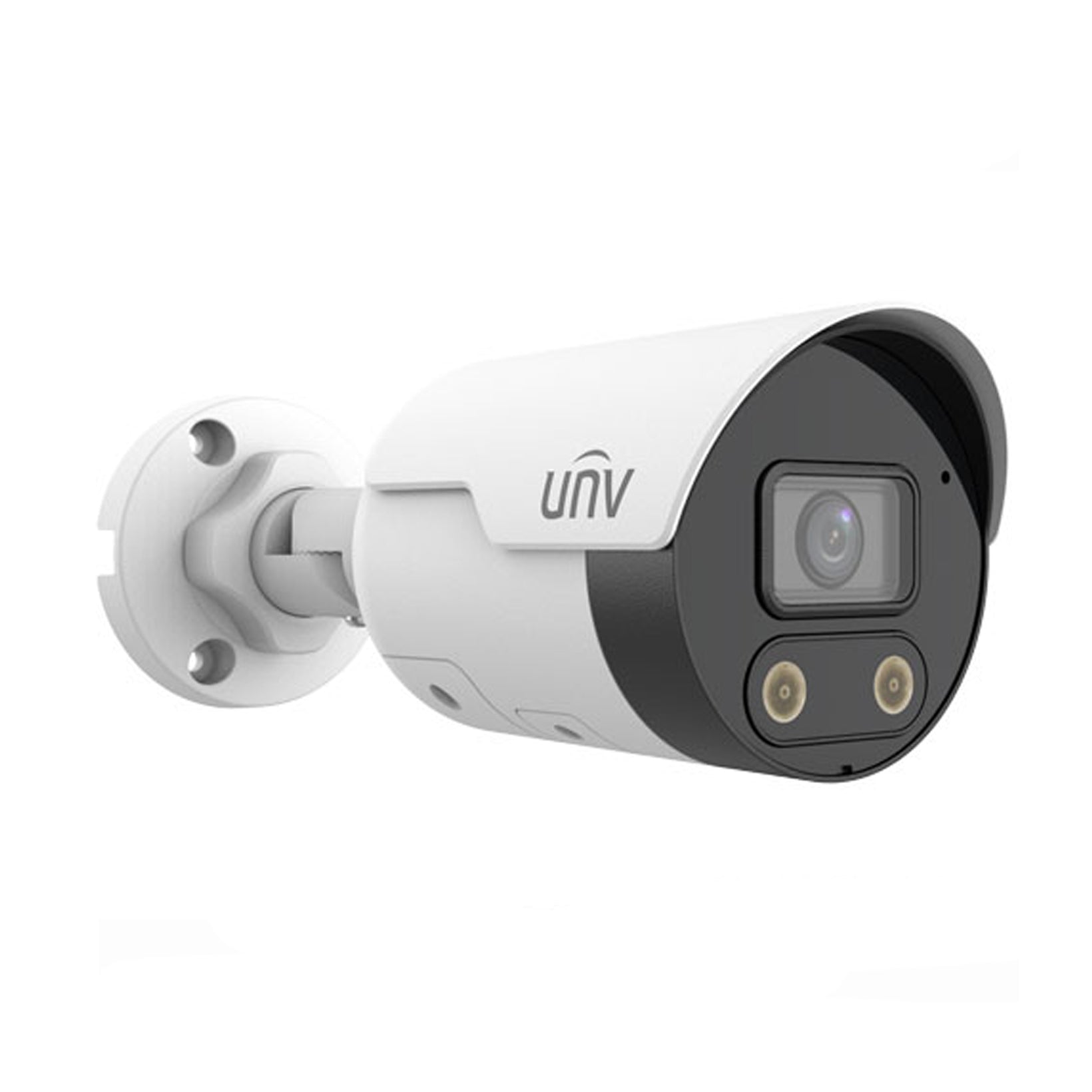

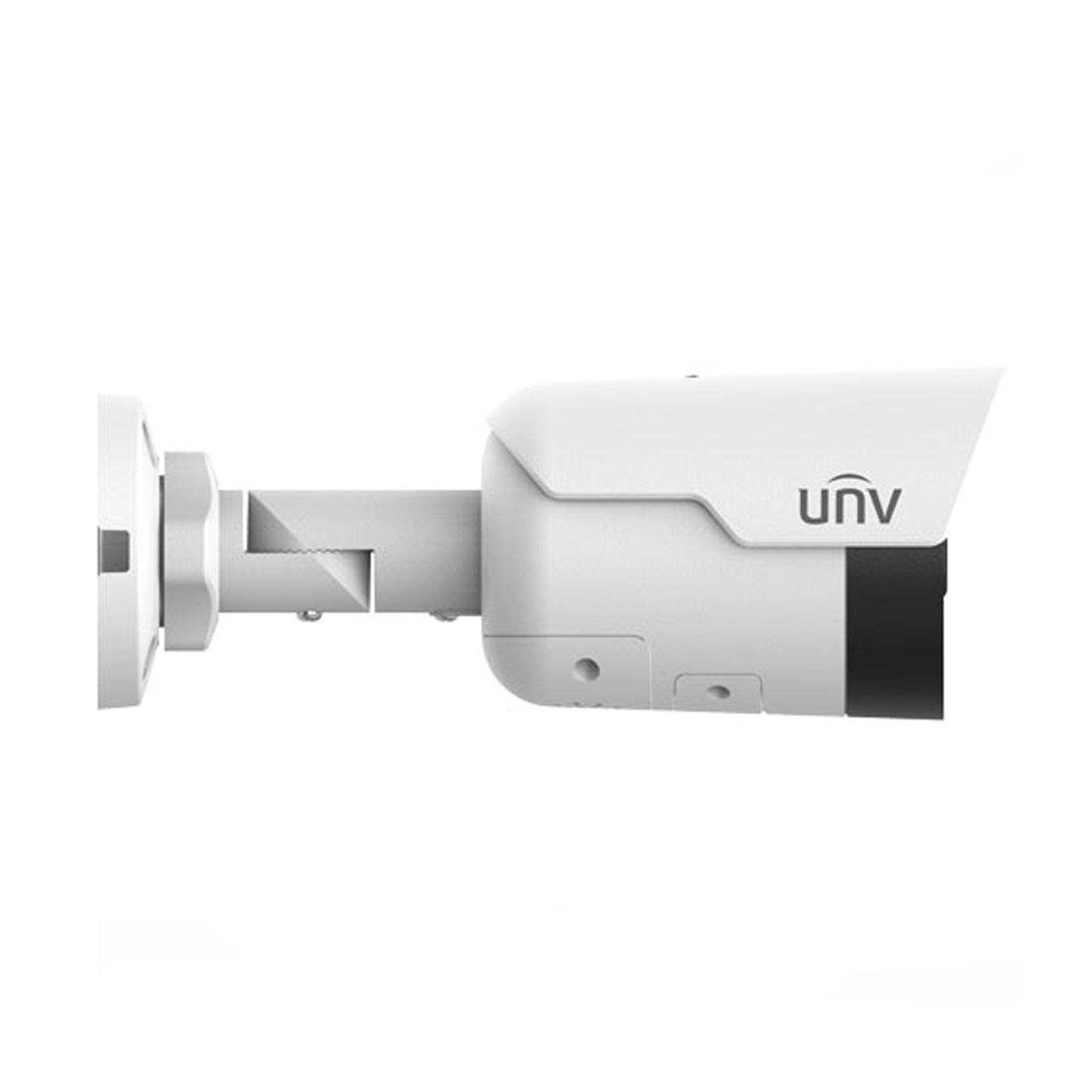

UNV IPC2124SB-ADF28KMC-I0,(4MP) Bullet, IPC 2.8mm Fixed Lens, ColorHunter, Microphone & Speaker, True WDR, UL Listed
by UNV
SKU UVIPC2124SB-ADF28KMC-I0
IPC2124SB-ADF28(40)KMC-I0
4MP HD Intelligent Light and Audible Warning Fixed Bullet Network Camera
• High quality image with 4MP, 1/2.7"CMOS sensor
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic and Speaker
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
• 4MP (2688*1520)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc., accurately focus on human and, motor vehicle and non-motor vehicle
• Supports sound and light alarm linkage.When Smart intrusion prevention is triggered , the camera links sound alarm and light linkage.
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic and Speaker
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IP67 protection
• Support PoE power supply
|
Camera | ||||
|
Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
|||
|
Minimum Illumination |
Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR on |
|||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||
|
Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 90° |
||
|
WDR |
120dB |
|||
|
S/N |
>56dB |
|||
|
Lens | ||||
|
Lens |
2.8mm@F1.6 |
|||
|
Iris |
Fixed |
|||
|
Field of View (H) |
101.1° |
|||
|
Field of View (V) |
55.3° |
|||
|
Field of View (D) |
111.1° |
|||
|
DORI | ||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
|
|
2.8 |
63.0 |
25.2 |
||
|
4.0 |
90.0 |
36.0 |
||
|
Illuminator | ||||
|
IR Range |
Up to 40m (131 ft) IR range |
|||
|
Wavelength |
850nm |
|||
|
IR On/Off Control |
Auto/Manual |
|||
|
Video | ||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||
|
H.264 code profile |
Baseline profile, Main profile, High profile |
|||
|
Frame Rate |
Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||
|
Video Bit Rate |
128 Kbps~16 Mbps |
|||
|
U-code |
Support |
|||
|
OSD |
Up to 8 OSDs |
|||
|
Privacy Mask |
Up to 4 areas |
|||
|
ROI |
Up to 8 areas |
|||
|
Video Stream |
Triple streams |
|||
|
Image | ||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|||
|
Digital Noise Reduction |
2D/3D DNR |
|||
|
Smart IR |
Support |
|||
|
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|||
|
Dewarping |
N/A |
|||
|
HLC |
Support |
|||
|
BLC |
Support |
|||
|
Defog |
Digital Defog |
|||
|
Intelligent | ||||
|
Smart intrusion prevention |
Support false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
|||
|
Statistical Analysis |
People counting, support people flow counting and crowd density monitoring |
|||
|
Events | ||||
|
Basic Detection |
Motion detection, Ultra motion detection, Tampering alarm, Audio detection |
|||
|
General Function |
Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, User authentication |
|||
|
Audio | ||||
|
Audio Compression |
G.711U, G.711A |
|||
|
Audio Bitrate |
64 Kbps |
|||
|
Two-way Audio |
N/A |
|||
|
Suppression |
Support |
|||
|
Sampling Rate |
8KHZ |
|||
|
Storage | ||||
|
Edge Storage |
Micro SD, up to 256GB |
|||
|
Network Storage |
ANR, NAS(NFS) |
|||
|
Network | ||||
|
Protocols |
IPv4, IPv6 ,IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
|||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API,SDK |
|||
|
User/Host |
Up to 32 users. 2 user levels: administrator and common user |
|||
|
Security |
Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
|||
|
Client |
EZStation EZView EZLive |
|||
|
Web Browser |
Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
|||
|
Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | ||||
|
Interface | ||||
|
Audio I/O |
N/A |
|||
|
Alarm I/O |
N/A |
|||
|
RS485 |
N/A |
|||
|
Built-in Mic |
Support |
|||
|
Built-in Speaker |
N/A |
|||
|
WIFI |
N/A |
|||
|
Network |
1 * RJ45 10M/100M Base-TX Ethernet |
|||
|
Video Output |
N/A |
|||
|
Certifications | ||||
|
EMC |
CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
|||
|
Safety |
CE LVD (EN 62368-1:2014+A11:2017) CB (IEC 62368-1:2014) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
|||
|
Environment |
CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|||
|
Protection |
IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
|||
|
General | ||||
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|||
|
Power consumption: Max 4.0W | ||||
|
Power Interface |
Ø 5.5mm coaxial power plug |
|||
|
Dimensions (L × W × H) |
155.9 × 63.1 × 62.7mm (6.1” × 2.5” × 2.5”) |
|||
|
Weight |
0.42kg (0.93lb) |
|||
|
Material |
Metal |
|||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||
|
Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||
|
Surge Protection |
4KV |
|||
|
Reset Button |
Support |
|||
