Yamaha RX-A8ABL, AVENTAGE 11.2-Channel home theater receiver with Dolby Atmos®, Wi-Fi®, Bluetooth®, Apple AirPlay® 2, and Amazon Alexa compatibility

by Yamaha
SKU YHRX-A8ABL
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
Channels 11.2
Power Output per Channel 2-Channel Driven:
150 W at 8 Ohms / 20 Hz to 20 kHz / 0.06% THD
165 W at 8 Ohms / 1 kHz / 0.9% THD
1-Channel Driven:
185 W at 8 Ohms / 1 kHz / 0.9% THD
200 W at 6 Ohms / 1 kHz / 0.9% THD
230 W at 4 Ohms / 1 kHz / 0.9% THD
Frequency Response 10 Hz to 100 kHz +0/-3 dB (Direct, Pure Mode)
Speaker Impedance 4 to 8 Ohms
Tone Control Bass (50 Hz): ±6.0 dB
Treble (20 kHz): ±6.0 dB
Damping Factor > 140
DTS Compatibility DTS, DTS 96/24, DTS-HD High Resolution, DTS-HD Master Audio, DTS:X
Dolby Compatibility Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Auro 3D Support No
Upmixing Technology DTS Neural:X, Dolby Atmos Height Virtualization Technology
Supported File Formats 11.2 MHz DSD, 2.8 MHz DSD, 5.6 MHz DSD, AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA
DAC 384 kHz / 32-Bit (ESS SABRE ES9026PRO)
HDR Compatibility HDR10, Dolby Vision, Hybrid Log Gamma
Pass-Through Support 4K60p
Upscaling None
GUI Yes

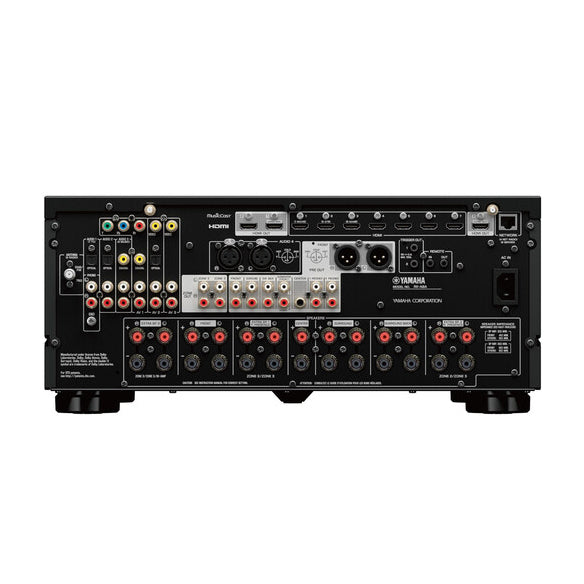

Rear A/V Inputs 7 x HDMI 2.1
1 x 3RCA Component
2 x RCA Composite
3 x Optical TOSLINK
2 x Digital Coaxial
1 x Stereo XLR
5 x Stereo RCA
1 x Stereo RCA (Phono) with Ground Screw
Rear A/V Outputs 3 x HDMI 2.1
1 x Stereo XLR Pre-Out
1 x 11-Channel RCA Pre-Out
1 x Stereo RCA Zone 2
1 x Stereo RCA Zone 3
2 x RCA Subwoofer
Front I/O 1 x USB Type-A
1 x 1/4" / 6.35 mm Headphone Output
1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O 1 x FM Antenna Terminal Input
1 x AM Antenna Terminal Input
2 x Bluetooth/Wi-Fi Antenna Terminal
2 x 1/8" / 3.5 mm (12 V Trigger) Output
1 x 1/8" / 3.5 mm (Remote) Input
1 x 1/8" / 3.5 mm (Remote) Output
1 x RJ45 (Ethernet)
Speaker Connectors 13 x Binding Post Pairs
HDCP Support Version 2.3
HDMI Compression Modes Not Specified by Manufacturer
Audio Return Channel (ARC) ARC, eARC
HDMI CEC Yes
Media Card Slot None
Bi-Amp Capability Yes
Input Impedance Phono: 47 Kilohms
RCA: 47 Kilohms
XLR: 200 Kilohms
Input Sensitivity Phono: 4.5 mV
RCA: 250 mV
XLR (Attenuator Off): 260 mV
XLR (Attenuator On): 520 mV
Rated Output / Impedance Pre-Out, Subwoofer Pre-Out: 1 V / 470 Ohms
Zone 2 Line-Out, Zone 3 Line-Out: 470 mV / 470 Ohms
Analog: 2 V / 470 Ohms
Signal to Noise Ratio Phono: 95 dB (Direct Mode / IHF-A)
Pre-Amp: 110 dB (Direct Mode / IHF-A)
