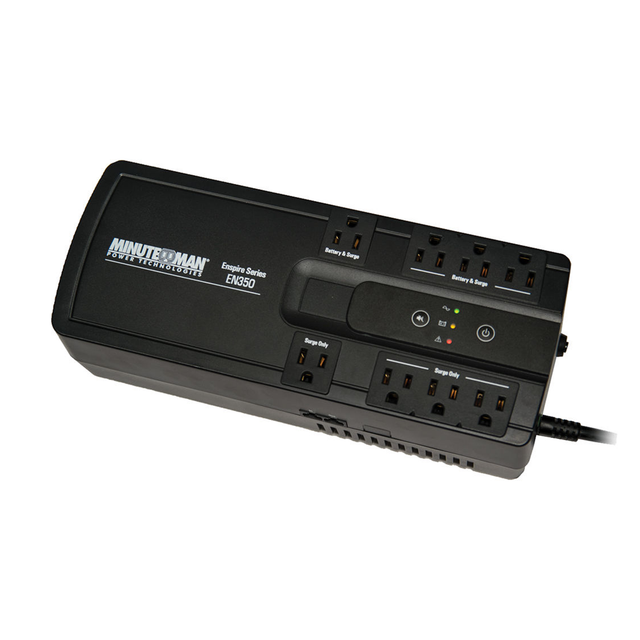

MINUTEMAN EN350, EnSpire 350VA 200W 8-Outlet Standby UPS

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

Keep your gear safe with surge protection and backup power thanks to the EN350 EnSpire 350VA 200W 8-Outlet Standby UPS from Minuteman.

Intended as a standby uninterruptible power supply for small loads, the Minuteman EnSpire shines in small office environments. Featuring four outlets with surge protection and another four with both surge protection and backup battery power, the EnSpire ensures that your crucial electronics remain up and running while non-critical devices are protected from voltage spikes, power overages, and other electrical woes.

The EnSpire even offers single-line protection for your phone, fax machine, or network connection via an RJ11 and RJ45 port.

Toolless battery access and hot-swap support allow you to easily replace batteries in a pinch, and the independent battery bypass further safeguards your tech.

And, with self-diagnostics and audio alarms, the Minuteman EN350 ensures your power supply alerts you to any issues.

In addition to a compact and low-profile design, the Minuteman EN350 EnSpire also features wall-mounting support and a 4' power cord, allowing for optimal placement in your work environment.

  • 350VA / 200W Simulated Sine Wave UPS
  • 8 x NEMA 5-15R Outlets
  • Toolless Battery Panel
  • Independent Battery Bypass
  • Hot-Swappable Internal Batteries
  • Surge Protection Up to 500 Joules
  • Self-Diagnostic Testing
  • Audio Alarms
  • 4' Power Cord
Total Outlets 8 x NEMA 5-15R (2 Transformer-Sized)
Protected Outlets 4 x NEMA 5-15R (Battery and Surge)
4 x NEMA 5-15R (Surge Only)
Plug Type NEMA 5-15P
USB Charging Ports None
SmartSlot Interface None
Coax Protection None
Data Line Protection RJ11, RJ45
Communications USB via Type-B
Topology Standby
Transfer Time 6 ms
Surge Energy Rating 500 Joules
Maximum Wattage 200 W at 120 VAC
Nominal Input Voltage 120 VAC
Input Voltage Range 95 to 140 VAC
Input Frequency 60 Hz ± 6 Hz
Output Voltage Range 95 to 140 VAC
Output Frequency 60 Hz ± 0.5 Hz
Load Capacity 350 VA
Maximum Efficiency 95%
Waveform Simulated Sine Wave
Battery Capacity 60 VAh
Chemistry Lead-Acid
Full-Load Runtime 3 Minutes
Half-Load Runtime 12 Minutes
User Replaceable Yes
Replacement Battery BM0067
Hot-Swap Support Yes
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 95%
Storage Temperature 5 to 113°F / -15 to 45°C
Storage Humidity 0 to 95%
Operating Altitude 0.00 to 9842' / 0 to 3000 m
Storage Altitude 0.00 to 49,212' / 0 to 15,000 m
