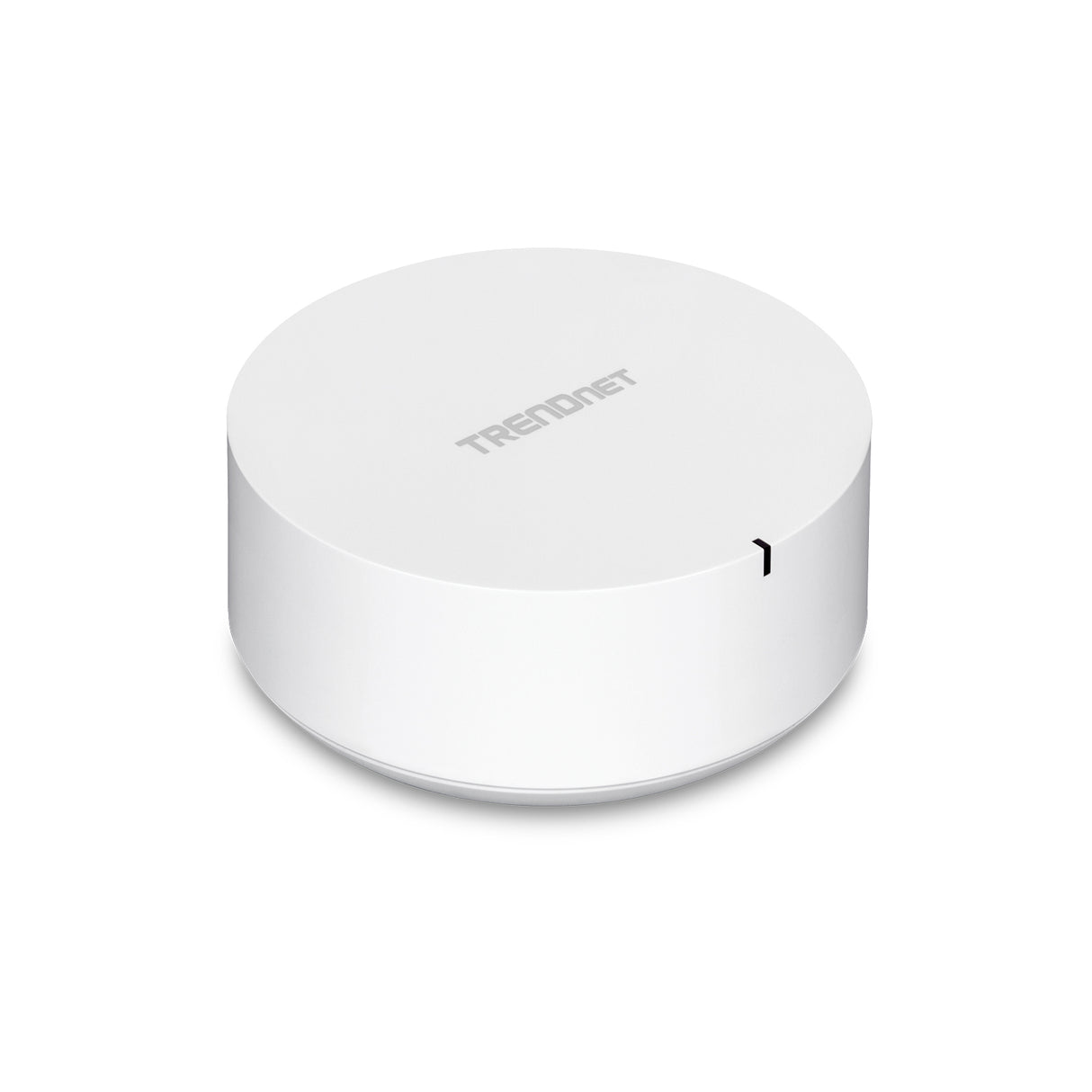

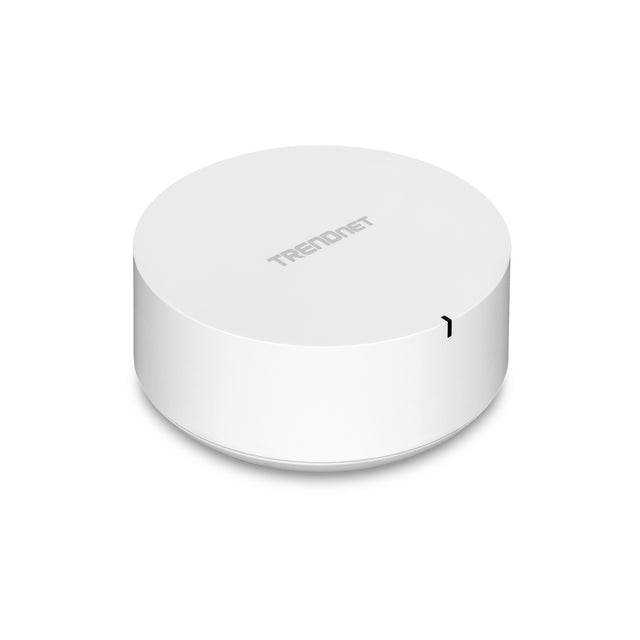

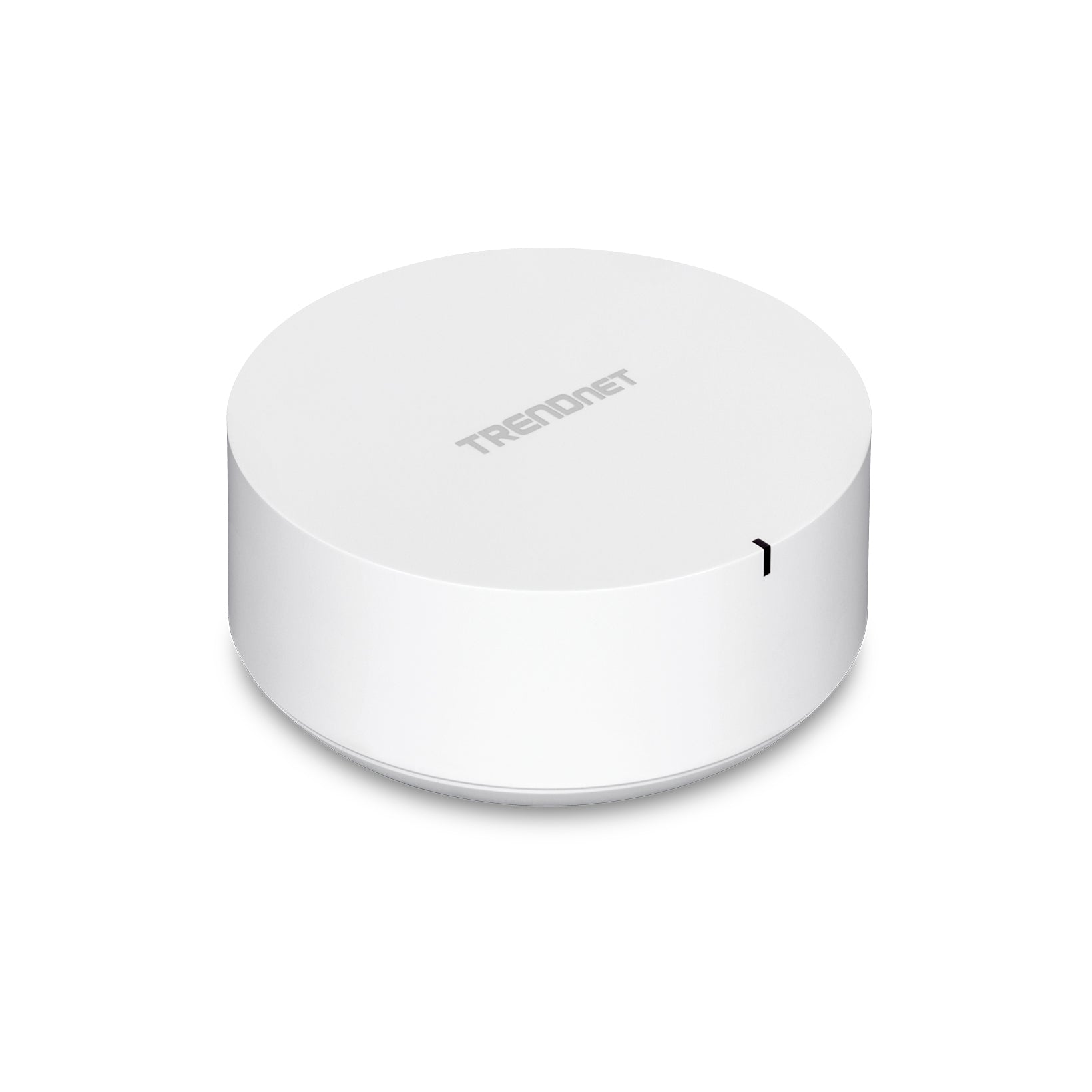

TRENDnet TEW-830MDR AC2200 WiFi Mesh Router

SKU TNTEW-830MDR
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.

AC2200 WiFi Mesh Router / TEW-830MDR (Version v1.0R)

  • AC2200: 5GHz1: 867Mbps WiFi AC | 5GHz2: 867Mbps WiFi AC | 2.4GHz: 400Mbps WiFi N
  • Includes 1 x AC2200 WiFi Mesh Router
  • Designed to replace older WiFi routers, extenders, and signal boosters
  • Intelligent WiFi mesh technology always connects users to the best WiFi Mesh Router
  • Add to existing AC2200 Mesh Router System for expanded WiFi coverage in larger home applications
  • Airtime fairness balances wireless client bandwidth resources
  • Content filtering with Router Limits™
  • Pre-encrypted for your convenience
  • LAN/WAN IPv6 support
  • Multi-User MIMO for increased bandwidth efficiency and better user experience*
  • Seamless WiFi roaming
  • USB 3.0 port with Samba support
  • Implicit/Explicit Beamforming

TRENDnet's AC2200 WiFi Mesh Router System is designed to blanket your home or small office in seamless WiFi coverage. The AC2200 WiFi Mesh Router System provides ample coverage for up to a 2,000 square foot home. For larger homes, simply add additional AC2200 WiFi Mesh Routers to the system for expanded WiFi coverage.

The WiFi mesh router system uses an intuitive app-based installation process, making setup a breeze using our TRENDnet WiFi Mesh app. In minutes, you'll have your AC2200 WiFi Mesh Router System up and running providing whole home WiFi coverage.

Our WiFi mesh router system also includes cutting-edge content filtering powered by Router Limits™. Router Limits' innovative tools offer an enhanced user experience for device-level scheduling and filtering capabilities. By offering access to these advanced web content filtering and productivity tools, the mesh router system allows you to take control of the Internet, whether it be for your business or your home.

  • Supports Access Point (AP), Wireless Distribution System (WDS), Repeater, and Wireless Client modes
  • Compliant with 802.11n/g/b technology (2.4 GHz) with data rates up to 300 Mbps
  • Durable enclosure with an IP67 outdoor weather rating
  • Built in 10 dBi directional antenna
  • Comes with a proprietary PoE injector, so that it can connect a regular non-PoE switch
  • Real time logs and statistics help troubleshooting
  • Support for wireless encryption of up to WPA2
  • Create up to eight additional SSIDs
  • Compatible with legacy wireless devices
  • Pole and wall mounting hardware included
  • DDNS support for dyn.com, no-ip.com
  • Schedule radio on/off time policy
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n (up to 400Mbps @ 256QAM)*
  • IEEE 802.11ac (5GHz1: up to 867Mbps, 5GHz2: up to 867Mbps @ 256QAM)*

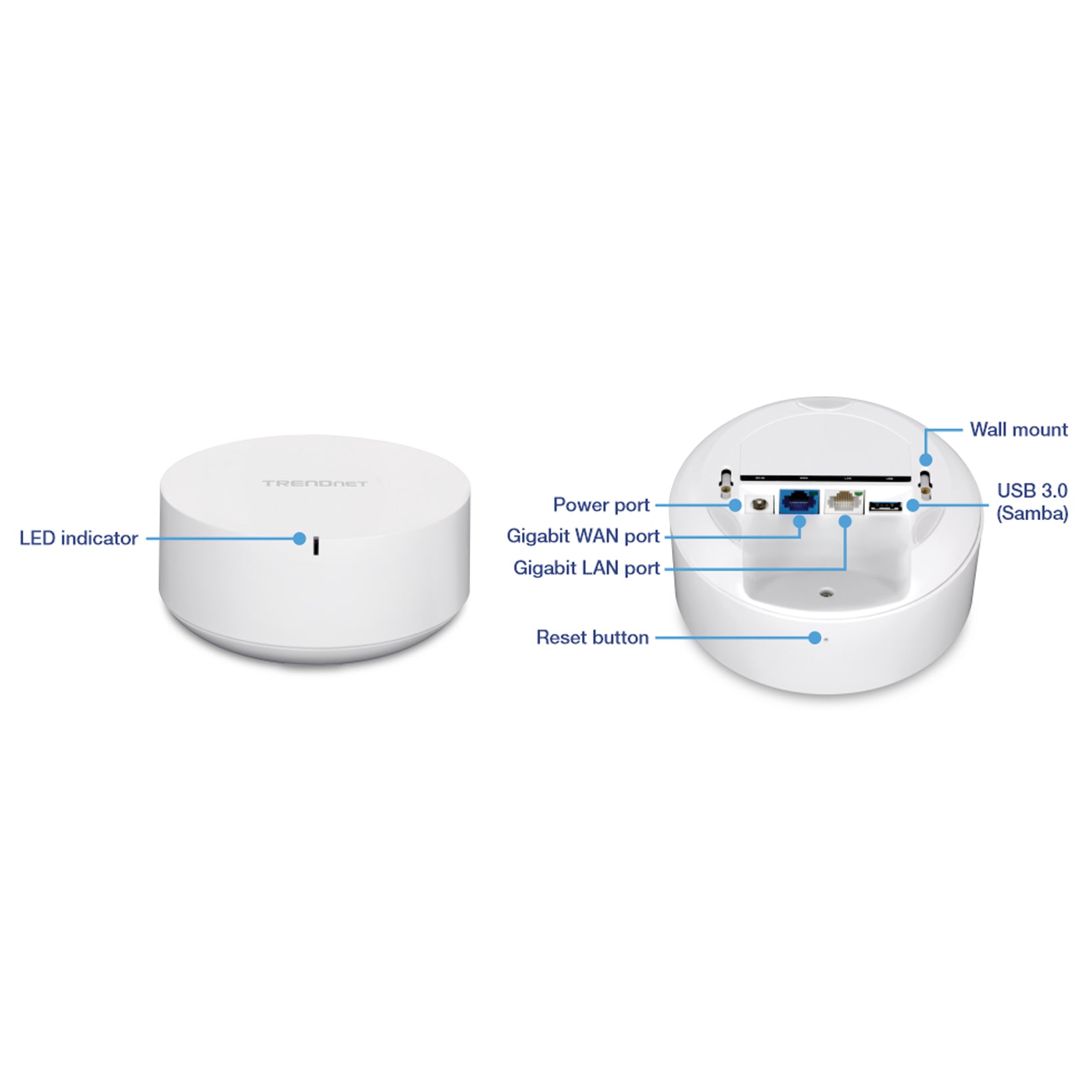

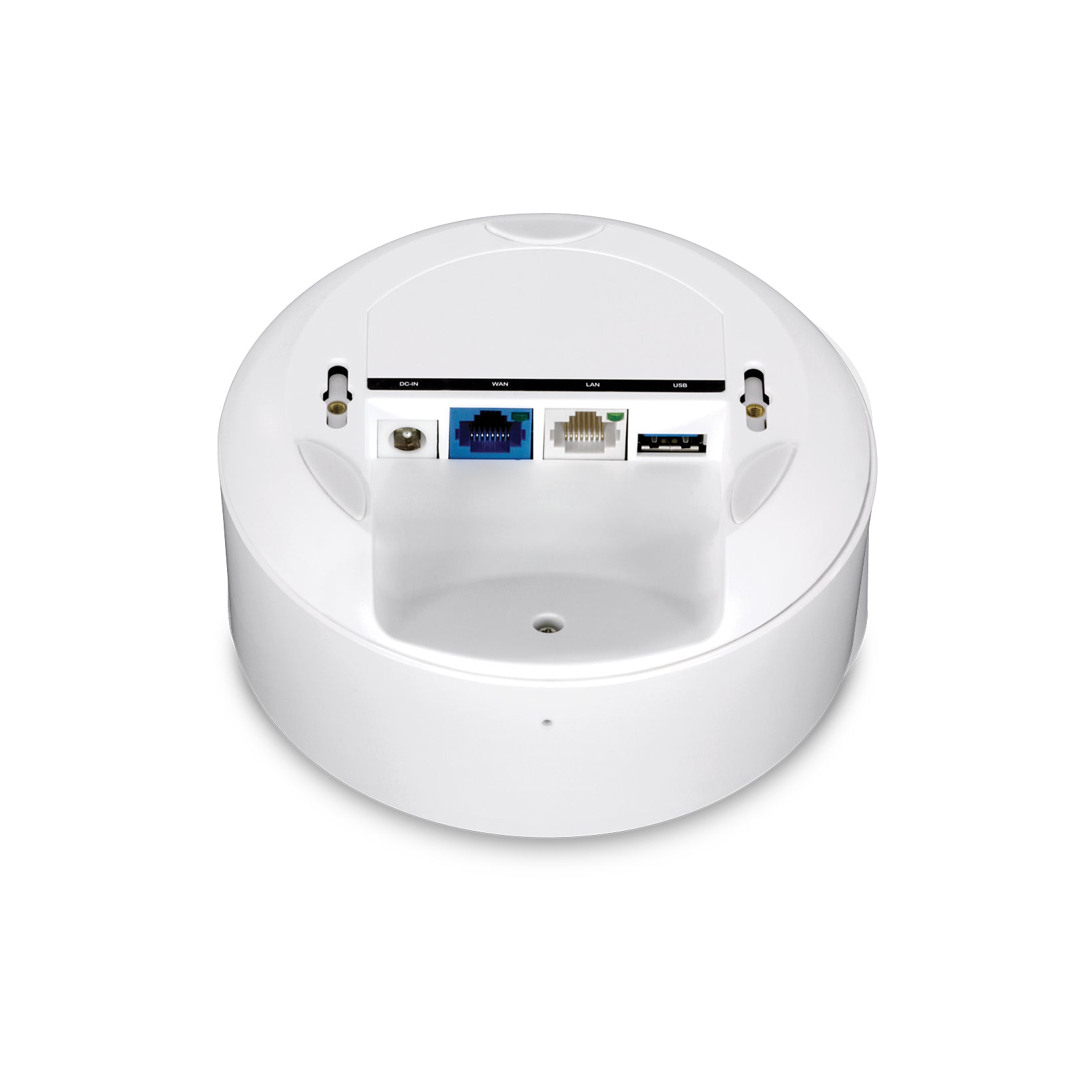

Device Interface
  • 1 x Gigabit LAN port
  • 1 x Gigabit WAN port
  • 1 x USB 3.0 (Samba)
  • Reset button
  • LED indicator
Special Features
  • Easily expand your WiFi mesh network coverage with additional TRENDnet WiFi mesh router
  • Multi-User MIMO for increased bandwidth efficiency and better user experience*
  • Seamless WiFi roaming
  • Multi-Language app interface: English, Traditional Chinese, German, Italian, Swedish, French, Spanish, Dutch
  • IPv6 support
  • Samba support
  • Implicit/Explicit Beamforming
  • Band Steering
Access Control
  • WiFi encryption: WPA/WPA2-PSK AES
  • WiFi Guest network
  • Hide WiFi Name/SSID
  • Wireless client isolation
  • NAT
  • Port forwarding
  • DMZ host
  • UPnP
  • DoS prevention
  • Allow/deny WAN ping requests
  • Parental controls (Set schedules for Internet access or filter by keyword or custom websites)
  • Manage screen time, filter content, monitor bandwidth, and track browsing history with Router Limits™ web management system
Quality of Service
  • Set client device priority (Normal/High priority)
  • WMM
Internet Connection Types
  • Dynamic IP (DHCP)
  • Static IP (Fixed)
  • PPPoE (Dynamic IP/Static IP)
  • PPTP (Dynamic IP/Static IP)
  • L2TP(Dynamic IP/Static IP)
  • IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6rd)
Management/Monitoring
  • HTTP/HTTPS local/remote web-based management
  • Internal system logging
  • Mesh connection quality display
  • Client device list
  • Internet speed test
  • Manual or online firmware upgrade and notification
  • Backup and restore configuration
  • Internal logging
  • Restore to factory default
  • Router/Bridge operation modes
  • Static routes
Frequency
  • 2.412 - 2.472GHz
  • 5.180 – 5.825GHz
Modulation
  • 802.11b: CCK, DQPSK, DBPSK
  • 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM
  • 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM
  • 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM
Media Access Protocol
  • CSMA/CA with ACK
Antenna Gain
  • 2.4GHz: 2 x 4.03 dBi (max.) / 5GHz: 4 x 5.64 dBi internal antennas
Receiving Sensitivity
  • 802.11a: -73 dBm (typical) @ 54Mbps
  • 802.11b: -90 dBm (typical) @ 11Mbps
  • 802.11g: -76 dBm (typical) @ 54Mbps
  • 802.11n (2.4GHz): -89 dBm (typical) @ 300Mbps
  • 802.11n (5GHz): -86 dBm (typical) @ 300Mbps
  • 802.11ac: -83 dBm (typical) @ 867Mbps
Wireless Channels
  • 2.4GHz: FCC: 1–11
  • 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Power
  • Input: 100 – 240V AC, 50/60Hz
  • Output: 12V DC, 1.5A external power adapter
  • Max. Consumption: 15.12W
Operating Temperature
  • 0° – 40° C (32° – 104° F)
Operating Humidity
  • Max. 90% non-condensing
Certifications
  • FCC
  • IC
Dimensions
  • 126 x 126 x 60mm (4.96 x 4.96 x 2.36 in.)
Weight
  • 372g (13.1 oz.)
