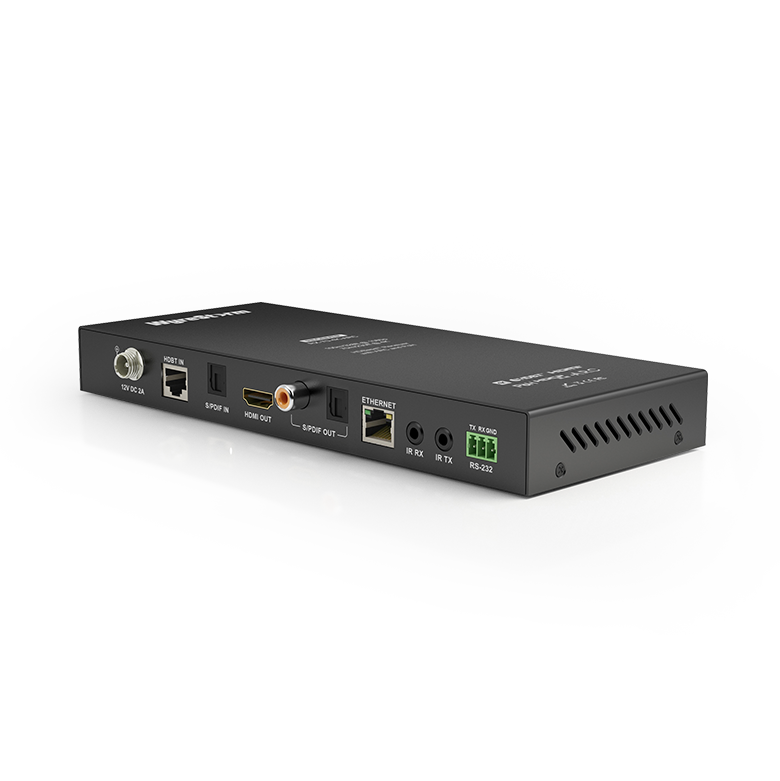

WyreStorm RXV-70-4K-ARC, HDBaseT™ 4K UHD Receiver, featuring audio de-embed and ARC/Optical audio return (4K: 70m/230ft | 1080p: 100m/328ft)

This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
Free the audio from SmartTV on-demand content with the RX-70-4K-ARC HDBaseT receiver supporting ARC or optical audio return to enable digital audio to be sent back to a compatible WyreStorm HDBaseT transmission device, such as an H2 model matrix switcher.


The RX-70-4K-ARC can transmit multi-channel digital audio from the TV location back to the transmitter device for connection to an amplifier.


Optical & coaxial S/PDIF output allows for extraction of source audio from HDBaseT™ signal.


Audio Return selectable between HDMI or S/PDIF optical input which allows for audio from a TV without ARC support to send audio to the transmitter or matrix.


Receives HDMI transmissions of 4K up to 70m/230ft and 1080p up to 100m/328ft with multi-channel audio, control, ethernet and PoH.

  • Class A HDBaseT 4K Receiver capable of receiving HDMI transmissions over a single cable Cat5e/6 cable with support for ARC or optical audio return
  • 70m/230ft: 4K@60Hz 24bit with chroma subsampling color palette 4:2:0
  • 100m/328ft: 1920x1080p HD video@60Hz / 48bit Deep Color
  • HDBaseT feature set supporting the distribution of 4K and HD video, multichannel HD audio, bidirectional IR and RS-232, PoH remote power and Ethernet passthrough
  • Supports all high definition resolutions: 4K (UHD & DCI), 1080p, 1080i, 720p with screen refresh rate support of 24Hz, 30Hz (4K) 50Hz, 60Hz (1080p), 4K@60Hz YUV4:2:0
  • HDCP 2.2 compliant
  • Audio Return Channel and optical audio return support
  • TOSLINK input allows for support of TV models without ARC-over-HDMI functionality
  • Includes audio out for source audio de-embed
  • Full 3D compatibility up to 1080p - frame packing/sequential (Blu-Ray) and interlaced stereoscopic (satellite/ cable broadcasts)
  • Multichannel audio supports 7.1 DTS Master HD and Dolby True HD
  • PoH (Power-over-HDBaseT) enables the receiver to be remotely powered from the a compatible transmission device for flexible installation options
  • Transmits discrete wide-band bidirectional IR control and serial commands together within the HDMI signal over a single Cat5e/6
  • Switchable RS-232 port for control or firmware update
  • Threaded bushing allow use of both standard and locking DC power plugs

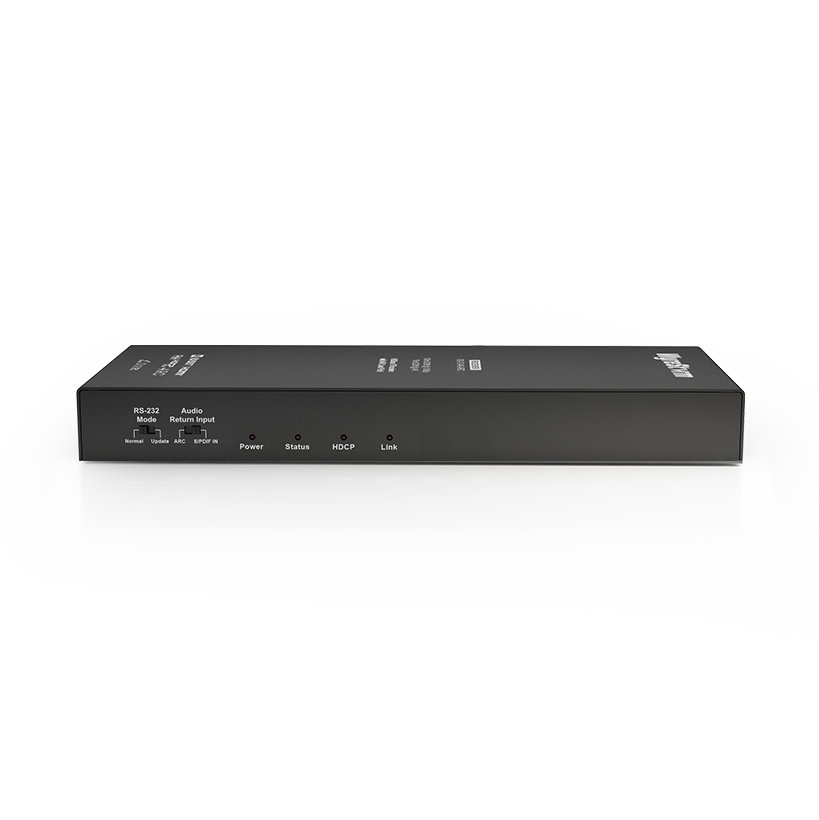

  • Visual LED indication for power supply to units, HDBaseT signal transmission and reception status and HDCP presence in signal
  • Cable termination follows IEEE-568B standards
  • Automatically adjusts feedback, equalization and amplification of signal for easy installation
  • Energy efficient universal power supply included
  • Mounting brackets included
