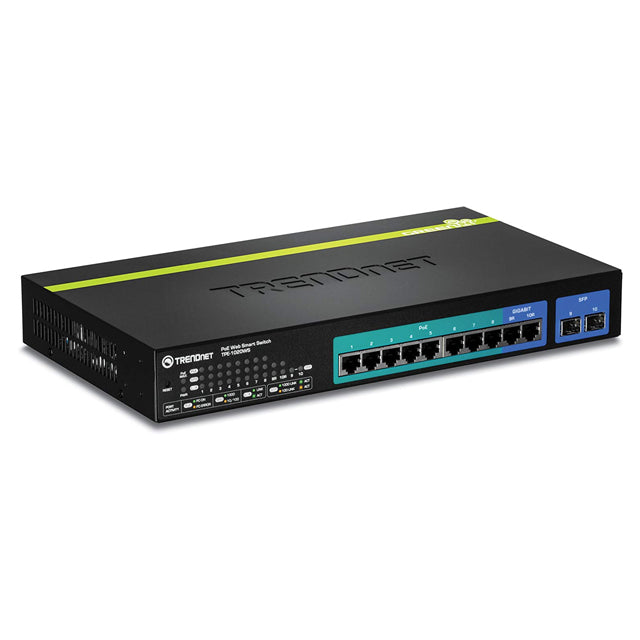

TRENDnet TPE-1020WS 10-port Gigabit Web Smart PoE+ Switch /w 2 Shared Mini-GBIC slots (8 PoE+, 2 SFP)

SKU TNTPE-1020WS
This website is for Authorized Dealers only. Pricing and checkout is disabled unless you are authorized. "Login" or Click "Dealer Application" to apply.
  • 8 x PoE+ Gigabit ports
  • 2 x Gigabit Ethernet ports and 2 x shared SFP slots
  • Up to 30 Watts per port with a 75 Watts total power budget
  • 20 Gbps switching capacity
  • Rack mountable
  • Lifetime Warranty*

Hardware Design

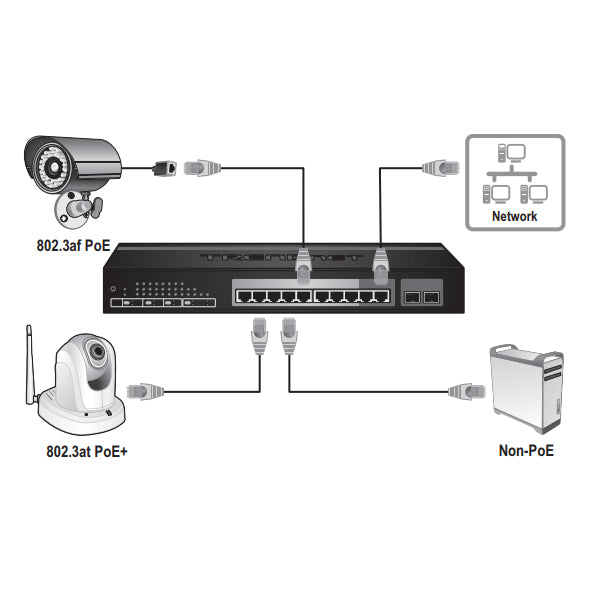

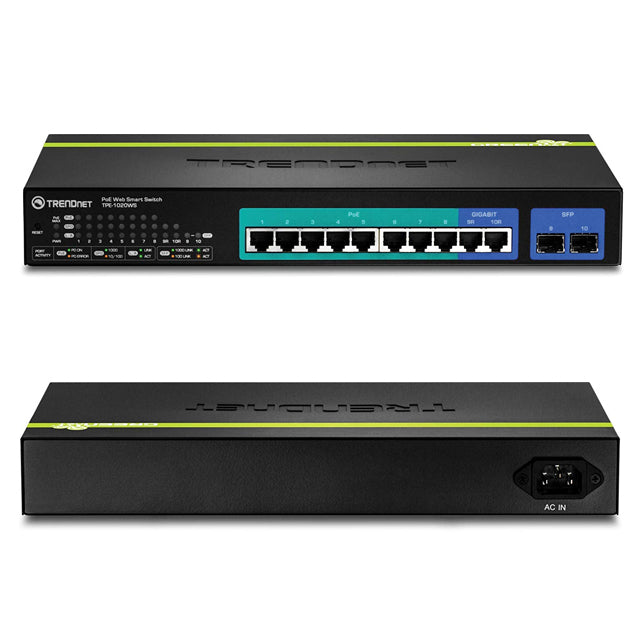

Fanless rack mountable housing features eight Gigabit PoE+ ports (automatically supplies PoE+ (30 Watts) and PoE (15 Watts)) and two Gigabit Ethernet uplink ports shared with two SFP slots

IPv6 Ready

This switch supports IPv6 configuration and neighbor IPv6 network support



Traffic Management

A broad range of network configurations are support by: 802.3ad link aggregation, Asymmetric VLAN, 802.1Q VLAN, Voice VLAN, GVRP, 802.1p Class of Service (CoS), and QoS queue scheduling



Troubleshooting

Real time traffic comparison charts, error group charts, and a convenient cable diagnostic test aides in rapid troubleshooting

Encryption

Features such as ACL, SSL, MAC/port filtering, 802.1X, TACACS+, and RADIUS are compatible with layered access controls

Monitoring

RMON, SNMP, SNMP Trap, and Port Mirroring support administrator monitoring solutions

Energy Savings

Up to 70% energy saving GREENnet technology

TRENDnet’s 10-Port Gigabit Web Smart PoE+ Switch, model TPE-1020WS, delivers a 20 Gbps switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots.

This IPv6 ready switch offers advanced traffic management, troubleshooting, access management controls, energy saving GREENnet, and monitoring features at a reduced cost.

    Standards
    • IEEE 802.1d
    • IEEE 802.1p
    • IEEE 802.1Q
    • IEEE 802.1s
    • IEEE 802.1w
    • IEEE 802.1X
    • IEEE 802.1ab
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3x
    • IEEE 802.3z
    • IEEE 802.3ab
    • IEEE 802.3ad
    • IEEE 802.3af
    • IEEE 802.3at
    • IEEE 802.3az

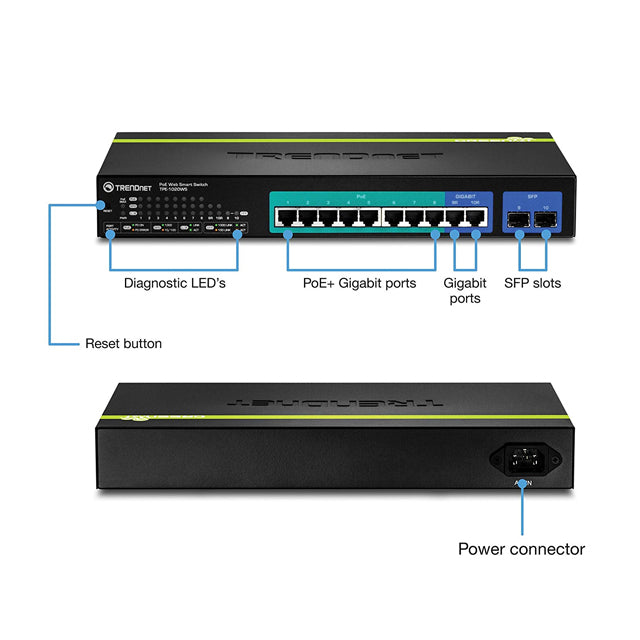

    Device Interface
    • 8 x Gigabit PoE+ ports (ports 1-8)
    • 2 x Gigabit Ethernet ports (ports 9-10)
    • 2 x Shared SFP slots (shared with ports 9-10)
    • LED indicators
    Data Transfer Rate
    • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
    • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
    • Gigabit Ethernet: 2000 Mbps (full duplex)
    Performance
    • Switch fabric: 20 Gbps
    • Ram buffer: 8 Mbits
    • MAC Address Table: 16K entries
    • Jumbo Frames: 10 Kbytes
    • HOL Blocking Prevention
    • Forwarding rates: 14.88 Mppst
    Management
    • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
    • SNMP v1, v2c, v3
    • RMON v1
    • Static Unicast MAC Address
    • Enable/disable 802.3az Power Saving
    • LLDP
    • Virtual Cable Test
    • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
    MIB
    • MIB II RFC 1213
    • Bridge MIB RFC 1493
    • Bridge MIB Extension RFC 2674
    • SNMPv2 MIB RFC 1907
    • Ethernet Interface MIB RFC 1643
    • Ethernet –like MIB RFC 2863
    • Interface Group MIB RFC2233
    • MIB Traps Convention RFC 1215
    • RMON MIB RFC 1757, RFC 2819
    • 802.1p MIB RFC 2674
    • RADIUS Client Authentication MIB RFC 2618
    • LLDP-MIB IEEE 802.1ab
    • Ping MIB RFC 2925, RFC 4560
    Spanning Tree
    • IEEE 802.1D STP (Spanning Tree protocol)
    • IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
    • IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
    Link Aggregation
    • Static Link Aggregation
    • 802.3ad Dynamic LACP
    Quality of Service (QoS)
    • 802.1p Class of Service (CoS)
    • DSCP (Differentiated Services Code Point)
    • Bandwidth Control per port
    • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
    VLAN
    • Multiple management VLAN assignment
    • Asymmetric VLAN
    • 802.1Q Tagged VLAN
    • Dynamic GVRP
    • Up to 256 VLAN groups, ID Range 1-4094
    • Private VLAN (Protected Ports)
    • Voice VLAN (10 user defined OUIs)
    Multicast
    • IGMP Snooping v1, v2, v3 (per VLAN)
    • Static Multicast Address
    • Up to 256 multicast entries
    Port Mirror
    • RX, TX, or Both
    • One to one
    • Many to one
    Security
    • 802.1X Port-Based Network Access Control, RADIUS, TACACS+
    • Local Dial In User Authentication
    • DHCP Snooping (per VLAN)
    • Loopback Detection
    • Duplicated Address Detection
    • Trusted Host
    • Denial of Service (DoS)
    ACL IPv4 L2-L4 & IPv6
    • MAC Address
    • VLAN ID
    • Ether Type (IPv4 only)
    • IP Protocol 0-255
    • TCP/UDP Port 1-65535
    • 802.1p
    • DSCP (IPv4 only)
    • IPv6 Address (IPv6 only)
    Compatibility
    • Optional Software Utility: Windows® 8.1 (32/64-bit), 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows® 2003/2008 Server (32/64-bit)
    Special Features
    • PoE+
    • Fanless design
    • IPv6
    • 802.3az power saving
    • Rack mountable
    Power
    • Input: 100 - 240 V AC, 50/60 Hz, internal power supply
    • Consumption: 92.3 Watts (Max)
    • PoE budget: 75 Watts
    Fan/Acoustics
    • Quantity: 0
    • Noise Level: 0 dB(A) (max.)
    MTBF
    • 545,798 hours
    Operating Temperature
    • 0 – 45 °C (32 - 113 °F)
    Operating Humidity
    • Max 90% non-condensing
    Dimensions
    • 330 x 183 x 44.45 mm (13 x 7.2 x 1.75 in.)
    • Rack mountable 1U height
    Weight
    • 1.9 kg (4.1 lbs.)
    Certifications
    • CE
    • FCC
